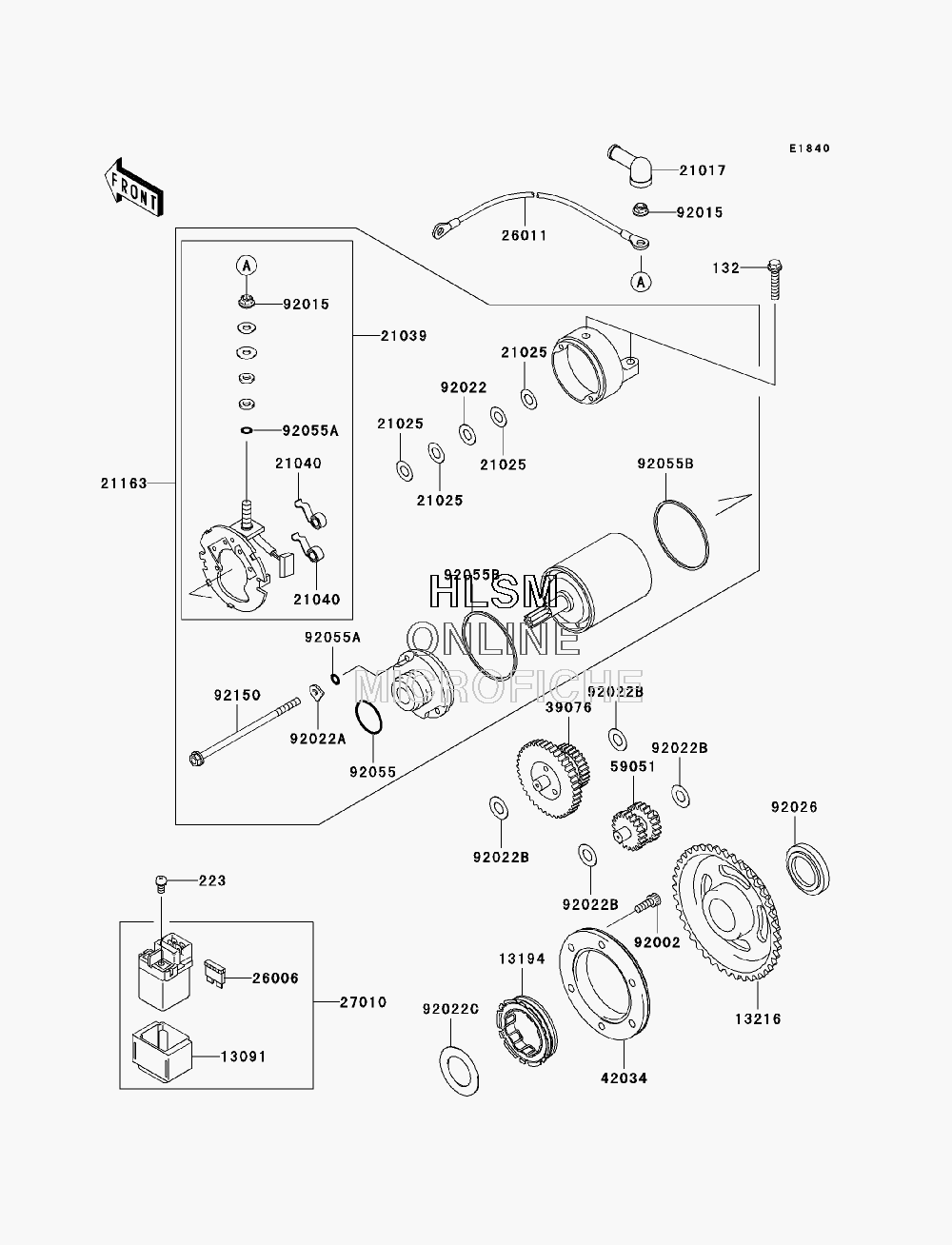

STARTER MOTOR для Kawasaki SUPER SHERPA (KL250G9F) - 2009 года выпуска`
-
№АртикулНазвание
-
132132BD0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
223223AA0510 SCREW-PAN-WS-CROS, 5X10SCREW-PAN-WS-CROS, 5X10
-
1309113091-1992 HOLDERHOLDER
-
1319413194-1091 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1321613216-1148 GEAR-COMP, ONEWAY CLUTCHGEAR-COMP, ONEWAY CLUTCH
-
2101721017-017 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
2102521025-011 WASHER, 9.1X18X0.2WASHER, 9.1X18X0.2
-
2103921039-1062 BRUSH, CARBONBRUSH, CARBON
-
2104021040-1057 SPRING-BRUSHSPRING-BRUSH
-
2116321163-1256 STARTER-ELECTRICSTARTER-ELECTRIC
-
2600626006-1051 FUSE, 20A-YFUSE, 20A-Y
-
2601126011-1604 WIRE-LEADWIRE-LEAD
-
2701027010-0004 SWITCHSWITCH
-
3907639076-1069 LIMITER, STARTER IDLER GEARLIMITER, STARTER IDLER GEAR
-
4203442034-1181 COUPLINGCOUPLING
-
5905159051-1304 GEAR-SPUR, IDLEGEAR-SPUR, IDLE
-
9200292002-1778 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202292022-1132 WASHER, 9.1X18X0.8WASHER, 9.1X18X0.8
-
92022A92022-1458 WASHER, LOCK, T=2.0WASHER, LOCK, T=2.0
-
92022B92022-1649 WASHER, 10.2X20X0.5WASHER, 10.2X20X0.5
-
92022C92022-1781 WASHER, 27.2X44X1.0WASHER, 27.2X44X1.0
-
9202692026-1450 SPACERSPACER
-
9205592055-1276 RING-ORING-O
-
92055A92055-1370 RING-O, 4.5X2.0RING-O, 4.5X2.0
-
92055B92055-1381 RING-O, STARTER MOTORRING-O, STARTER MOTOR
-
9215092150-1838 BOLT, STARTER MOTORBOLT, STARTER MOTOR
