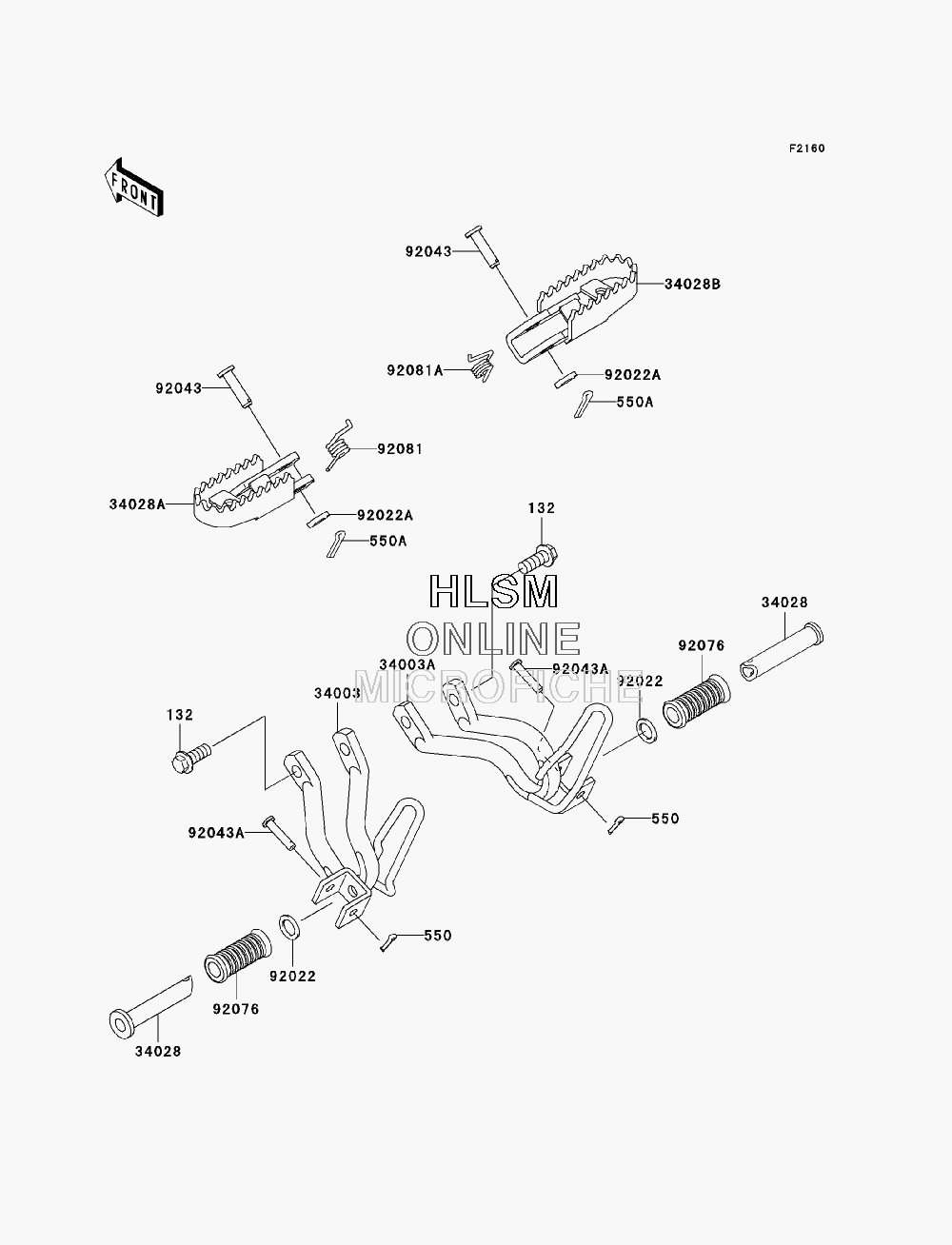

FOOTRESTS для Kawasaki SUPER SHERPA (KL250G9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 132
    132BB0820 BOLT-FLANGED-SMALL, 8X20
    BOLT-FLANGED-SMALL, 8X20
  • 550
    550AA2015 PIN-COTTER, 2.0X15
    PIN-COTTER, 2.0X15
  • 550A
    550AA2018 PIN-COTTER, 2.0X18
    PIN-COTTER, 2.0X18
  • 34003
    34003-1460-EZ HOLDER-STEP, REAR, LEFT HAND, C. GRAY (FOR HA)
    HOLDER-STEP, REAR, LEFT HAND, C. GRAY (FOR HA)
  • 34003A
    34003-1461-EZ HOLDER-STEP, REAR, RIGHT HAND, C. GRAY (FOR HA)
    HOLDER-STEP, REAR, RIGHT HAND, C. GRAY (FOR HA)
  • 34028
    34028-009 STEP, REAR
    STEP, REAR
  • 34028A
    34028-1431 STEP, FRONT, LEFT HAND
    STEP, FRONT, LEFT HAND
  • 34028B
    34028-1432 STEP, FRONT, RIGHT HAND
    STEP, FRONT, RIGHT HAND
  • 92022
    92022-1568 WASHER, 20X30X2.3
    WASHER, 20X30X2.3
  • 92022A
    92022-239 WASHER, 10.5X20X1
    WASHER, 10.5X20X1
  • 92043
    92043-1217 PIN, 10X35
    PIN, 10X35
  • 92043A
    92043-1464 PIN, 6X28
    PIN, 6X28
  • 92076
    92076-020 DAMPER
    DAMPER
  • 92081
    92081-1606 SPRING, STEP, LEFT HAND
    SPRING, STEP, LEFT HAND
  • 92081A
    92081-1607 SPRING, STEP, RIGHT HAND
    SPRING, STEP, RIGHT HAND
