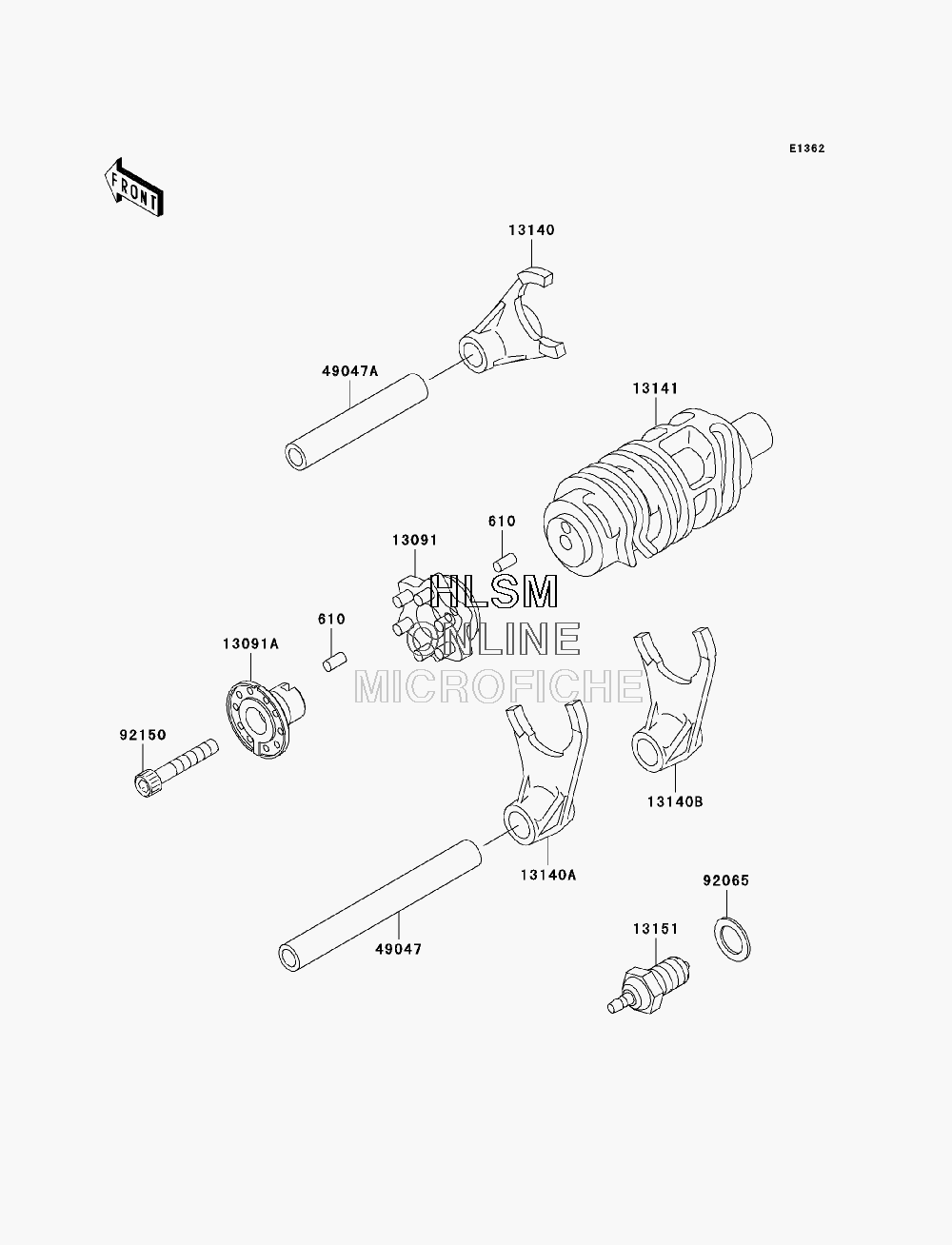

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki SUPER SHERPA (KL250G9F) - 2009 года выпуска`
-
№АртикулНазвание
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1309113091-1856 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
13091A13091-1862 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
1314013140-1216 FORK-SHIFT, 5TH & TOPFORK-SHIFT, 5TH & TOP
-
13140A13140-1217 FORK-SHIFT, 2ND & 3RDFORK-SHIFT, 2ND & 3RD
-
13140B13140-1218 FORK-SHIFT, LOW & 4THFORK-SHIFT, LOW & 4TH
-
1314113141-1198 DRUM-CHANGEDRUM-CHANGE
-
1315113151-1080 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
4904749047-1056 ROD-SHIFT, L=106.7ROD-SHIFT, L=106.7
-
49047A49047-1057 ROD-SHIFT, L=71.7ROD-SHIFT, L=71.7
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9215092150-1484 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
