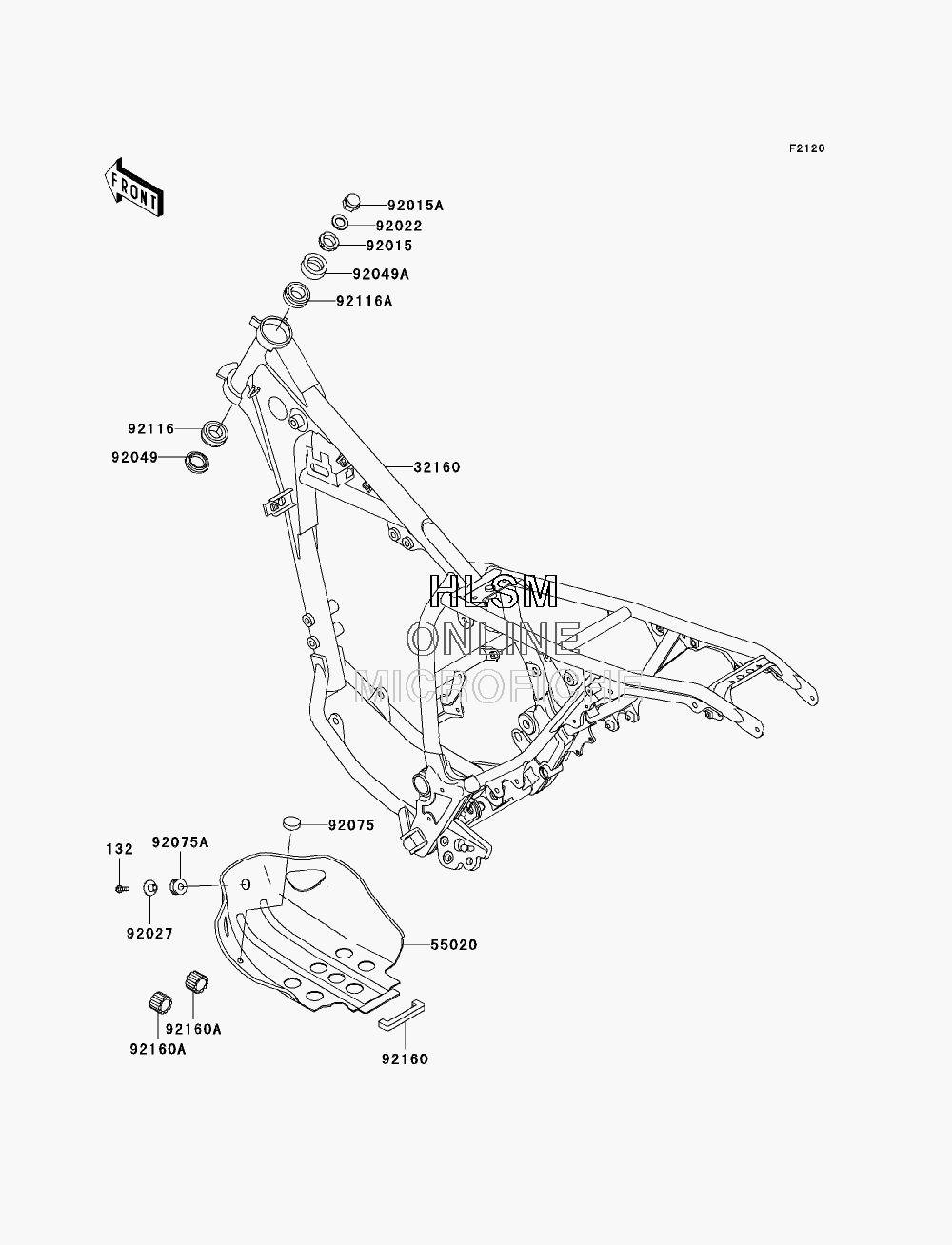

FRAME для Kawasaki SUPER SHERPA (KL250G9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 132
    132BA0620 BOLT-FLANGED-SMALL, 6X20
    BOLT-FLANGED-SMALL, 6X20
  • 32160
    32160-0141-EZ FRAME-COMP, C. GRAY (FOR HA)
    FRAME-COMP, C. GRAY (FOR HA)
  • 55020
    55020-1734 GUARD, ENGINE
    GUARD, ENGINE
  • 92015
    92015-1546 NUT, 25MM, T=12
    NUT, 25MM, T=12
  • 92015A
    92015-1867 NUT, STEERING STEM, 22MM
    NUT, STEERING STEM, 22MM
  • 92022
    92022-1873 WASHER, STEERING STEM
    WASHER, STEERING STEM
  • 92027
    92027-251 COLLAR, L=13.1
    COLLAR, L=13.1
  • 92049
    92049-1162 SEAL-OIL, XMHE36X52X4J
    SEAL-OIL, XMHE36X52X4J
  • 92049A
    92049-1214 SEAL-OIL, STEERING STEM
    SEAL-OIL, STEERING STEM
  • 92075
    92075-005 DAMPER
    DAMPER
  • 92075A
    92075-1690 DAMPER
    DAMPER
  • 92116
    92116-1009 BEARING-ROLLER, HR320/28XJ
    BEARING-ROLLER, HR320/28XJ
  • 92116A
    92116-1052 BEARING-ROLLER, HICAP 32005JR
    BEARING-ROLLER, HICAP 32005JR
  • 92160
    92160-1835 DAMPER
    DAMPER
  • 92160A
    92160-1884 DAMPER
    DAMPER
