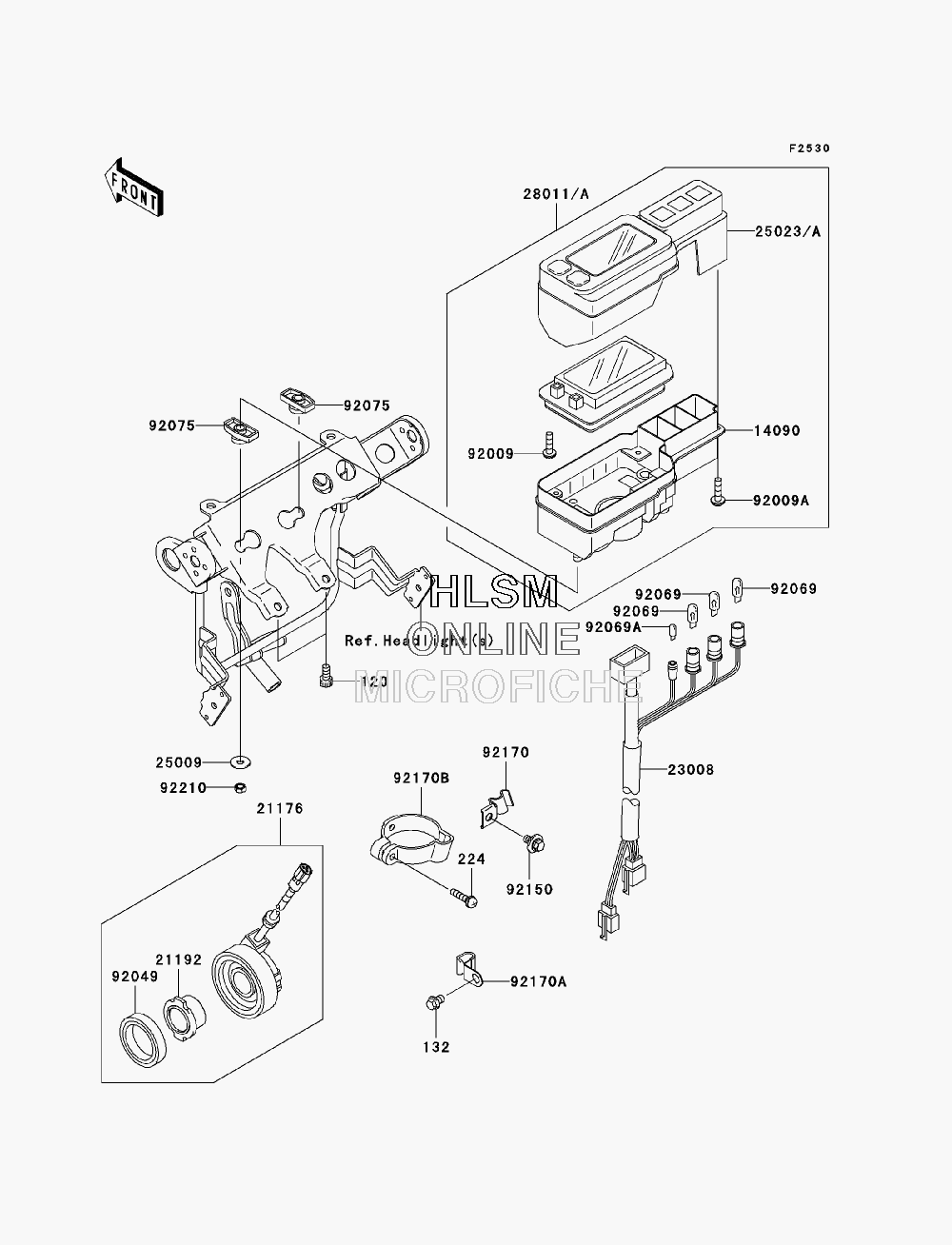

METER(S) для Kawasaki SUPER SHERPA (KL250G9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 120
    120CA0612 BOLT-SOCKET, 6X12
    BOLT-SOCKET, 6X12
  • 132
    132BA0608 BOLT-FLANGED-SMALL, 6X8
    BOLT-FLANGED-SMALL, 6X8
  • 224
    224AA0520 SCREW-PAN-WP-CROSS, 5X20
    SCREW-PAN-WP-CROSS, 5X20
  • 14090
    14090-1903 COVER, METER CASE, LWR
    COVER, METER CASE, LWR
  • 21176
    21176-0012 SENSOR, SPEED
    SENSOR, SPEED
  • 21192
    21192-0001 MAGNET, SPEED SENSOR
    MAGNET, SPEED SENSOR
  • 23008
    23008-1579 SOCKET-ASSY, METER
    SOCKET-ASSY, METER
  • 25009
    25009-004 WASHER, 5.2X16X1.2
    WASHER, 5.2X16X1.2
  • 25023
    25023-0008 COVER-METER CASE, UPP (CANADA ONLY)
    COVER-METER CASE, UPP (CANADA ONLY)
  • 25023A
    25023-1250 COVER-METER CASE, UPP (USA ONLY)
    COVER-METER CASE, UPP (USA ONLY)
  • 28011
    28011-0019 METER, DIGITAL (CANADA ONLY)
    METER, DIGITAL (CANADA ONLY)
  • 28011A
    28011-1195 METER, DIGITAL, MPH (USA ONLY)
    METER, DIGITAL, MPH (USA ONLY)
  • 92009
    92009-1028 SCREW, TAPPING, 3X12
    SCREW, TAPPING, 3X12
  • 92009A
    92009-1592 SCREW, TAPPING, 3X14
    SCREW, TAPPING, 3X14
  • 92049
    92049-1172 SEAL-OIL, METER GEAR CASE
    SEAL-OIL, METER GEAR CASE
  • 92069
    92069-1007 BULB, 12V 3.4W, T10
    BULB, 12V 3.4W, T10
  • 92069A
    92069-1068 BULB, 12V 3W, T6.5
    BULB, 12V 3W, T6.5
  • 92075
    92075-1581 DAMPER, METER BRACKET
    DAMPER, METER BRACKET
  • 92150
    92150-1435 BOLT, 6X12
    BOLT, 6X12
  • 92170
    92170-1782 CLAMP, METER HARNESS
    CLAMP, METER HARNESS
  • 92170A
    92170-1804 CLAMP
    CLAMP
  • 92170B
    92170-1852 CLAMP, METER HARNESS
    CLAMP, METER HARNESS
  • 92210
    92210-1124 NUT, 5MM
    NUT, 5MM
