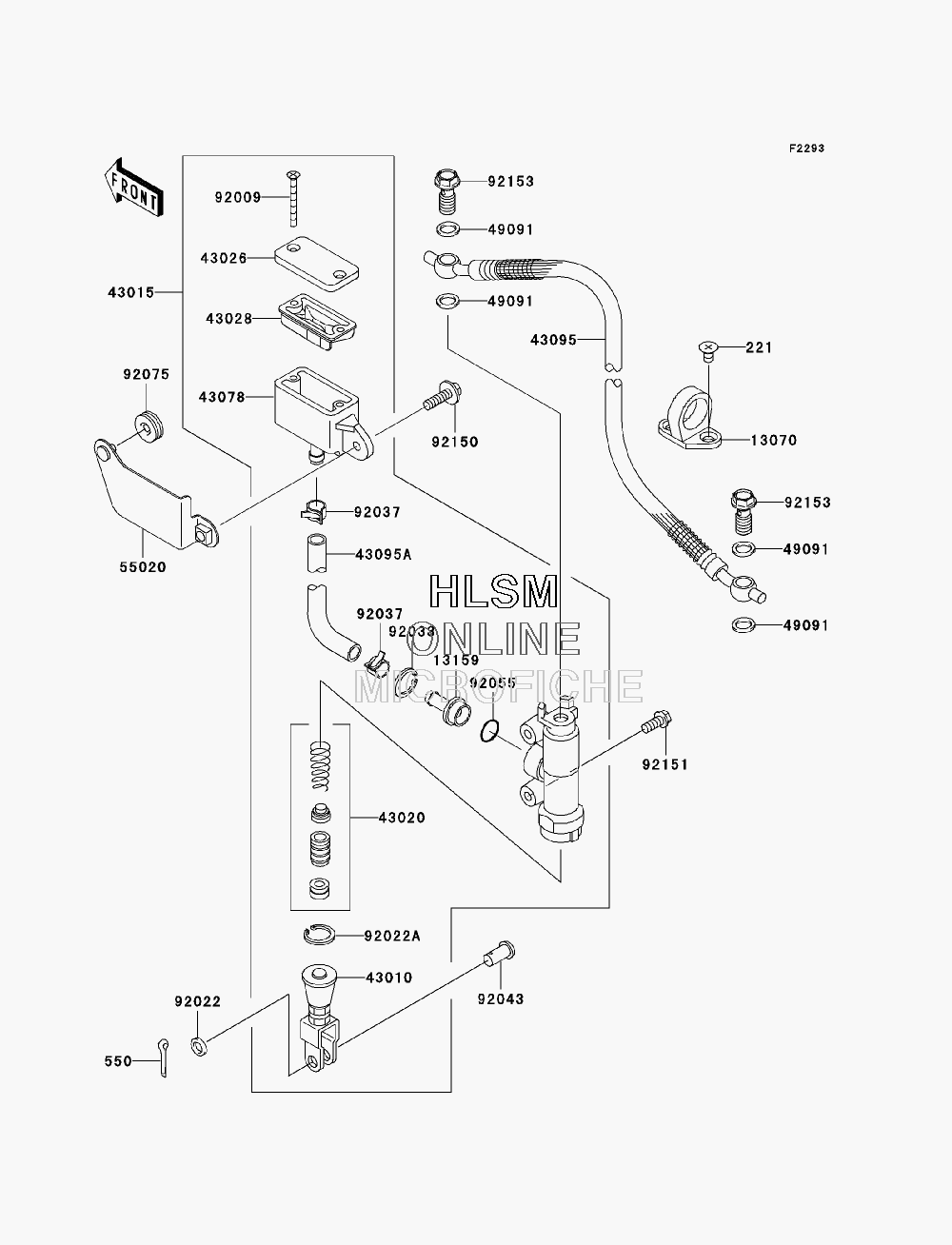

BRAKE - MASTER CYLINDER - REAR для Kawasaki SUPER SHERPA (KL250G9F) - 2009 года выпуска`
-
№АртикулНазвание
-
221221AA0610 SCREW-CSK-CROS, 6X10SCREW-CSK-CROS, 6X10
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
1307013070-1322 GUIDE, HOSEGUIDE, HOSE
-
1315913159-1065 CONNECTORCONNECTOR
-
4301043010-1068 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-1707 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1075 CAP-BRAKECAP-BRAKE
-
4302843028-1067 DIAPHRAGMDIAPHRAGM
-
4307843078-1189 RESERVOIRRESERVOIR
-
4309543095-0162 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
43095A43095-1065 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
5502055020-1610 GUARD, REAR MASTER RESERVOIRGUARD, REAR MASTER RESERVOIR
-
9200992009-1596 SCREW, 4X40SCREW, 4X40
-
9202292022-1028 WASHER, 8.5X13X1WASHER, 8.5X13X1
-
92022A92022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9203792037-1710 CLAMPCLAMP
-
9204392043-0004 PINPIN
-
9205592055-1251 RING-O, MASTER CYLINDERRING-O, MASTER CYLINDER
-
9207592075-1629 DAMPERDAMPER
-
9215092150-1481 BOLT, FLANGED, 6X22BOLT, FLANGED, 6X22
-
9215192151-1423 BOLT, 6X14BOLT, 6X14
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
