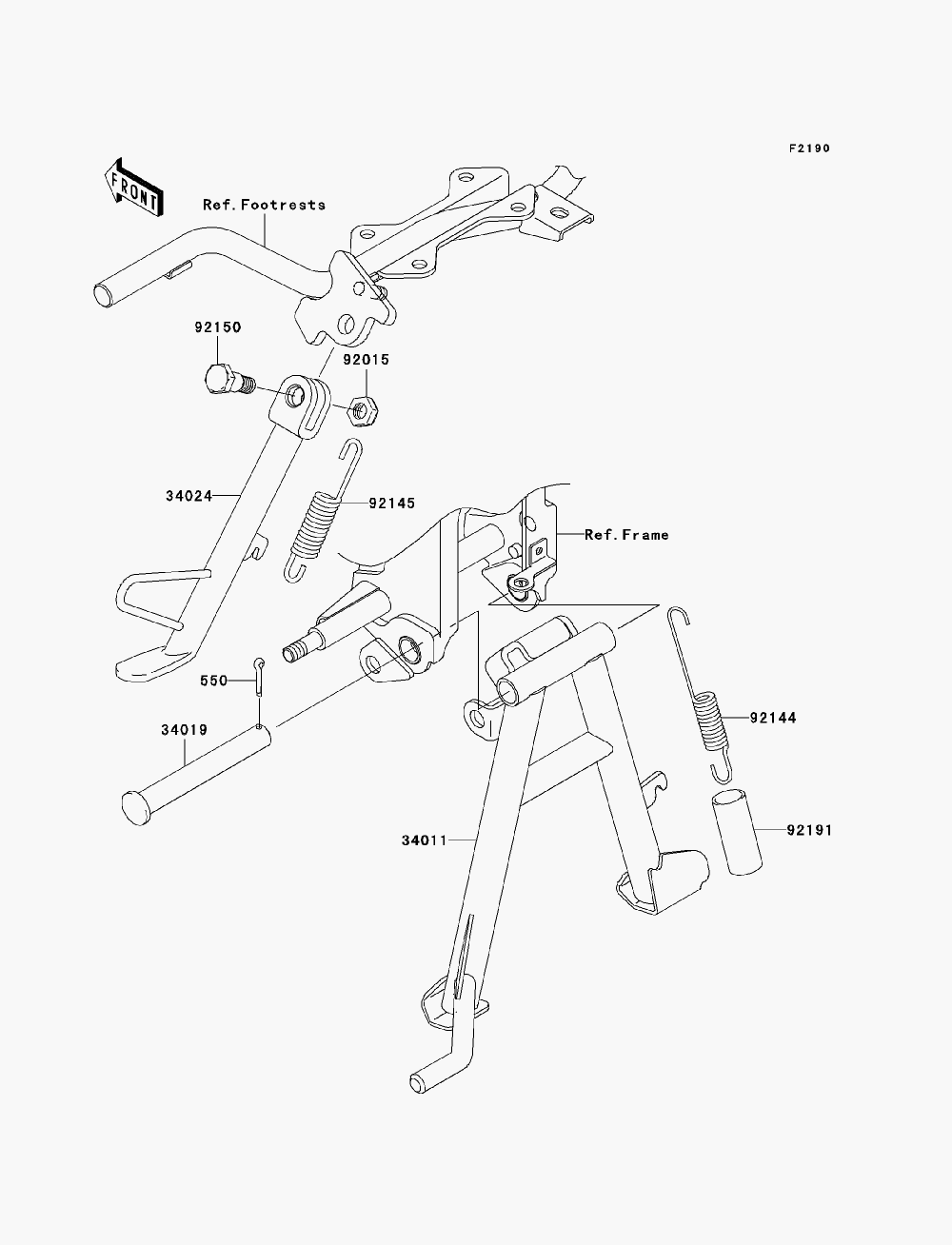

STAND(S) для Kawasaki AN112 (AN112D8F) - 2008 года выпуска
-
№АртикулНазвание
-
550550AA3030 PIN-COTTER, 3.0X30PIN-COTTER, 3.0X30
-
3401134011-0003 STAND-CENTERSTAND-CENTER
-
3401934019-1054 SHAFT-STAND, CNTSHAFT-STAND, CNT
-
3402434024-0010 STAND-SIDESTAND-SIDE
-
9201592015-1962 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9214492144-1385 SPRING, CENTER STANDSPRING, CENTER STAND
-
9214592145-0106 SPRING, STANDSPRING, STAND
-
9215092150-1545 BOLT, SIDE STANDBOLT, SIDE STAND
-
9219192191-1020 TUBE, 16X19X55TUBE, 16X19X55
