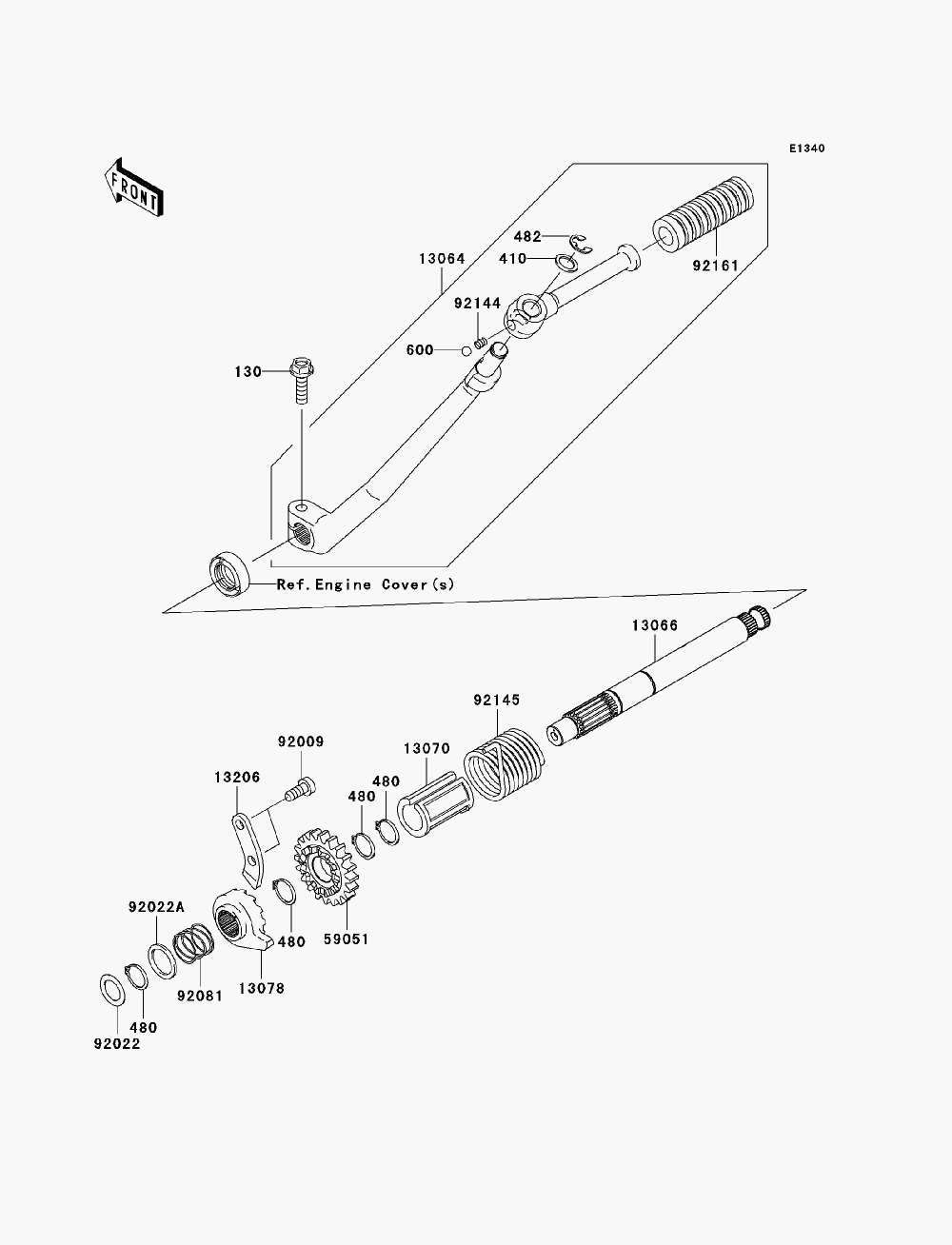

KICKSTARTER MECHANISM для Kawasaki AN112 (AN112D8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130CA0622 BOLT-FLANGED, 6X22BOLT-FLANGED, 6X22
-
410410AA1000 WASHER-PLAIN-SMALL, 10MMWASHER-PLAIN-SMALL, 10MM
-
480480J1600 CIRCLIP-TYPE-C, 16MMCIRCLIP-TYPE-C, 16MM
-
482482EA8000 CIRCLIP-TYPE-E, 8MMCIRCLIP-TYPE-E, 8MM
-
600600A0800 BALL-STEEL, 1/4"BALL-STEEL, 1/4"
-
1306413064-1203 LEVER-ASSY-KICKLEVER-ASSY-KICK
-
1306613066-1108 SHAFT-KICKSHAFT-KICK
-
1307013070-1035 GUIDE, KICK SHAFTGUIDE, KICK SHAFT
-
1307813078-1069 RATCHETRATCHET
-
1320613206-1006 GUIDE-KICKGUIDE-KICK
-
5905159051-1404 GEAR-SPUR, KICK STARTER, 22TGEAR-SPUR, KICK STARTER, 22T
-
9200992009-1104 SCREW, TAPPINGSCREW, TAPPING
-
9202292022-1224 WASHER, 13.2X20X0.5WASHER, 13.2X20X0.5
-
92022A92022-315 WASHER, 16.8X22X0.5WASHER, 16.8X22X0.5
-
9208192081-122 SPRING, RATCHETSPRING, RATCHET
-
9214492144-1791 SPRING, KICK PEDALSPRING, KICK PEDAL
-
9214592145-0482 SPRING, KICK STARTERSPRING, KICK STARTER
-
9216192161-1250 DAMPERDAMPER
