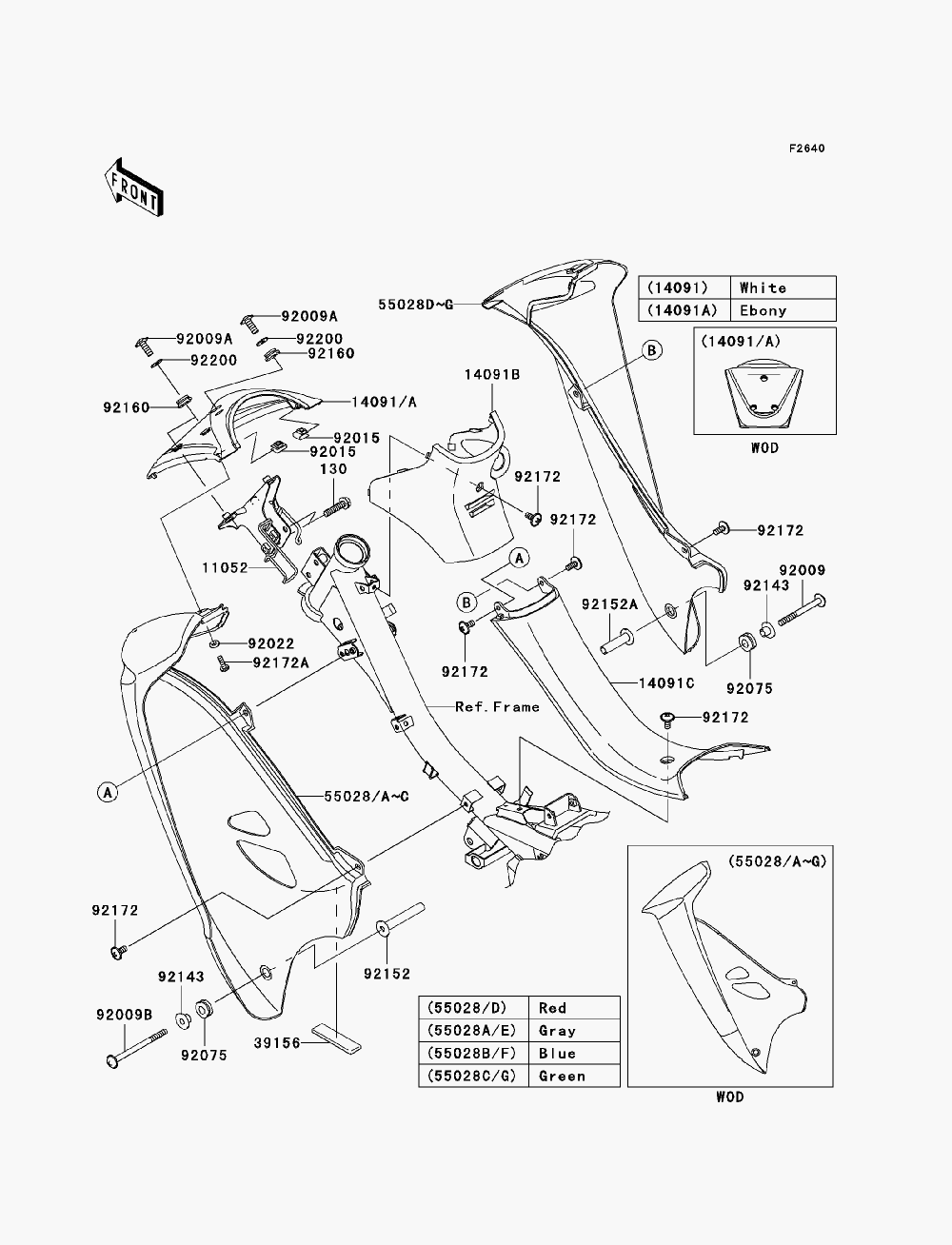

COWLING - LOWERS для Kawasaki AN112 (AN112D8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 11052
    11052-1965 BRACKET, FRONT COVER
    BRACKET, FRONT COVER
  • 14091
    14091-1414-14H COVER, FRONT, P.C.WHITE (FOR 20T)
    COVER, FRONT, P.C.WHITE (FOR 20T)
  • 14091A
    14091-1414-20A COVER, FRONT, EBONY (FOR 14E;14J;777)
    COVER, FRONT, EBONY (FOR 14E;14J;777)
  • 14091B
    14091-1415-6Z COVER, STEP THROUGH, FRONT, F.BLACK
    COVER, STEP THROUGH, FRONT, F.BLACK
  • 14091C
    14091-1416-6Z COVER, STEP THROUGH, REAR, F.BLACK
    COVER, STEP THROUGH, REAR, F.BLACK
  • 39156
    39156-0041 PAD, COWLING
    PAD, COWLING
  • 55028
    55028-1423-14E COWLING, LEG SHIELD, LEFT HAND, C.F.RED (FOR 14E)
    COWLING, LEG SHIELD, LEFT HAND, C.F.RED (FOR 14E)
  • 55028A
    55028-1423-14J COWLING, LEG SHIELD, LEFT HAND, M.B.GRAY (FOR 14J)
    COWLING, LEG SHIELD, LEFT HAND, M.B.GRAY (FOR 14J)
  • 55028B
    55028-1423-20T COWLING, LEG SHIELD, LEFT HAND, M.L.BLUE (FOR 20T)
    COWLING, LEG SHIELD, LEFT HAND, M.L.BLUE (FOR 20T)
  • 55028C
    55028-1423-777 COWLING, LEG SHIELD, LEFT HAND, L.GREEN (FOR 777)
    COWLING, LEG SHIELD, LEFT HAND, L.GREEN (FOR 777)
  • 55028D
    55028-1424-14E COWLING, LEG SHIELD, RIGHT HAND, C.F.RED (FOR 14E)
    COWLING, LEG SHIELD, RIGHT HAND, C.F.RED (FOR 14E)
  • 55028E
    55028-1424-14J COWLING, LEG SHIELD, RIGHT HAND, M.B.GRAY (FOR 14J)
    COWLING, LEG SHIELD, RIGHT HAND, M.B.GRAY (FOR 14J)
  • 55028F
    55028-1424-20T COWLING, LEG SHIELD, RIGHT HAND, M.L.BLUE (FOR 20T)
    COWLING, LEG SHIELD, RIGHT HAND, M.L.BLUE (FOR 20T)
  • 55028G
    55028-1424-777 COWLING, LEG SHIELD, RIGHT HAND, L.GREEN (FOR 777)
    COWLING, LEG SHIELD, RIGHT HAND, L.GREEN (FOR 777)
  • 92009
    92009-1520 SCREW, 6X65
    SCREW, 6X65
  • 92009A
    92009-1776 SCREW, 6X16
    SCREW, 6X16
  • 92009B
    92009-1983 SCREW, 6X87
    SCREW, 6X87
  • 130
    130BB0835 BOLT-FLANGED, 8X35
    BOLT-FLANGED, 8X35
  • 92015
    92015-1627 NUT, 5MM
    NUT, 5MM
  • 92022
    92022-1521 WASHER, NYLON, 5.3X11.5X1.5
    WASHER, NYLON, 5.3X11.5X1.5
  • 92075
    92075-1634 DAMPER
    DAMPER
  • 92143
    92143-1016 COLLAR, L=9.6
    COLLAR, L=9.6
  • 92152
    92152-1364 COLLAR, L=64.8
    COLLAR, L=64.8
  • 92152A
    92152-1376 COLLAR, L=40
    COLLAR, L=40
  • 92160
    92160-1864 DAMPER
    DAMPER
  • 92172
    92172-0004 SCREW, 6X14
    SCREW, 6X14
  • 92172A
    92172-1071 SCREW, 5X16
    SCREW, 5X16
  • 92200
    92200-1643 WASHER, 6.2X18X1.2
    WASHER, 6.2X18X1.2
