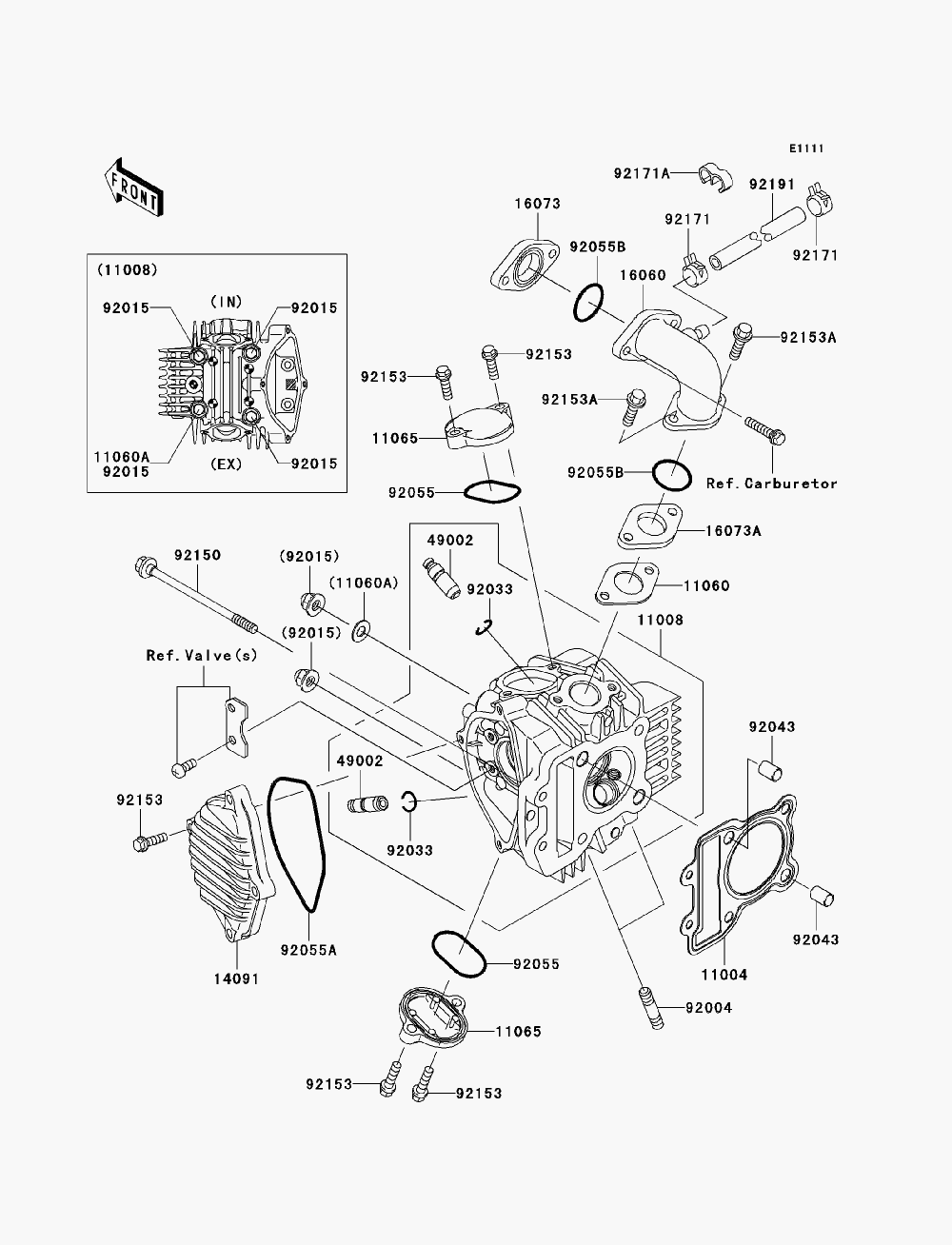

CYLINDER HEAD для Kawasaki AN112 (AN112D8F) - 2008 года выпуска`
-
№АртикулНазвание
-
1100411004-1338 GASKET-HEADGASKET-HEAD
-
1100811008-1431 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1106011060-1753 GASKET, INTAKE PIPEGASKET, INTAKE PIPE
-
11060A11060-1862 GASKETGASKET
-
1106511065-1177 CAP, VALVE ADJUSTINGCAP, VALVE ADJUSTING
-
1409114091-1447 COVER, CAMSHAFTCOVER, CAMSHAFT
-
1606016060-1079 PIPE-INTAKEPIPE-INTAKE
-
1607316073-1102 INSULATOR, CARBURETORINSULATOR, CARBURETOR
-
16073A16073-1108 INSULATOR, HEADINSULATOR, HEAD
-
4900249002-1130 GUIDE-VALVEGUIDE-VALVE
-
9200492004-1234 STUD, 8X28.5STUD, 8X28.5
-
9201592015-1151 NUT, CAP, 8MMNUT, CAP, 8MM
-
9203392033-1247 RING-SNAPRING-SNAP
-
9204392043-0100 PIN, 8.2X10X14PIN, 8.2X10X14
-
9205592055-1231 RING-O, ADJUST CAPRING-O, ADJUST CAP
-
92055A92055-1527 RING-O, 91X2.5RING-O, 91X2.5
-
92055B92055-1528 RING-O, 25.5X2.0RING-O, 25.5X2.0
-
9215092150-1761 BOLT, 6X106BOLT, 6X106
-
9215392153-1184 BOLT, 6X20BOLT, 6X20
-
92153A92153-1187 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
9217192171-1051 CLAMPCLAMP
-
92171A92171-1184 CLAMPCLAMP
-
9219192191-1734 TUBE, 4.5X9.5X410 WHITETUBE, 4.5X9.5X410 WHITE
