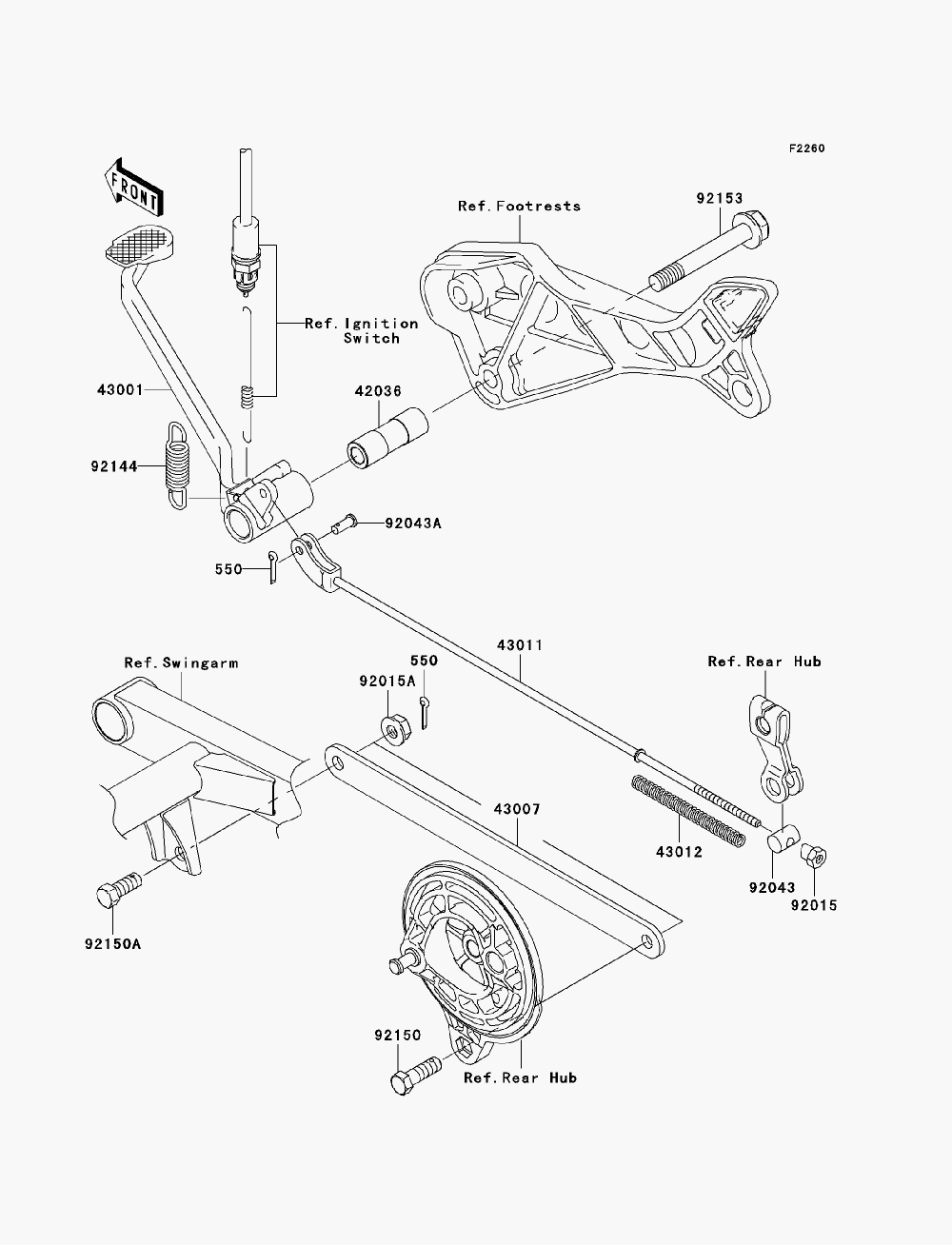

BRAKE PEDAL для Kawasaki AN112 (AN112D8F) - 2008 года выпуска
-
№АртикулНазвание
-
550550AA2018 PIN-COTTER, 2.0X18PIN-COTTER, 2.0X18
-
4203642036-1332 SLEEVESLEEVE
-
4300143001-1443 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
4300743007-1202 ROD-TORQUEROD-TORQUE
-
4301143011-1177 ROD-BRAKEROD-BRAKE
-
4301243012-001 SPRING, BRAKE RODSPRING, BRAKE ROD
-
9201592015-042 NUT, BRAKE RODNUT, BRAKE ROD
-
92015A92015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9204392043-0065 PIN, BRAKE RODPIN, BRAKE ROD
-
92043A92043-1542 PIN, 6X12.8PIN, 6X12.8
-
9214492144-1910 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9215092150-1872 BOLT, 10X32BOLT, 10X32
-
92150A92150-1873 BOLT, 10X25BOLT, 10X25
-
9215392153-0820 BOLT, FLANGED, 12X88BOLT, FLANGED, 12X88
