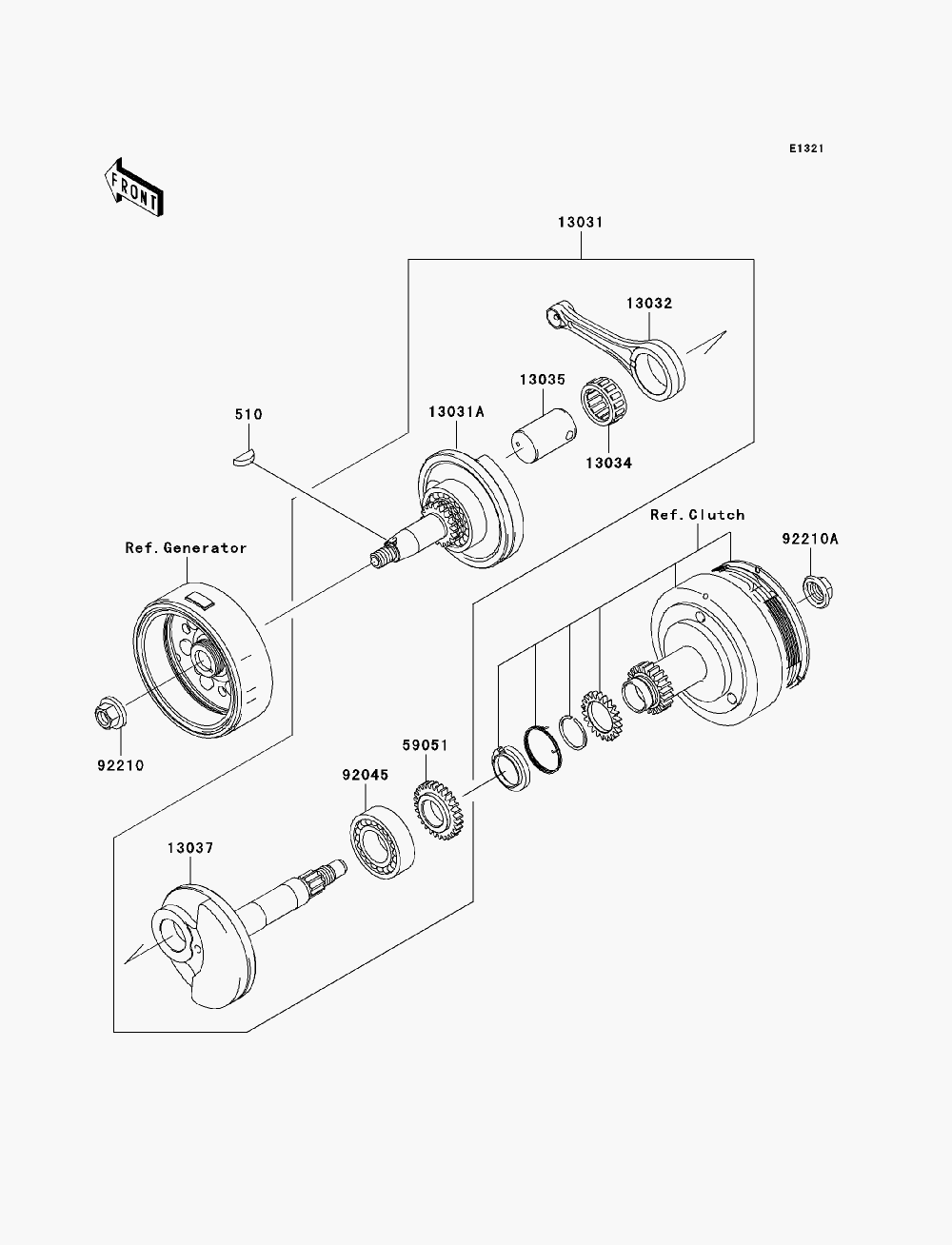

CRANKSHAFT для Kawasaki AN112 (AN112D8F) - 2008 года выпуска
-
№АртикулНазвание
-
510510A3200 KEY-WOODRUFFKEY-WOODRUFF
-
1303113031-0011 CRANKSHAFT-COMP, LEFT HANDCRANKSHAFT-COMP, LEFT HAND
-
13031A13031-0082 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1303213032-1277 ROD-CONNECTING, NGROD-CONNECTING, NG
-
1303413034-0010 BEARING-BIG END, KT 263314EGC06BEARING-BIG END, KT 263314EGC06
-
1303513035-1092 PIN-CRANKPIN-CRANK
-
1303713037-0128 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
5905159051-1402 GEAR-SPURGEAR-SPUR
-
9204592045-1293 BEARING-BALL, TMB205CJR2C2BEARING-BALL, TMB205CJR2C2
-
9221092210-0176 NUT, 12MMNUT, 12MM
-
92210A92210-1374 NUT, 14MMNUT, 14MM
