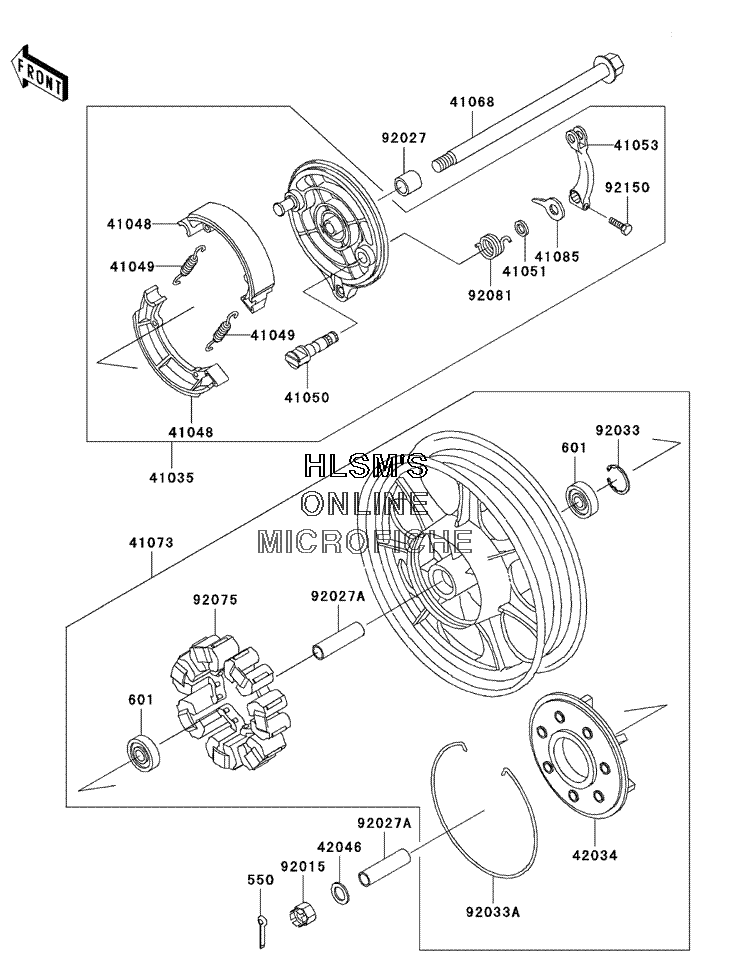

WHEEL - REAR W/ CHAIN для Kawasaki Vulcan 750 - 2006 года выпуска

  • №
    Артикул
    Название
  • 550
    550D4035 PIN, COTTER, 4.0X35
    PIN, COTTER, 4.0X35
  • 601
    601B6303UU BEARING, BALL, #6303UUC3
    BEARING, BALL, #6303UUC3
  • 41035
    41035-1288 PANEL, ASSY, BRAKE, REAR
    PANEL, ASSY, BRAKE, REAR
  • 41048
    41048-1070 SHOE, BRAKE
    SHOE, BRAKE
  • 41049
    41049-012 SPRING, BRAKE SHOE
    SPRING, BRAKE SHOE
  • 41050
    41050-1059 CAM, BRAKE
    CAM, BRAKE
  • 41051
    41051-003 SEAL, BRAKE CAM
    SEAL, BRAKE CAM
  • 41053
    41053-1063 LEVER, BRAKE CAM
    LEVER, BRAKE CAM
  • 41068
    41068-1191 AXLE, REAR
    AXLE, REAR
  • 41073
    41073-1590-CX WHEEL, ASSY, REAR (SILVER NO.1)
    WHEEL, ASSY, REAR (SILVER NO.1)
  • 41085
    41085-1054 INDICATOR
    INDICATOR
  • 42034
    42034-1029 COUPLING, REAR HUB
    COUPLING, REAR HUB
  • 42046
    42046-009 WASHER, 17.3X32X3.2
    WASHER, 17.3X32X3.2
  • 92015
    92015-1951 NUT, CASTLE, 16MM
    NUT, CASTLE, 16MM
  • 92027
    92027-1486 COLLAR
    COLLAR
  • 92027A
    92027-1867 COLLAR, 17.2X25X74
    COLLAR, 17.2X25X74
  • 92033
    92033-1042 RING, SNAP, 47MM
    RING, SNAP, 47MM
  • 92033A
    92033-1075 RING, SNAP, 194MM
    RING, SNAP, 194MM
  • 92075
    92075-1372 DAMPER, REAR HUB SHOCK
    DAMPER, REAR HUB SHOCK
  • 92081
    92081-1816 SPRING, BRAKE CAM LEVER RETURN
    SPRING, BRAKE CAM LEVER RETURN
  • 92150
    92150-1797 BOLT, 8X27
    BOLT, 8X27
