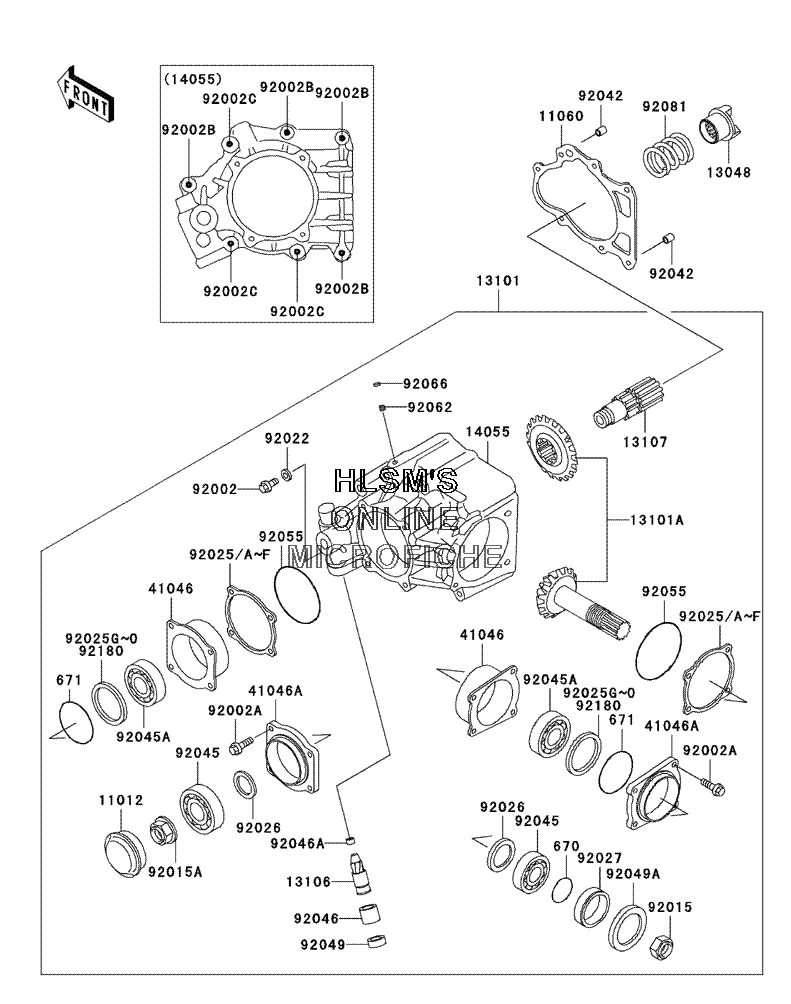

FRONT BEVEL GEAR для Kawasaki Vulcan 750 - 2006 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1672 CAP, FRONTONT BEVEL
    CAP, FRONTONT BEVEL
  • 11060
    11060-1086 GASKET, GEAR CASE
    GASKET, GEAR CASE
  • 13048
    13048-1058 CAM, DAMPER
    CAM, DAMPER
  • 13101
    13101-1094 GEAR, ASSY, BEVEL, FRONT
    GEAR, ASSY, BEVEL, FRONT
  • 13101A
    13101-5048 GEAR, ASSY, BEVEL, FRONT
    GEAR, ASSY, BEVEL, FRONT
  • 13106
    13106-1068 SHAFT, CLUTCH RELEASE
    SHAFT, CLUTCH RELEASE
  • 13107
    13107-1166 SHAFT, BEVEL GEAR, FRONT
    SHAFT, BEVEL GEAR, FRONT
  • 14055
    14055-1068 CASE, GEAR, BEVEL, FRONT
    CASE, GEAR, BEVEL, FRONT
  • 41046
    41046-1073 HOUSING, BEARING, BEVEL, FRONT
    HOUSING, BEARING, BEVEL, FRONT
  • 41046A
    41046-1090 HOUSING, BEARING, BEVEL, FRONT
    HOUSING, BEARING, BEVEL, FRONT
  • 92002
    92002-1357 BOLT, FLANGED, SMALL, 6X7X2.5
    BOLT, FLANGED, SMALL, 6X7X2.5
  • 92002A
    92002-1623 BOLT, 6X32
    BOLT, 6X32
  • 92002B
    92002-1624 BOLT, 6X85
    BOLT, 6X85
  • 92002C
    92002-1625 BOLT, FLANGED, SMALL, M6X95
    BOLT, FLANGED, SMALL, M6X95
  • 92015
    92015-1480 NUT, 25MM
    NUT, 25MM
  • 92015A
    92015-1543 NUT
    NUT
  • 92022
    92022-077 WASHER, 6.1X12X1
    WASHER, 6.1X12X1
  • 92025
    92025-1258 SHIM, T=0.10
    SHIM, T=0.10
  • 92025A
    92025-1259 SHIM, T=0.15
    SHIM, T=0.15
  • 92025B
    92025-1260 SHIM, T=0.20
    SHIM, T=0.20
  • 92025C
    92025-1261 SHIM, T=0.30
    SHIM, T=0.30
  • 92025D
    92025-1262 SHIM, T=0.60
    SHIM, T=0.60
  • 92025E
    92025-1263 SHIM, T=0, 90
    SHIM, T=0, 90
  • 92025F
    92025-1264 SHIM, T=1.20
    SHIM, T=1.20
  • 92025G
    92025-1669 SHIM, 52.5X61.5X0.15
    SHIM, 52.5X61.5X0.15
  • 92025H
    92025-1670 SHIM, 52.5X61.5X0.18
    SHIM, 52.5X61.5X0.18
  • 92025I
    92025-1671 SHIM, 52.5X61.5X0.8
    SHIM, 52.5X61.5X0.8
  • 92025J
    92025-1672 SHIM, 52.5X61.5X0.9
    SHIM, 52.5X61.5X0.9
  • 92025K
    92025-1673 SHIM, 52.5X61.5X1.0
    SHIM, 52.5X61.5X1.0
  • 92025L
    92025-1674 SHIM, 52.5X61.5X1.1
    SHIM, 52.5X61.5X1.1
  • 92025M
    92025-1675 SHIM, 52.5X61.5X1.2
    SHIM, 52.5X61.5X1.2
  • 92025N
    92025-1676 SHIM, 52.5X61.5X1.3
    SHIM, 52.5X61.5X1.3
  • 92025O
    92025-1677 SHIM, 52.5X61.5X1.4
    SHIM, 52.5X61.5X1.4
  • 92026
    92026-1533 SPACER, 25.3X36X2.0
    SPACER, 25.3X36X2.0
  • 92027
    92027-1843 COLLAR
    COLLAR
  • 92042
    92042-007 PIN, DOWEL, 6.3X8X14
    PIN, DOWEL, 6.3X8X14
  • 92045
    92045-1115 BEARING, BALL, 6205
    BEARING, BALL, 6205
  • 92045A
    92045-1147 BEARING, BALL, 5305SH2CD2
    BEARING, BALL, 5305SH2CD2
  • 92046
    92046-037 BEARING, NEEDLE, 7E, HK1412
    BEARING, NEEDLE, 7E, HK1412
  • 92046A
    92046-1142 BEARING, NEEDLE, HK0709
    BEARING, NEEDLE, HK0709
  • 670
    670B2021 O-RING, 21MM
    O-RING, 21MM
  • 671
    671B2565 O-RING, 65MM
    O-RING, 65MM
  • 92049
    92049-1037 SEAL, OIL, TC14244.8
    SEAL, OIL, TC14244.8
  • 92049A
    92049-1038 SEAL, OIL, TC35527
    SEAL, OIL, TC35527
  • 92055
    92055-1306 O-RING
    O-RING
  • 92062
    92062-1079 NOZZLE, 6X8 (BLACK)
    NOZZLE, 6X8 (BLACK)
  • 92066
    92066-1227 PLUG, PT1/8X7
    PLUG, PT1/8X7
  • 92081
    92081-1552 SPRING
    SPRING
  • 92180
    92180-1115 SHIM, 52.5X61.5X0.10
    SHIM, 52.5X61.5X0.10
