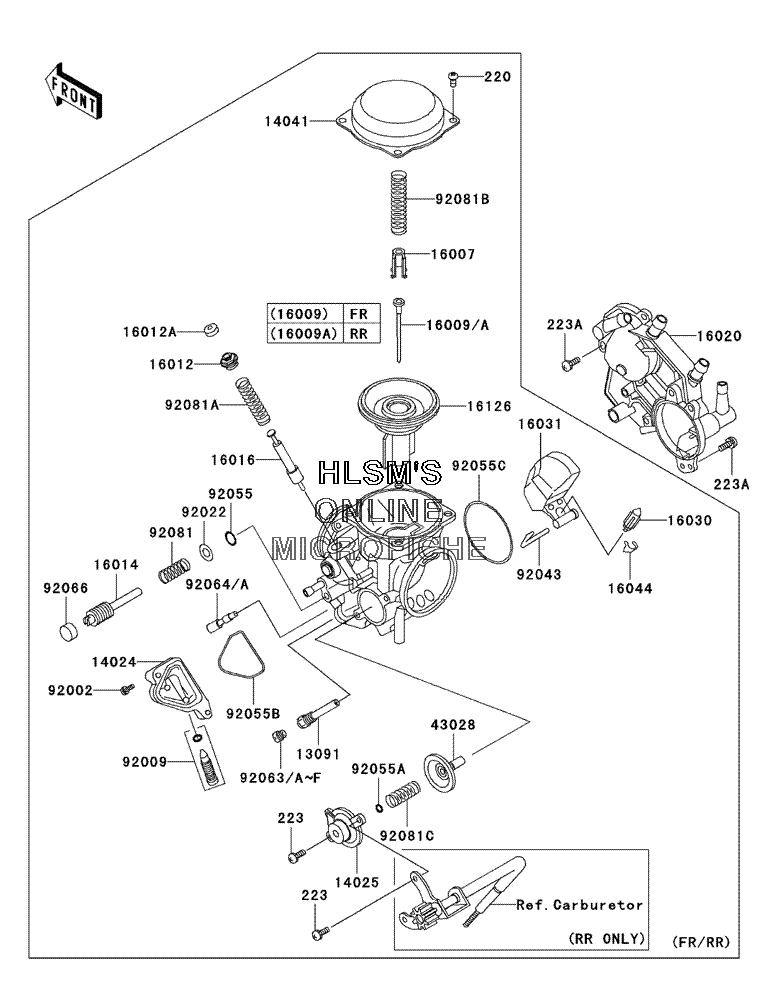

CARBURETOR PARTS для Kawasaki Vulcan 750 - 2006 года выпуска

  • №
    Артикул
    Название
  • 13091
    13091-1384 HOLDER, NEEDLE JET
    HOLDER, NEEDLE JET
  • 14024
    14024-1094 COVER, DRAIN
    COVER, DRAIN
  • 14025
    14025-1903 COVER, AIR CUT VALVE
    COVER, AIR CUT VALVE
  • 14041
    14041-1061 COVER, COMP, MIXING, INSIDE
    COVER, COMP, MIXING, INSIDE
  • 16007
    16007-1117 SEAT, SPRING, VALVE
    SEAT, SPRING, VALVE
  • 16009
    16009-1327 NEEDLE, JET, N53A, FR
    NEEDLE, JET, N53A, FR
  • 16009A
    16009-1328 NEEDLE, JET, N53B, REAR
    NEEDLE, JET, N53B, REAR
  • 16012
    16012-1051 CAP, STARTER PLUNGER
    CAP, STARTER PLUNGER
  • 16012A
    16012-1052 CAP, STARTER PLUNGER
    CAP, STARTER PLUNGER
  • 16014
    16014-1054 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1066 PLUNGER, STARTER
    PLUNGER, STARTER
  • 16020
    16020-1051 CHAMBER, FLOAT, COMP
    CHAMBER, FLOAT, COMP
  • 16030
    16030-1057 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1059 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP, FLOAT VALVE
    CLAMP, FLOAT VALVE
  • 16126
    16126-1173 VALVE, VACUUM
    VALVE, VACUUM
  • 43028
    43028-1053 DIAPHRAGM, 5.9MM, AIR CUT VALVE
    DIAPHRAGM, 5.9MM, AIR CUT VALVE
  • 92002
    92002-1761 BOLT, 4X14
    BOLT, 4X14
  • 92009
    92009-1434 SCREW, DRAIN, M6X1.0
    SCREW, DRAIN, M6X1.0
  • 92022
    92022-1003 WASHER, PLAIN
    WASHER, PLAIN
  • 92043
    92043-1285 PIN, FLOAT
    PIN, FLOAT
  • 92055
    92055-1002 O-RING, PILOT ADJUST
    O-RING, PILOT ADJUST
  • 92055A
    92055-1245 O-RING
    O-RING
  • 92055B
    92055-1290 O-RING
    O-RING
  • 92055C
    92055-1291 O-RING
    O-RING
  • 92063
    92063-1014 JET, MAIN, #135 (OPT)
    JET, MAIN, #135 (OPT)
  • 92063A
    92063-1015 JET, MAIN, #138 (OPT)
    JET, MAIN, #138 (OPT)
  • 92063B
    92063-1069 JET, MAIN, #125 (OPT)
    JET, MAIN, #125 (OPT)
  • 92063C
    92063-1073 JET, MAIN, #122 (OPT)
    JET, MAIN, #122 (OPT)
  • 92063D
    92063-1074 JET, MAIN, #128 (OPT)
    JET, MAIN, #128 (OPT)
  • 92063E
    92063-1075 JET, MAIN, #130 (OPT)
    JET, MAIN, #130 (OPT)
  • 92063F
    92063-1076 JET, MAIN, #132
    JET, MAIN, #132
  • 92064
    92064-1118 JET, PILOT, #38
    JET, PILOT, #38
  • 92064A
    92064-1123 JET, PILOT, #35 (OPT)
    JET, PILOT, #35 (OPT)
  • 220
    220D0408 SCREW, PAN, CROS, 4X8
    SCREW, PAN, CROS, 4X8
  • 223
    223D0410 SCREW, PAN, WS, CROS, 4X10
    SCREW, PAN, WS, CROS, 4X10
  • 223A
    223D0512 SCREW, PAN, WS, CROS, 5X12
    SCREW, PAN, WS, CROS, 5X12
  • 92066
    92066-1051 PLUG, PILOT AIR SCREW, 6.9X2
    PLUG, PILOT AIR SCREW, 6.9X2
  • 92081
    92081-1002 SPRING, PILOT ADJUST SCREW
    SPRING, PILOT ADJUST SCREW
  • 92081A
    92081-1761 SPRING, STARTER PLUNGER
    SPRING, STARTER PLUNGER
  • 92081B
    92081-1874 SPRING, VACUUM VALVE
    SPRING, VACUUM VALVE
  • 92081C
    92081-1891 SPRING, AIR CUT VALVE
    SPRING, AIR CUT VALVE
