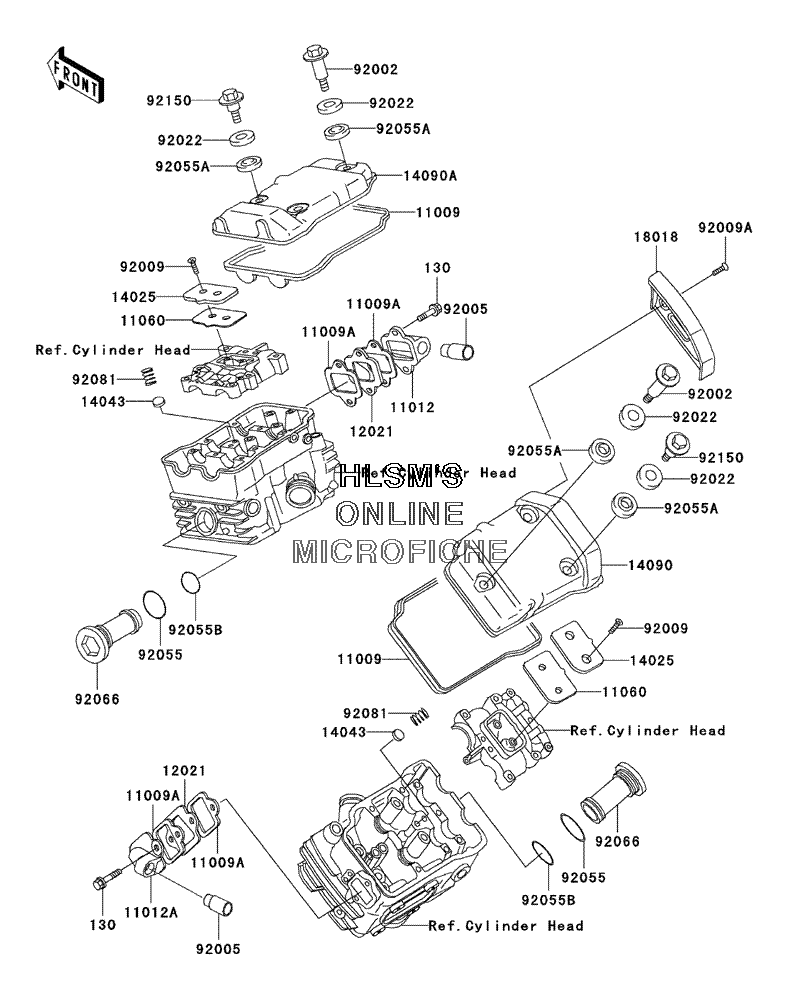

CYLINDER HEAD COVER для Kawasaki Vulcan 750 - 2006 года выпуска

  • №
    Артикул
    Название
  • 130
    130N0620 BOLT, FLANGED, 6X20
    BOLT, FLANGED, 6X20
  • 11009
    11009-1508 GASKET, CYLINDER HEAD COVER
    GASKET, CYLINDER HEAD COVER
  • 11009A
    11009-1879 GASKET, REED VALVE
    GASKET, REED VALVE
  • 11012
    11012-1494 CAP, REED VALVE, FRONT
    CAP, REED VALVE, FRONT
  • 11012A
    11012-1495 CAP, REED VALVE, REAR
    CAP, REED VALVE, REAR
  • 11060
    11060-1083 GASKET, SEPARATER COVER
    GASKET, SEPARATER COVER
  • 12021
    12021-1011 VALVE, ASSY, REED
    VALVE, ASSY, REED
  • 14025
    14025-1738 COVER, SEPARATER
    COVER, SEPARATER
  • 14043
    14043-1056 FILTER, OIL
    FILTER, OIL
  • 14090
    14090-1400 COVER, CYLINDER HEAD, REAR
    COVER, CYLINDER HEAD, REAR
  • 14090A
    14090-1401 COVER, CYLINDER HEAD, FRONT
    COVER, CYLINDER HEAD, FRONT
  • 18018
    18018-1063 PLATE, HEAT GUARD
    PLATE, HEAT GUARD
  • 92002
    92002-1421 BOLT, FLANGED, 6X35.5X16
    BOLT, FLANGED, 6X35.5X16
  • 92005
    92005-1006 FITTING, REED VALVE
    FITTING, REED VALVE
  • 92009
    92009-1363 SCREW, 6X10
    SCREW, 6X10
  • 92009A
    92009-3703 SCREW, 6X16
    SCREW, 6X16
  • 92022
    92022-1637 WASHER, HEAD COVER BOLT
    WASHER, HEAD COVER BOLT
  • 92055
    92055-049 O-RING, 31.7X2.4
    O-RING, 31.7X2.4
  • 92055A
    92055-1225 O-RING, HEAD COVER BOLT
    O-RING, HEAD COVER BOLT
  • 92055B
    92055-1272 O-RING, 27.7X1.9
    O-RING, 27.7X1.9
  • 92066
    92066-1224 PLUG, CYLINDER HEAD
    PLUG, CYLINDER HEAD
  • 92081
    92081-1776 SPO-RINGIL FILTER
    SPO-RINGIL FILTER
  • 92150
    92150-1447 BOLT, FLANGED, 6X23.5
    BOLT, FLANGED, 6X23.5
