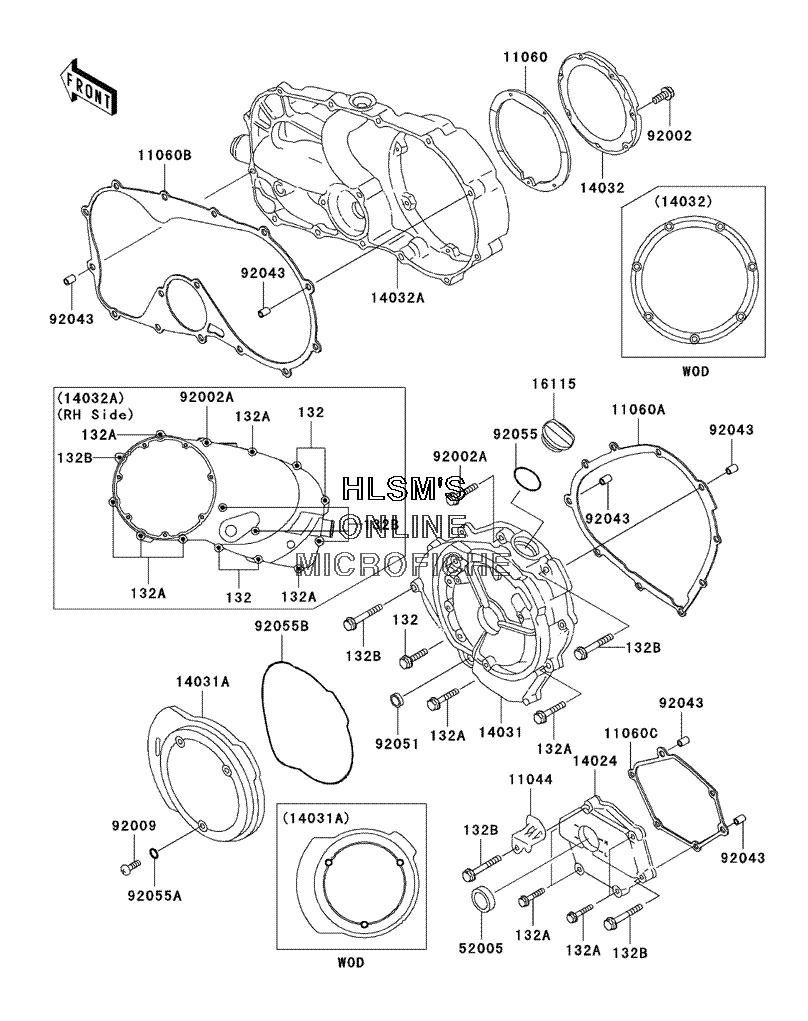

ENGINE COVER для Kawasaki Vulcan 750 - 2006 года выпуска

  • №
    Артикул
    Название
  • 132
    132E0625 BOLT, FLANGED, SMALL, 6X25
    BOLT, FLANGED, SMALL, 6X25
  • 132A
    132E0630 BOLT, FLANGED, SMALL, 6X30
    BOLT, FLANGED, SMALL, 6X30
  • 132B
    132E0640 BOLT, FLANGED, SMALL, 6X40
    BOLT, FLANGED, SMALL, 6X40
  • 11044
    11044-1474 BRACKET, LEAD WIRE
    BRACKET, LEAD WIRE
  • 11060
    11060-1088 GASKET, CLUTCH OUTSIDE COVER
    GASKET, CLUTCH OUTSIDE COVER
  • 11060A
    11060-1089 GASKET, GENERATOR COVER
    GASKET, GENERATOR COVER
  • 11060B
    11060-1090 GASKET, CLUTCH COVER
    GASKET, CLUTCH COVER
  • 11060C
    11060-1091 GASKET, TRANSMISSION COVER
    GASKET, TRANSMISSION COVER
  • 14024
    14024-1175 COVER, TRANSMISSION
    COVER, TRANSMISSION
  • 14031
    14031-1187 COVER, GENERATOR
    COVER, GENERATOR
  • 14031A
    14031-1188 COVER, GENERATOR, OUTSIDE
    COVER, GENERATOR, OUTSIDE
  • 14032
    14032-1207 COVER, CLUTCH, OUTSIDE
    COVER, CLUTCH, OUTSIDE
  • 14032A
    14032-1211 COVER, CLUTCH
    COVER, CLUTCH
  • 16115
    16115-1055 CAP, OIL FILLER
    CAP, OIL FILLER
  • 52005
    52005-1009 GAUGE, OIL LEVEL
    GAUGE, OIL LEVEL
  • 92002
    92002-1439 BOLT, 6X16
    BOLT, 6X16
  • 92002A
    92002-1622 BOLT, 6X30
    BOLT, 6X30
  • 92009
    92009-1715 SCREW, CSK, RD, CROS, M6X20
    SCREW, CSK, RD, CROS, M6X20
  • 92043
    92043-1263 PIN, 6.2X8X14
    PIN, 6.2X8X14
  • 92051
    92051-005 SEAL, OIL, TB13225.5
    SEAL, OIL, TB13225.5
  • 92055
    92055-049 O-RING, 31.7X2.4
    O-RING, 31.7X2.4
  • 92055A
    92055-109 O-RING, 5.28X1.78
    O-RING, 5.28X1.78
  • 92055B
    92055-1319 O-RING, GENERATOR COVER
    O-RING, GENERATOR COVER
