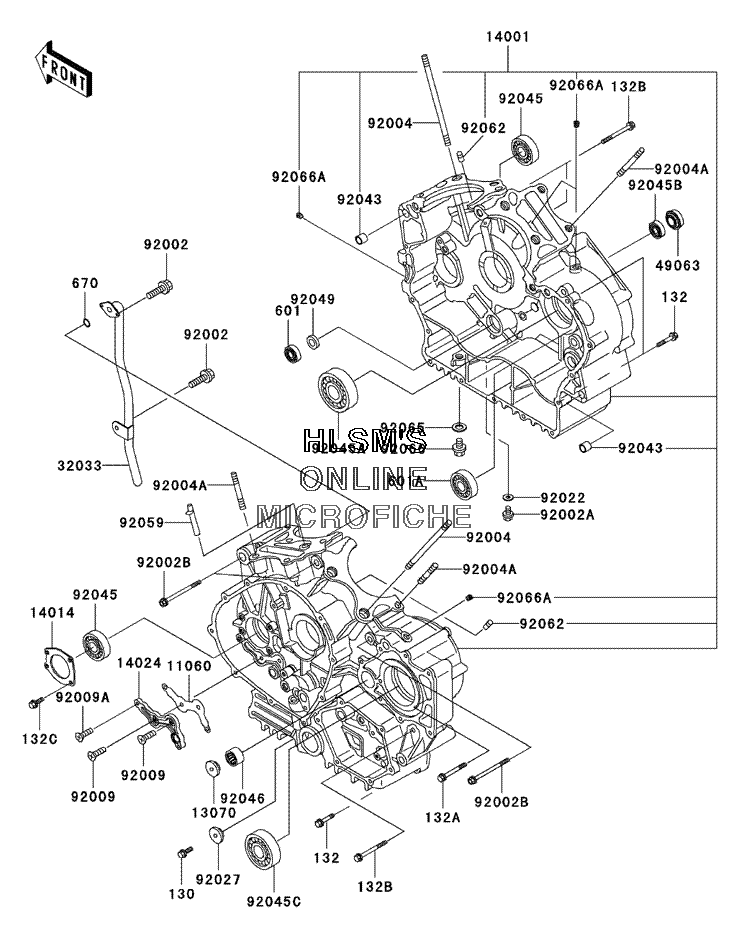

CRANKCASE для Kawasaki Vulcan 750 - 2006 года выпуска

  • №
    Артикул
    Название
  • 130
    130P0616 BOLT, FLANGED, 6X16
    BOLT, FLANGED, 6X16
  • 132
    132E0630 BOLT, FLANGED, SMALL, 6X30
    BOLT, FLANGED, SMALL, 6X30
  • 132A
    132E0640 BOLT, FLANGED, SMALL, 6X40
    BOLT, FLANGED, SMALL, 6X40
  • 132B
    132E0660 BOLT, FLANGED, SMALL, 6X60
    BOLT, FLANGED, SMALL, 6X60
  • 132C
    132G0616 BOLT, FLANGED, SMALL, 6X16
    BOLT, FLANGED, SMALL, 6X16
  • 601
    601A6001 BEARING, BALL
    BEARING, BALL
  • 601A
    601A6204Z BEARING, BALL
    BEARING, BALL
  • 670
    670B1508 O-RING, 8MM
    O-RING, 8MM
  • 11060
    11060-1087 GASKET, OIL LINE COVER
    GASKET, OIL LINE COVER
  • 13070
    13070-1127 GUIDE
    GUIDE
  • 14001
    14001-5205 SET, CRANKCASE
    SET, CRANKCASE
  • 14014
    14014-1068 PLATE, POSITION
    PLATE, POSITION
  • 14024
    14024-1074 COVER, OIL LINE
    COVER, OIL LINE
  • 32033
    32033-1649 PIPE, BREATHER
    PIPE, BREATHER
  • 49063
    49063-1057 SEAL, MECHANICAL
    SEAL, MECHANICAL
  • 92002
    92002-1592 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92002A
    92002-1628 BOLT, 6X10
    BOLT, 6X10
  • 92002B
    92002-1629 BOLT, 10X80
    BOLT, 10X80
  • 92004
    92004-1140 STUD, 10X163
    STUD, 10X163
  • 92004A
    92004-1142 STUD, 8X28.5
    STUD, 8X28.5
  • 92009
    92009-1266 SCREW, PAN, CROS, 6X16
    SCREW, PAN, CROS, 6X16
  • 92009A
    92009-1447 SCREW, 6X20
    SCREW, 6X20
  • 92022
    92022-077 WASHER, 6.1X12X1
    WASHER, 6.1X12X1
  • 92027
    92027-1844 COLLAR
    COLLAR
  • 92043
    92043-1266 PIN, 11X14X12.3
    PIN, 11X14X12.3
  • 92045
    92045-1041 BEARING, BALL, TMB204 JR
    BEARING, BALL, TMB204 JR
  • 92045A
    92045-1137 BEARING, BALL, TMB305
    BEARING, BALL, TMB305
  • 92045B
    92045-1151 BEARING, BALL, 6001JRXLLU/5K
    BEARING, BALL, 6001JRXLLU/5K
  • 92045C
    92045-1167 BEARING, BALL, TMB305X3
    BEARING, BALL, TMB305X3
  • 92046
    92046-1239 BEARING, NEEDLE
    BEARING, NEEDLE
  • 92049
    92049-1228 SEAL, OIL, SC 12X22X5
    SEAL, OIL, SC 12X22X5
  • 92059
    92059-1620 TUBE
    TUBE
  • 92062
    92062-1079 NOZZLE, 6X8 (BLACK)
    NOZZLE, 6X8 (BLACK)
  • 92065
    92065-097 GASKET, 12X22X2
    GASKET, 12X22X2
  • 92066
    92066-1174 PLUG, OIL DRAIN, 12X15
    PLUG, OIL DRAIN, 12X15
  • 92066A
    92066-1227 PLUG, PT1/8X7
    PLUG, PT1/8X7
