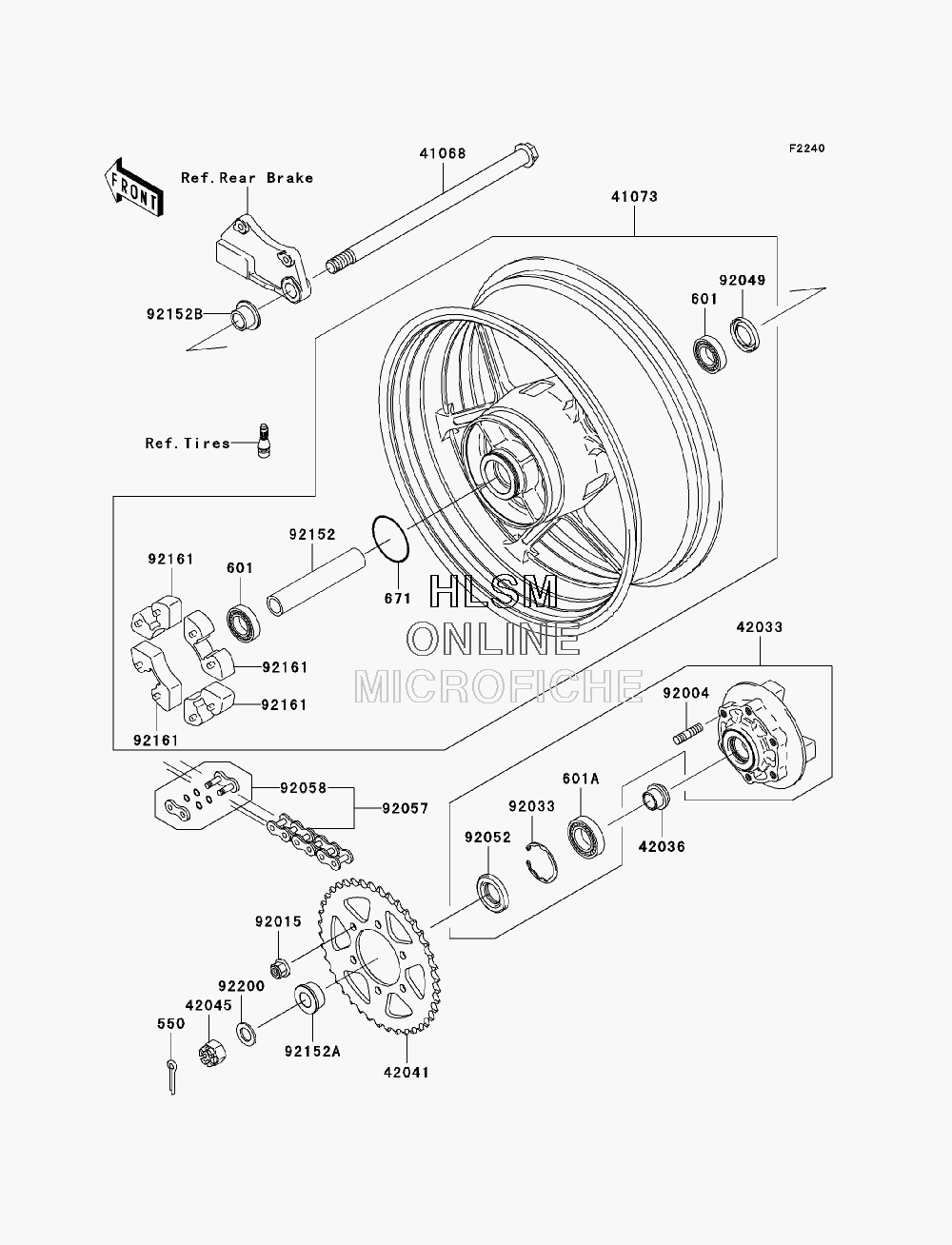

WHEEL - REAR W/ CHAIN для Kawasaki Z750S - 2005 года выпуска`
-
№АртикулНазвание
-
550550D4035 PIN-COTTER,4.0X35PIN-COTTER,4.0X35
-
601601B6204UU BEARING-BALL,6204UUC3BEARING-BALL,6204UUC3
-
601A601B6205UU BEARING-BALLBEARING-BALL
-
671671B2560 O RING,60MMO RING,60MM
-
4106841068-0023 AXLE, REARAXLE, REAR
-
4107341073-0009-2A WHEEL-ASSY, REAR,GRAYSTONEWHEEL-ASSY, REAR,GRAYSTONE
-
4203342033-0003 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1251 SLEEVE, REAR HUB,L=23SLEEVE, REAR HUB,L=23
-
4204142041-0010 SPROCKET-HUB,43TSPROCKET-HUB,43T
-
4204542045-018 NUT,CASTLE,18MMNUT,CASTLE,18MM
-
9200492004-1275 STUD,10X19STUD,10X19
-
9201592015-1335 NUT,FLANGED,10MMNUT,FLANGED,10MM
-
9203392033-1043 RING-SNAP,52MMRING-SNAP,52MM
-
9204992049-1056 SEAL-OIL,BJN28475SEAL-OIL,BJN28475
-
9205292052-006 SEAL-OIL,TWC35527SEAL-OIL,TWC35527
-
9205792057-0079 CHAIN,DRIVE,EK520MVXLX112LCHAIN,DRIVE,EK520MVXLX112L
-
9205892058-0002 JOINT-CHAIN,DRIVEJOINT-CHAIN,DRIVE
-
9215292152-0070 COLLAR, REAR HUB,L=150COLLAR, REAR HUB,L=150
-
92152A92152-0118 COLLAR, REAR AXLE, LEFT HAND,L=18COLLAR, REAR AXLE, LEFT HAND,L=18
-
92152B92152-1162 COLLAR, REAR AXLE, RIGHT HAND,L=20COLLAR, REAR AXLE, RIGHT HAND,L=20
-
9216192161-0058 DAMPER,SHOCK, REAR HUBDAMPER,SHOCK, REAR HUB
-
9220092200-1489 WASHER,19X32X2.6WASHER,19X32X2.6
