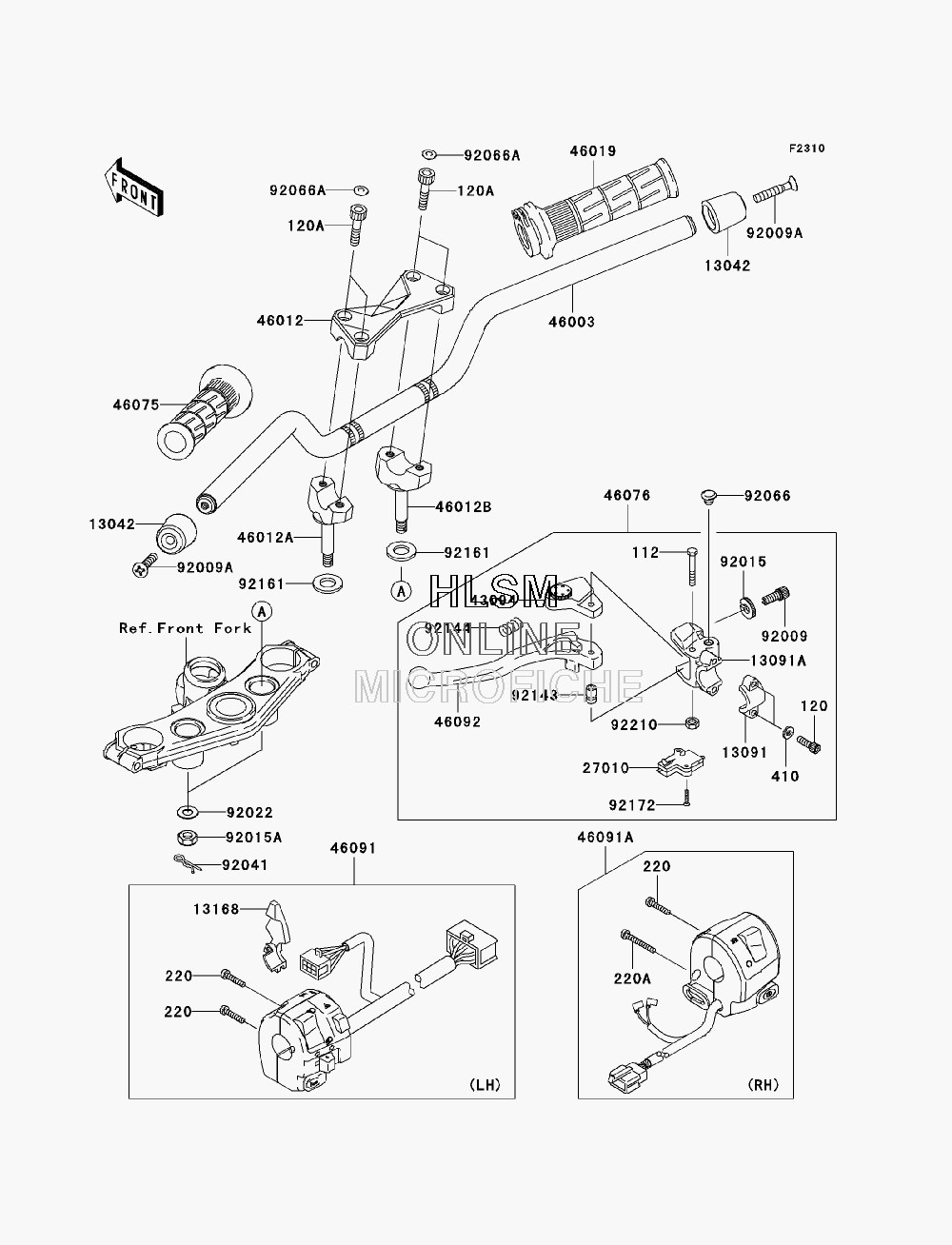

HANDLEBAR для Kawasaki Z750S - 2005 года выпуска

  • №
    Артикул
    Название
  • 112
    112C0640 BOLT-UPSET
    BOLT-UPSET
  • 120
    120S0620 BOLT-SOCKET
    BOLT-SOCKET
  • 120A
    120S0830 BOLT-SOCKET,8X30,BLACK
    BOLT-SOCKET,8X30,BLACK
  • 220
    220C0525 SCREW-PAN-CROS
    SCREW-PAN-CROS
  • 220A
    220C0540 SCREW-PAN-CROS
    SCREW-PAN-CROS
  • 410
    410F0600 WASHER-PLAIN-SMALL,6MM,BLACK
    WASHER-PLAIN-SMALL,6MM,BLACK
  • 13042
    13042-1005 WEIGHT,HANDLE
    WEIGHT,HANDLE
  • 13091
    13091-1624 HOLDER,CLUTCH LEVER
    HOLDER,CLUTCH LEVER
  • 13091A
    13091-1652 HOLDER,CLUTCH LEVER
    HOLDER,CLUTCH LEVER
  • 13168
    13168-1516 LEVER,CHOKE
    LEVER,CHOKE
  • 27010
    27010-1094 SWITCH,CLUTCH,BLACK
    SWITCH,CLUTCH,BLACK
  • 43094
    43094-1053 ADJUSTER,CLUTCH LEVER
    ADJUSTER,CLUTCH LEVER
  • 46003
    46003-0071 HANDLE
    HANDLE
  • 46012
    46012-1338 HOLDER-HANDLE,UPP
    HOLDER-HANDLE,UPP
  • 46012A
    46012-1339 HOLDER-HANDLE,LWR, LEFT HAND
    HOLDER-HANDLE,LWR, LEFT HAND
  • 46012B
    46012-1340 HOLDER-HANDLE,LWR, RIGHT HAND
    HOLDER-HANDLE,LWR, RIGHT HAND
  • 46019
    46019-0001 GRIP-ASSY,THROTTLE
    GRIP-ASSY,THROTTLE
  • 46075
    46075-1144 GRIP, LEFT HAND
    GRIP, LEFT HAND
  • 46076
    46076-1180 LEVER-ASSY-GRIP,CLUTCH
    LEVER-ASSY-GRIP,CLUTCH
  • 46091
    46091-0055 HOUSING-ASSY-CONTROL, LEFT HAND
    HOUSING-ASSY-CONTROL, LEFT HAND
  • 46091A
    46091-1891 HOUSING-ASSY-CONTROL, RIGHT HAND
    HOUSING-ASSY-CONTROL, RIGHT HAND
  • 46092
    46092-1162 LEVER-GRIP,CLUTCH
    LEVER-GRIP,CLUTCH
  • 92009
    92009-1134 SCREW,CABLE ADJUST,8MM,BLACK
    SCREW,CABLE ADJUST,8MM,BLACK
  • 92009A
    92009-1257 SCREW,8X45
    SCREW,8X45
  • 92015
    92015-1197 NUT,CABLE ADJUST LOCK,8MM,BLK
    NUT,CABLE ADJUST LOCK,8MM,BLK
  • 92015A
    92015-1962 NUT,LOCK,10MM
    NUT,LOCK,10MM
  • 92022
    92022-1088 WASHER,10.2X28X2
    WASHER,10.2X28X2
  • 92041
    92041-1060 COTTER,8MM
    COTTER,8MM
  • 92066
    92066-1077 PLUG,9.5X8,POLYETHYLENE
    PLUG,9.5X8,POLYETHYLENE
  • 92066A
    92066-1216 PLUG
    PLUG
  • 92143
    92143-1379 COLLAR
    COLLAR
  • 92144
    92144-1467 SPRING
    SPRING
  • 92161
    92161-0037 DAMPER
    DAMPER
  • 92172
    92172-0183 SCREW,3X16
    SCREW,3X16
  • 92210
    92210-0006 NUT,LOCK,6MM
    NUT,LOCK,6MM
