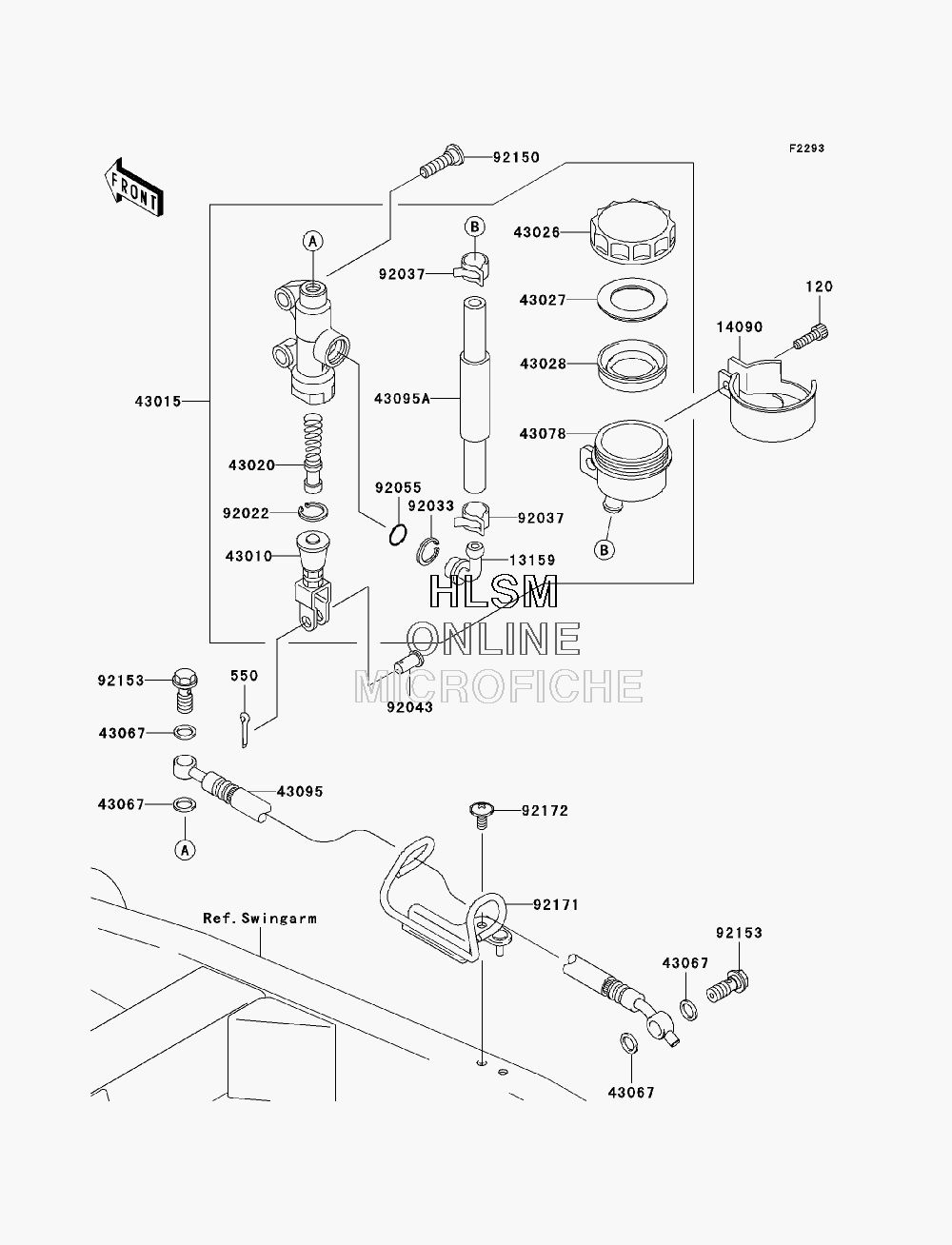

BRAKE - MASTER CYLINDER - REAR для Kawasaki Z750S - 2005 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0620 BOLT-SOCKET
    BOLT-SOCKET
  • 550
    550D2015 PIN-COTTER,2.0X15
    PIN-COTTER,2.0X15
  • 13159
    13159-1052 CONNECTOR, REAR MASTER CYLINDER
    CONNECTOR, REAR MASTER CYLINDER
  • 14090
    14090-1482 COVER, RESERVOIR TANK
    COVER, RESERVOIR TANK
  • 43010
    43010-1062 ROD-ASSY-BRAKE
    ROD-ASSY-BRAKE
  • 43015
    43015-1706 CYLINDER-ASSY-MASTER, REAR
    CYLINDER-ASSY-MASTER, REAR
  • 43020
    43020-1094 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43026
    43026-1051 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-1051 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM,MASTER CYLINDER
    DIAPHRAGM,MASTER CYLINDER
  • 43067
    43067-001 WASHER,10.5X15X1.5
    WASHER,10.5X15X1.5
  • 43078
    43078-1165 RESERVOIR, REAR MASTER CYLINDER
    RESERVOIR, REAR MASTER CYLINDER
  • 43095
    43095-0117 HOSE-BRAKE, REAR
    HOSE-BRAKE, REAR
  • 43095A
    43095-1292 HOSE-BRAKE, REAR MASTER CYLINDER
    HOSE-BRAKE, REAR MASTER CYLINDER
  • 92022
    92022-1601 WASHER,CIRCRIP
    WASHER,CIRCRIP
  • 92033
    92033-1186 RING-SNAP,20.5MM
    RING-SNAP,20.5MM
  • 92037
    92037-1547 CLAMP,BRAKE HOSE
    CLAMP,BRAKE HOSE
  • 92043
    92043-1303 PIN,8MM
    PIN,8MM
  • 92055
    92055-1251 RING-O,MASTER CYLINDER
    RING-O,MASTER CYLINDER
  • 92150
    92150-1843 BOLT,SOCKET,8X30
    BOLT,SOCKET,8X30
  • 92153
    92153-0627 BOLT,OIL,L=23
    BOLT,OIL,L=23
  • 92171
    92171-0489 CLAMP,BRAKE HOSE
    CLAMP,BRAKE HOSE
  • 92172
    92172-0004 SCREW,6X14
    SCREW,6X14
