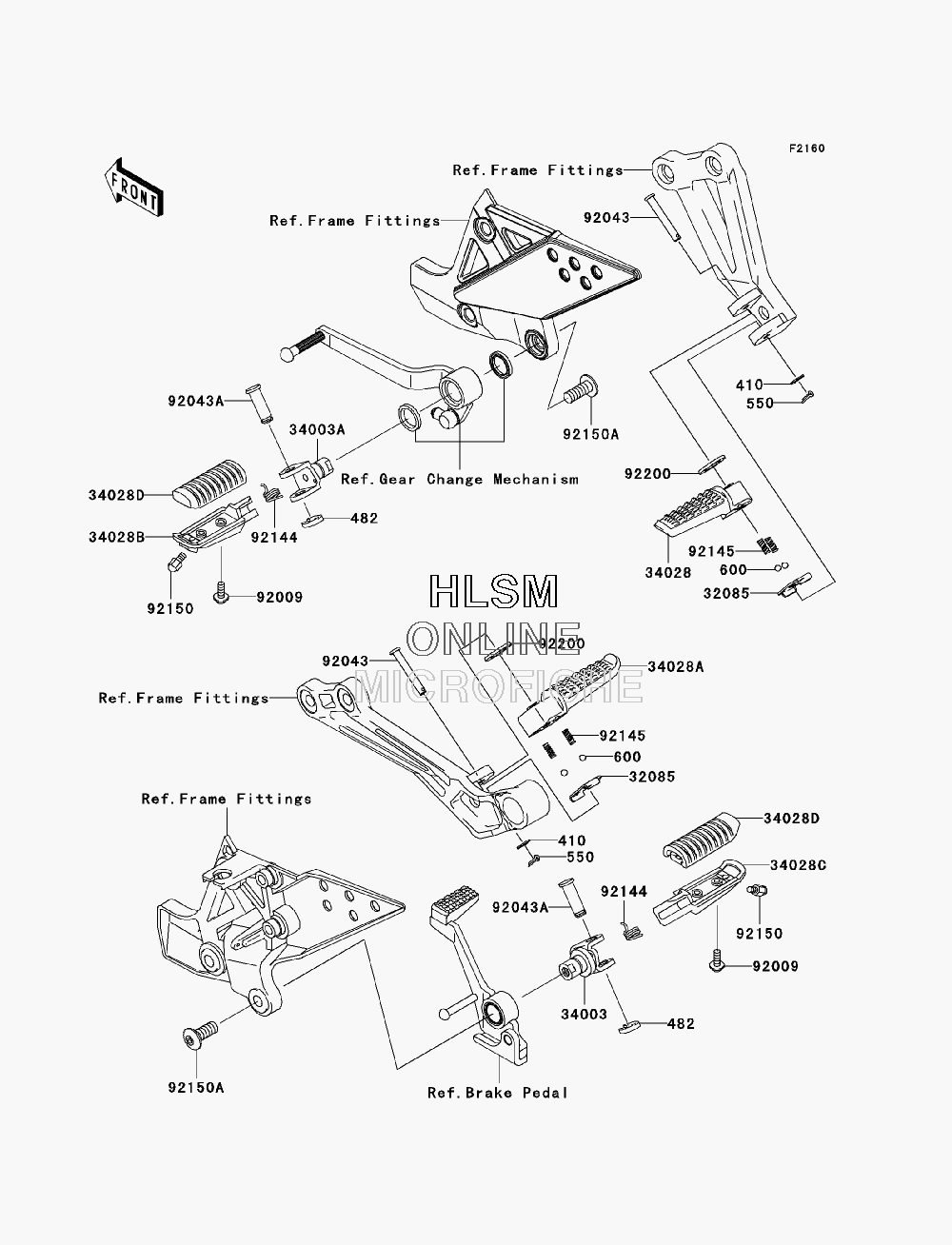

FOOTRESTS для Kawasaki Z750S - 2005 года выпуска

  • №
    Артикул
    Название
  • 410
    410B0600 WASHER-PLAIN-SMALL,6MM
    WASHER-PLAIN-SMALL,6MM
  • 482
    482L0100 CIRCLIP-TYPE-E,10MM
    CIRCLIP-TYPE-E,10MM
  • 550
    550D2512 PIN-COTTER
    PIN-COTTER
  • 600
    600A0800 BALL-STEEL,1/4"
    BALL-STEEL,1/4"
  • 32085
    32085-0047 STOPPER, REAR STEP
    STOPPER, REAR STEP
  • 34003
    34003-0025 HOLDER-STEP, FRONT, RIGHT HAND
    HOLDER-STEP, FRONT, RIGHT HAND
  • 34003A
    34003-1474 HOLDER-STEP, FRONT, LEFT HAND
    HOLDER-STEP, FRONT, LEFT HAND
  • 34028
    34028-0004 STEP, REAR, LEFT HAND
    STEP, REAR, LEFT HAND
  • 34028A
    34028-0005 STEP, REAR, RIGHT HAND
    STEP, REAR, RIGHT HAND
  • 34028B
    34028-1428 STEP, FRONT, LEFT HAND
    STEP, FRONT, LEFT HAND
  • 34028C
    34028-1429 STEP, FRONT, RIGHT HAND
    STEP, FRONT, RIGHT HAND
  • 34028D
    34028-1430 STEP, FRONT,RUBBER
    STEP, FRONT,RUBBER
  • 92009
    92009-1404 SCREW,5X14
    SCREW,5X14
  • 92043
    92043-0019 PIN,6X43
    PIN,6X43
  • 92043A
    92043-1641 PIN,12X37
    PIN,12X37
  • 92144
    92144-1567 SPRING,STEP RETURN
    SPRING,STEP RETURN
  • 92145
    92145-1319 SPRING
    SPRING
  • 92150
    92150-1114 BOLT,BANK SENSOR
    BOLT,BANK SENSOR
  • 92150A
    92150-1268 BOLT,SOCKET,10X25
    BOLT,SOCKET,10X25
  • 92200
    92200-0043 WASHER,16X26X2.3
    WASHER,16X26X2.3
