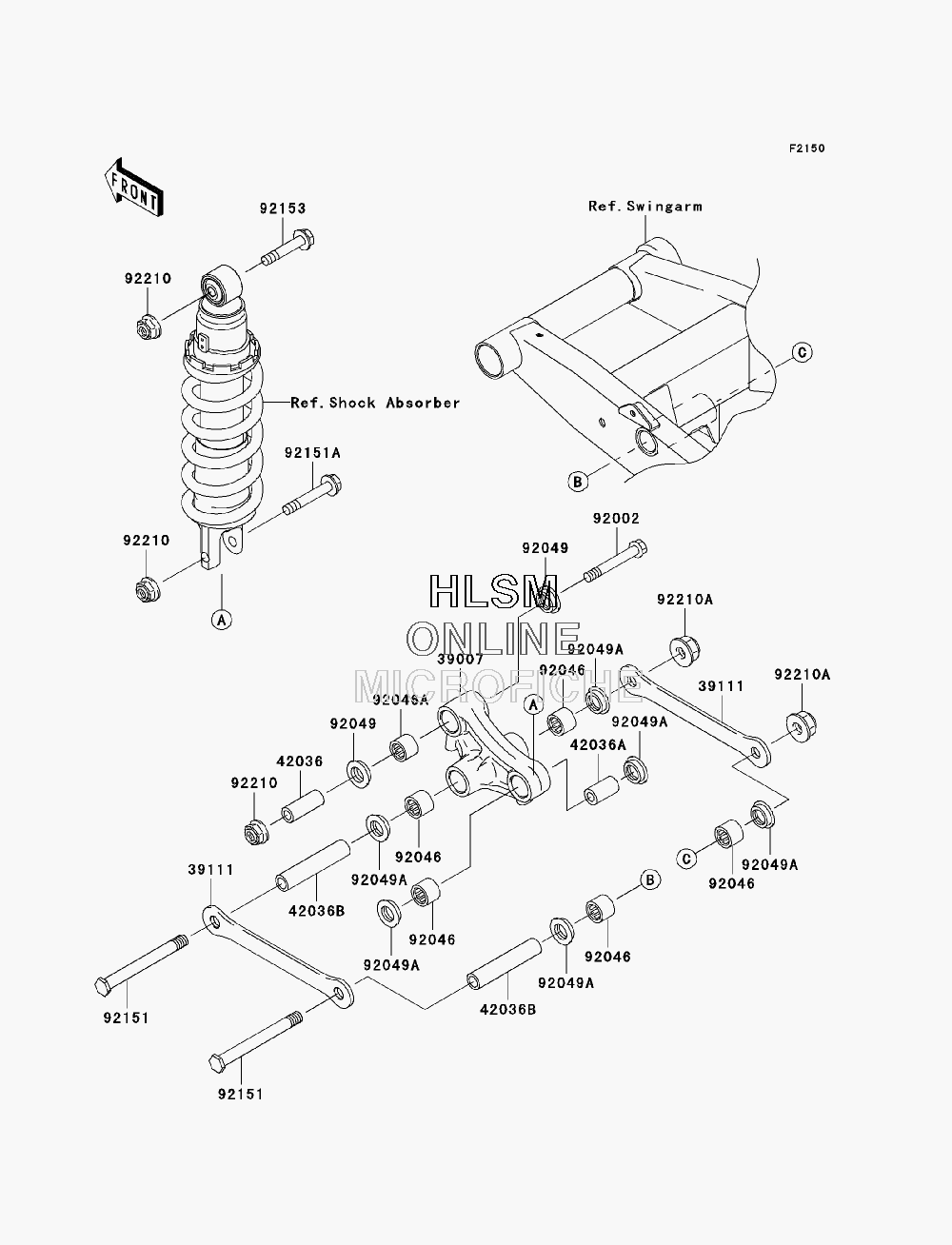

SUSPENSION - REAR для Kawasaki Z750S - 2005 года выпуска
-
№АртикулНазвание
-
3900739007-0006 ARM-SUSP,UNI TRAKARM-SUSP,UNI TRAK
-
3911139111-0017 ROD-TIE,SUSPENSIONROD-TIE,SUSPENSION
-
4203642036-1342 SLEEVE,10.1X17X44.5SLEEVE,10.1X17X44.5
-
42036A42036-1344 SLEEVE,10.1X18X32SLEEVE,10.1X18X32
-
42036B42036-1360 SLEEVE,12.1X18X90SLEEVE,12.1X18X90
-
9200292002-1183 BOLT,10X70BOLT,10X70
-
9204692046-1272 BEARING-NEEDLE,SFYZM182417BEARING-NEEDLE,SFYZM182417
-
92046A92046-1273 BEARING-NEEDLE,SFYZM172425BEARING-NEEDLE,SFYZM172425
-
9204992049-1223 SEAL-OIL,MHA17245.7FSEAL-OIL,MHA17245.7F
-
92049A92049-1493 SEAL-OIL,KCR MF018N1SEAL-OIL,KCR MF018N1
-
9215192151-1318 BOLT,12X114BOLT,12X114
-
92151A92151-1601 BOLT,FLANGED,10X62BOLT,FLANGED,10X62
-
9215392153-0343 BOLT,FLANGED,10X53BOLT,FLANGED,10X53
-
9221092210-1139 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210A92210-1150 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
