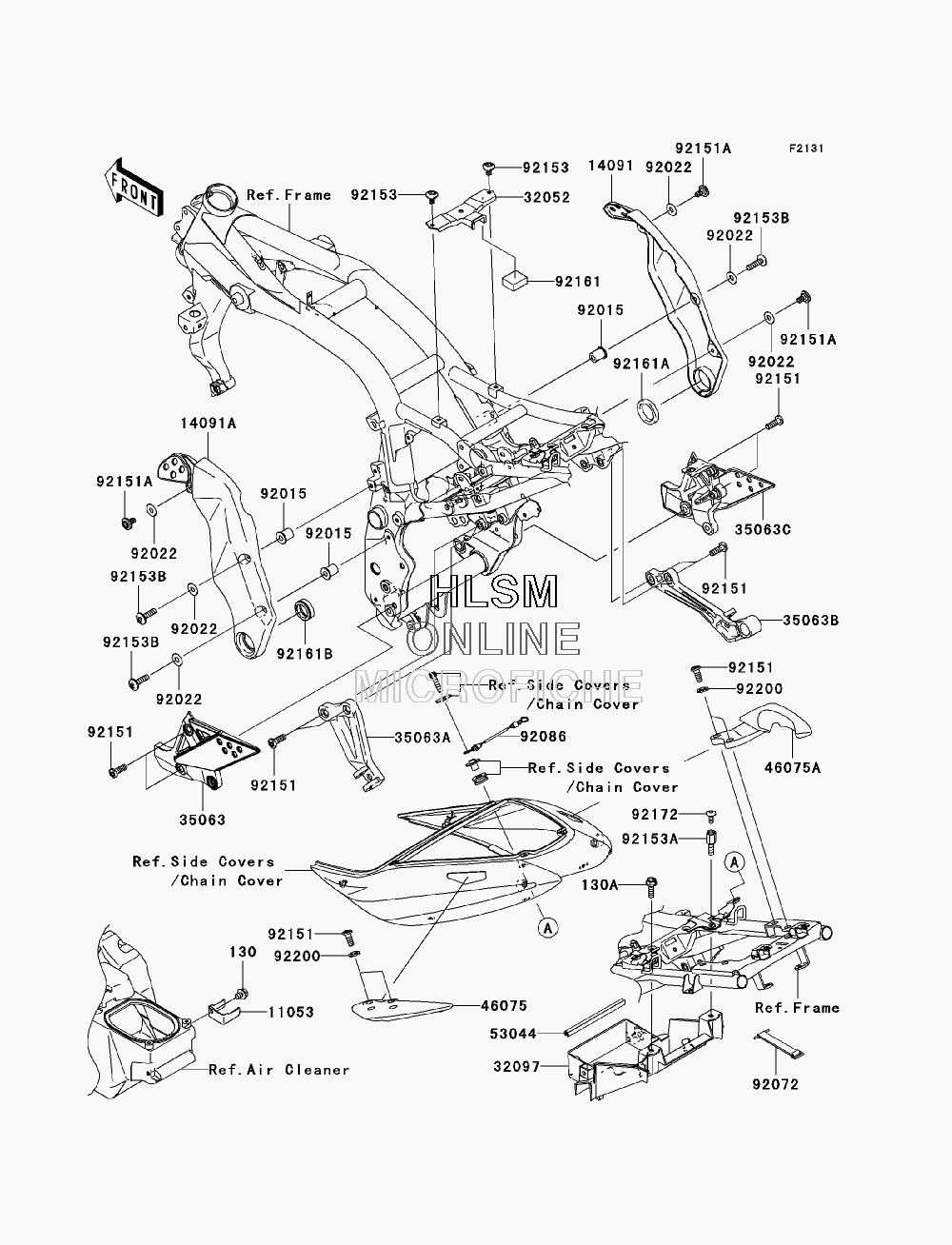

FRAME FITTINGS для Kawasaki Z750S - 2005 года выпуска
-
№АртикулНазвание
-
130130J0608 BOLT-FLANGED,6X8BOLT-FLANGED,6X8
-
130A130J0620 BOLT-FLANGEDBOLT-FLANGED
-
1105311053-0138 BRACKET,MAGNETIC SWITCHBRACKET,MAGNETIC SWITCH
-
1409114091-0234-4P COVER,PIVOT, RIGHT HAND,M.F.GRAYSTONECOVER,PIVOT, RIGHT HAND,M.F.GRAYSTONE
-
14091A14091-0283-4P COVER,PIVOT, LEFT HAND,M.F.GRAYSTONECOVER,PIVOT, LEFT HAND,M.F.GRAYSTONE
-
3205232052-1597 BRACKET-TANK,FUELBRACKET-TANK,FUEL
-
3209732097-0010 CASE-BATTERYCASE-BATTERY
-
3506335063-0034 STAY,STEP HOLDER, LEFT HANDSTAY,STEP HOLDER, LEFT HAND
-
35063A35063-0062-458 STAY, REAR, LEFT HAND,P.SILVERSTAY, REAR, LEFT HAND,P.SILVER
-
35063B35063-0063-458 STAY, REAR, RIGHT HAND,P.SILVERSTAY, REAR, RIGHT HAND,P.SILVER
-
35063C35063-0172 STAY,STEP HOLDER, RIGHT HANDSTAY,STEP HOLDER, RIGHT HAND
-
4607546075-0031 GRIP,TAIL, LEFT HANDGRIP,TAIL, LEFT HAND
-
46075A46075-0032 GRIP,TAIL, RIGHT HANDGRIP,TAIL, RIGHT HAND
-
5304453044-1303 TRIM,L=150TRIM,L=150
-
9201592015-1700 NUTNUT
-
9202292022-1143 WASHER,6.5X16X1WASHER,6.5X16X1
-
9207292072-1349 BAND,TOOLBAND,TOOL
-
9208692086-1075 WIRE,L=150WIRE,L=150
-
9215192151-1372 BOLT,SOCKET,10X30BOLT,SOCKET,10X30
-
92151A92151-1654 BOLT,SOCKET,6X14BOLT,SOCKET,6X14
-
9215392153-0410 BOLT,SOCKET,6X10BOLT,SOCKET,6X10
-
92153A92153-0966 BOLT,6MMBOLT,6MM
-
92153B92153-1267 BOLT,SOCKET,6X23BOLT,SOCKET,6X23
-
9216192161-0063 DAMPERDAMPER
-
92161A92161-0148 DAMPERDAMPER
-
92161B92161-0211 DAMPERDAMPER
-
9217292172-0170 SCREW,5MMSCREW,5MM
-
9220092200-0088 WASHER,10.5X26X2.3WASHER,10.5X26X2.3
