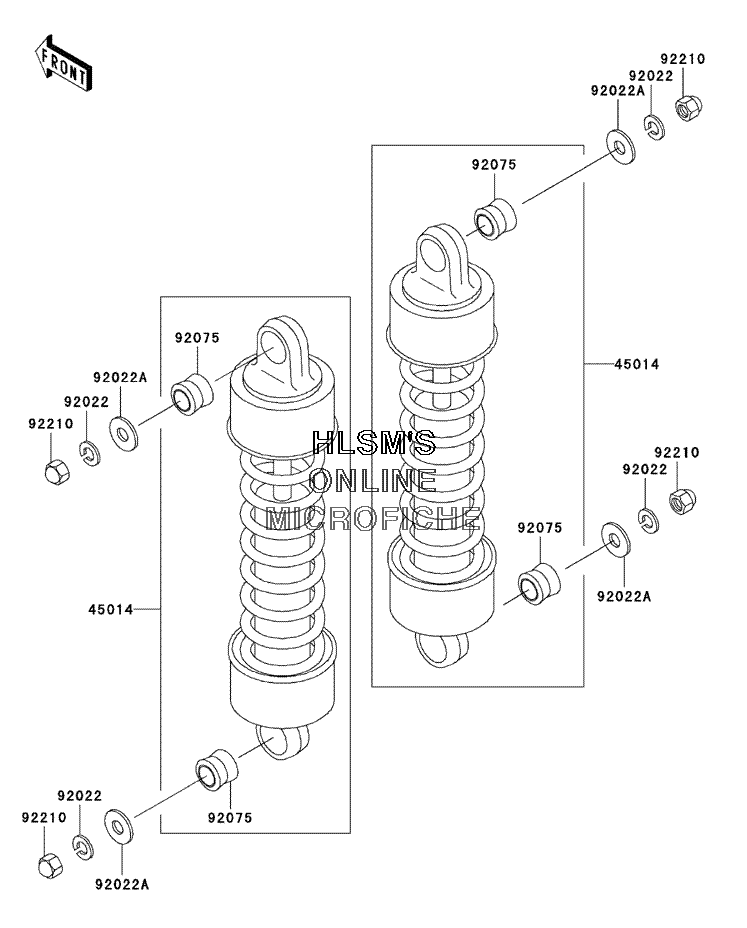

SUSPENSION - SHOCK ABSORBER для Kawasaki Vulcan 1500 Classic - 2003 года выпуска
-
№АртикулНазвание
-
4501445014-1719 SHOCKABSORBERSHOCKABSORBER
-
9202292022-1540 WASHER, SPRING, 10MMWASHER, SPRING, 10MM
-
92022A92022-246 WASHER, 10.5X26X2.3WASHER, 10.5X26X2.3
-
9207592075-1387 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
-
9221092210-1128 NUT, CAP, 10MMNUT, CAP, 10MM
