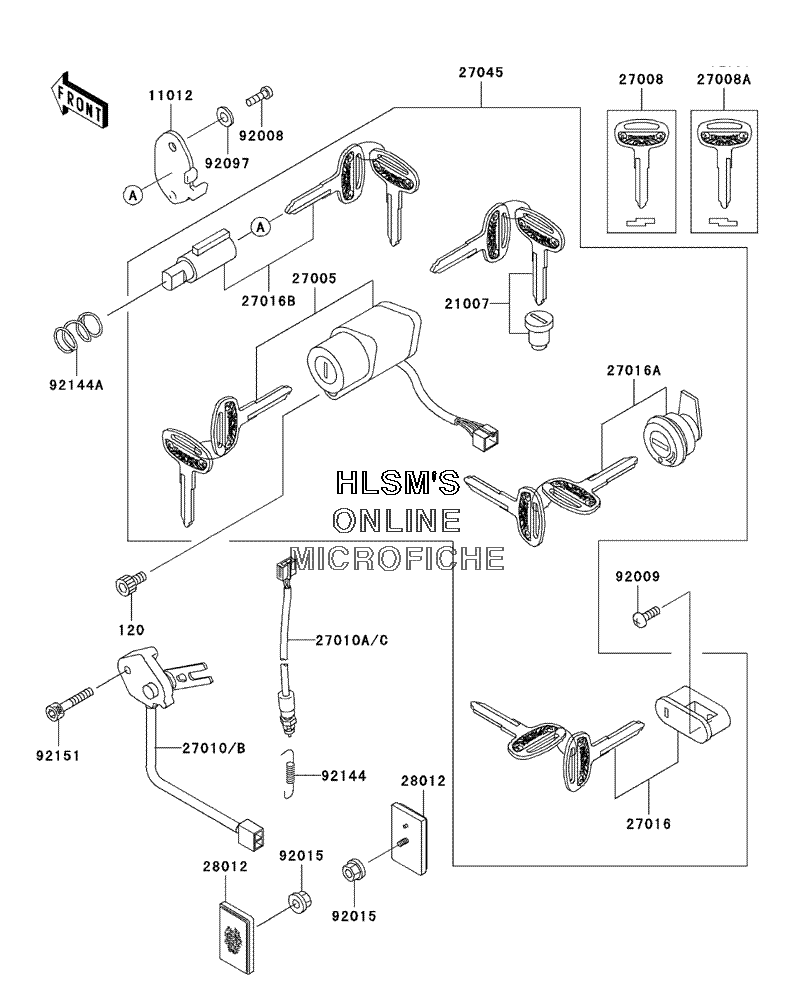

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Vulcan 1500 Classic - 2003 года выпуска
-
№АртикулНазвание
-
120120P0512 BOLT, SOCKETBOLT, SOCKET
-
1101211012-1586 CAP, STEERING LOCKCAP, STEERING LOCK
-
2100721007-5041 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-1215 SWITCH, ASSY., IGNITIONSWITCH, ASSY., IGNITION
-
2700827008-1179 KEY, LOCK, BLANK, #A (OPT)KEY, LOCK, BLANK, #A (OPT)
-
27008A27008-1180 KEY, LOCK, BLANK, #B (OPT)KEY, LOCK, BLANK, #B (OPT)
-
27010B27010-1464 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010C27010-1487 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-5243 LOCK, ASSY., HELMETLOCK, ASSY., HELMET
-
27016A27016-5244 LOCK, ASSY., LIDLOCK, ASSY., LID
-
27016B27016-5246 LOCK, ASSY., STEERINGLOCK, ASSY., STEERING
-
2704527045-5087 SWITCH, ASSY.SWITCH, ASSY.
-
2801228012-1009 REFLECTOR, REFLEX, FRONTREFLECTOR, REFLEX, FRONT
-
9200892008-007 SCREW, 3.51MMSCREW, 3.51MM
-
9200992009-1296 SCREW, 5X12SCREW, 5X12
-
9201592015-1656 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9209792097-003 WASHER, WAVEWASHER, WAVE
-
9214492144-1141 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
92144A92144-1222 SPRING, STEERING LOCKSPRING, STEERING LOCK
-
9215192151-1390 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
