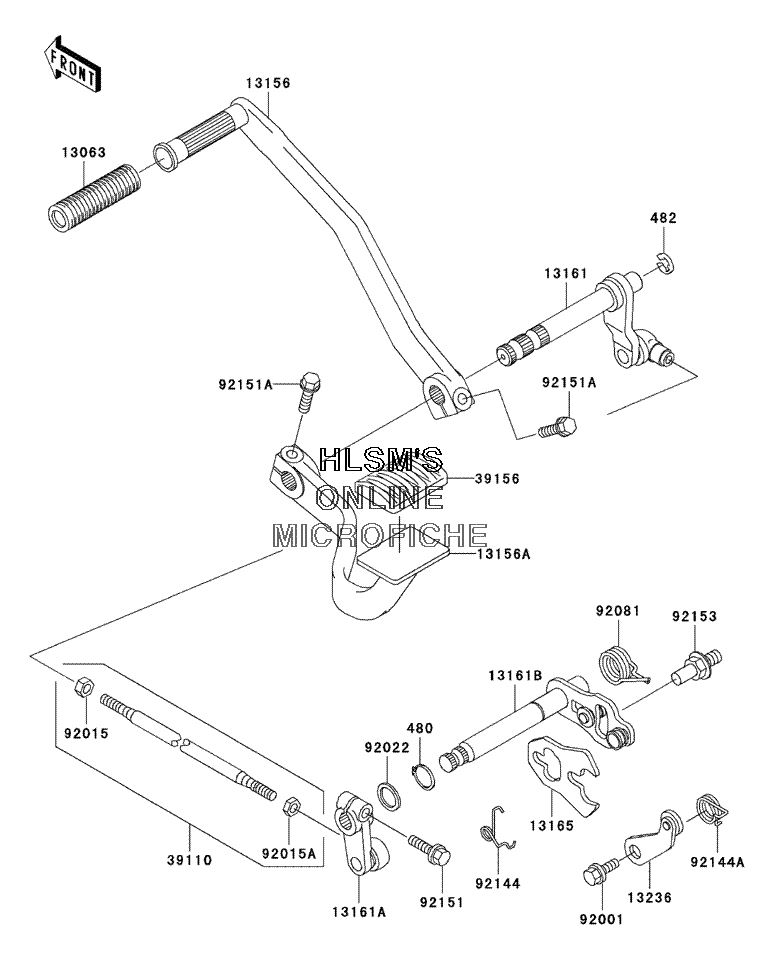

GEAR CHANGE MECHANISM для Kawasaki Vulcan 1500 Classic - 2003 года выпуска

  • №
    Артикул
    Название
  • 480
    480J1300 CIRCLIP, TYPE, C, 13MM
    CIRCLIP, TYPE, C, 13MM
  • 482
    482L0100 CIRCLIP, TYPE, E, 10MM
    CIRCLIP, TYPE, E, 10MM
  • 13063
    13063-002 DAMPER, PEDAL
    DAMPER, PEDAL
  • 13156
    13156-1419 LEVER, CHANGE, PEDAL, FRONT
    LEVER, CHANGE, PEDAL, FRONT
  • 13156A
    13156-1420 LEVER, CHANGE, PEDAL, REAR
    LEVER, CHANGE, PEDAL, REAR
  • 13161
    13161-1250 LEVER, COMP, CHANGE SHAFT, FRONT
    LEVER, COMP, CHANGE SHAFT, FRONT
  • 13161A
    13161-1253 LEVER, COMP, CHANGE SHAFT
    LEVER, COMP, CHANGE SHAFT
  • 13161B
    13161-1254 LEVER, COMP, CHANGE SHAFT
    LEVER, COMP, CHANGE SHAFT
  • 13165
    13165-1120 PAWL
    PAWL
  • 13236
    13236-1126 LEVER, COMP, POSITION
    LEVER, COMP, POSITION
  • 39110
    39110-1119 ROD, ASSY., TIE
    ROD, ASSY., TIE
  • 39156
    39156-1071 PAD, BRAKE PEDAL
    PAD, BRAKE PEDAL
  • 92001
    92001-1715 BOLT, GEAR CHANGE LEVER
    BOLT, GEAR CHANGE LEVER
  • 92015
    92015-1443 NUT, 6MM
    NUT, 6MM
  • 92015A
    92015-1444 NUT, LEFT HANDED, 6MM
    NUT, LEFT HANDED, 6MM
  • 92022
    92022-1224 WASHER, 13.2X20X0.5
    WASHER, 13.2X20X0.5
  • 92081
    92081-1869 SPRING, CHANGE PEDAL RETURN
    SPRING, CHANGE PEDAL RETURN
  • 92144
    92144-1029 SPRING
    SPRING
  • 92144A
    92144-1140 SPRING, RETURN
    SPRING, RETURN
  • 92151
    92151-1226 BOLT, 6X20
    BOLT, 6X20
  • 92151A
    92151-1898 BOLT, 6X25
    BOLT, 6X25
  • 92153
    92153-1076 BOLT
    BOLT
