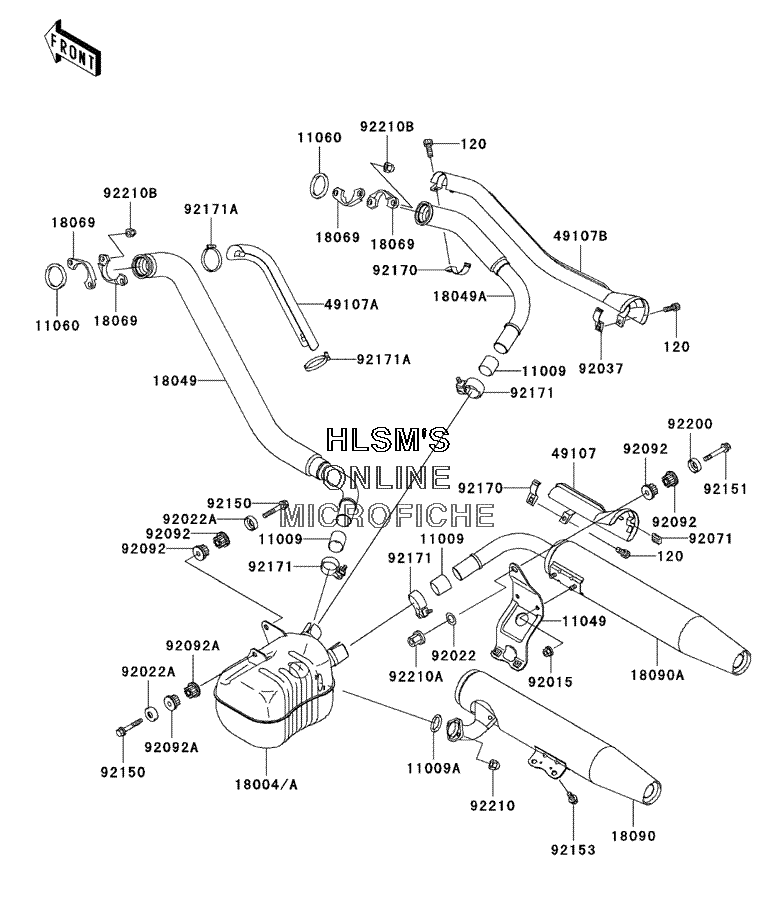

MUFFLER(S) для Kawasaki Vulcan 1500 Classic - 2003 года выпуска

  • №
    Артикул
    Название
  • 120
    120Z0620 BOLT, SOCKET
    BOLT, SOCKET
  • 11009
    11009-1865 GASKET, MUFFLER CONNECTING
    GASKET, MUFFLER CONNECTING
  • 11009A
    11009-1894 GASKET, EXHAUST HOLDER
    GASKET, EXHAUST HOLDER
  • 11049
    11049-1540 BRACKET, MUFFLER
    BRACKET, MUFFLER
  • 11060
    11060-1119 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 18004
    18004-1091 CHAMBER, PREMUFFLER (CALIF. ONLY)
    CHAMBER, PREMUFFLER (CALIF. ONLY)
  • 18004A
    18004-1094 CHAMBER, PREMUFFLER (EXCEPT CALIF.)
    CHAMBER, PREMUFFLER (EXCEPT CALIF.)
  • 18049
    18049-1887 PIPE, EXHAUST, FRONT
    PIPE, EXHAUST, FRONT
  • 18049A
    18049-1888 PIPE, EXHAUST, REAR
    PIPE, EXHAUST, REAR
  • 18069
    18069-1161 HOLDER, EXHAUST PIPE
    HOLDER, EXHAUST PIPE
  • 18090
    18090-1652 BODY, COMP, MUFFLER, FRONT, LOWER
    BODY, COMP, MUFFLER, FRONT, LOWER
  • 18090A
    18090-1653 BODY, COMP, MUFFLER, REAR, UPPER
    BODY, COMP, MUFFLER, REAR, UPPER
  • 49107
    49107-1103 COVER, EXHAUST PIPE, MUFFLER (RIGHT)
    COVER, EXHAUST PIPE, MUFFLER (RIGHT)
  • 49107A
    49107-1115 COVER, EXHAUST PIPE
    COVER, EXHAUST PIPE
  • 49107B
    49107-1156 COVER, EXHAUST PIPE, REAR
    COVER, EXHAUST PIPE, REAR
  • 92015
    92015-1936 NUT, 8MM
    NUT, 8MM
  • 92022
    92022-044 WASHER, 10.5X26X2.3
    WASHER, 10.5X26X2.3
  • 92022A
    92022-1302 WASHER, 10.5X30X2.3 (BLACK)
    WASHER, 10.5X30X2.3 (BLACK)
  • 92037
    92037-1613 CLAMP, EXHAUST PIPE COVER
    CLAMP, EXHAUST PIPE COVER
  • 92071
    92071-1226 GROMMET
    GROMMET
  • 92092
    92092-1013 BUSHING, RUBBER, MUFFLER
    BUSHING, RUBBER, MUFFLER
  • 92092A
    92092-1081 BUSHING, RUBBER
    BUSHING, RUBBER
  • 92150
    92150-1749 BOLT, 10X55
    BOLT, 10X55
  • 92151
    92151-1332 BOLT, FLANGED, 10X57
    BOLT, FLANGED, 10X57
  • 92153
    92153-0387 BOLT, FLANGED, 8X14
    BOLT, FLANGED, 8X14
  • 92170
    92170-1645 CLAMP
    CLAMP
  • 92171
    92171-0062 CLAMP, CHAMBER, MUFFLER
    CLAMP, CHAMBER, MUFFLER
  • 92171A
    92171-0137 CLAMP
    CLAMP
  • 92200
    92200-1664 WASHER, 10.5X36X2
    WASHER, 10.5X36X2
  • 92210
    92210-0076 NUT, 8MM
    NUT, 8MM
  • 92210A
    92210-1121 NUT, CAP, 10MM
    NUT, CAP, 10MM
  • 92210B
    92210-1132 NUT, CAP, 8MM
    NUT, CAP, 8MM
