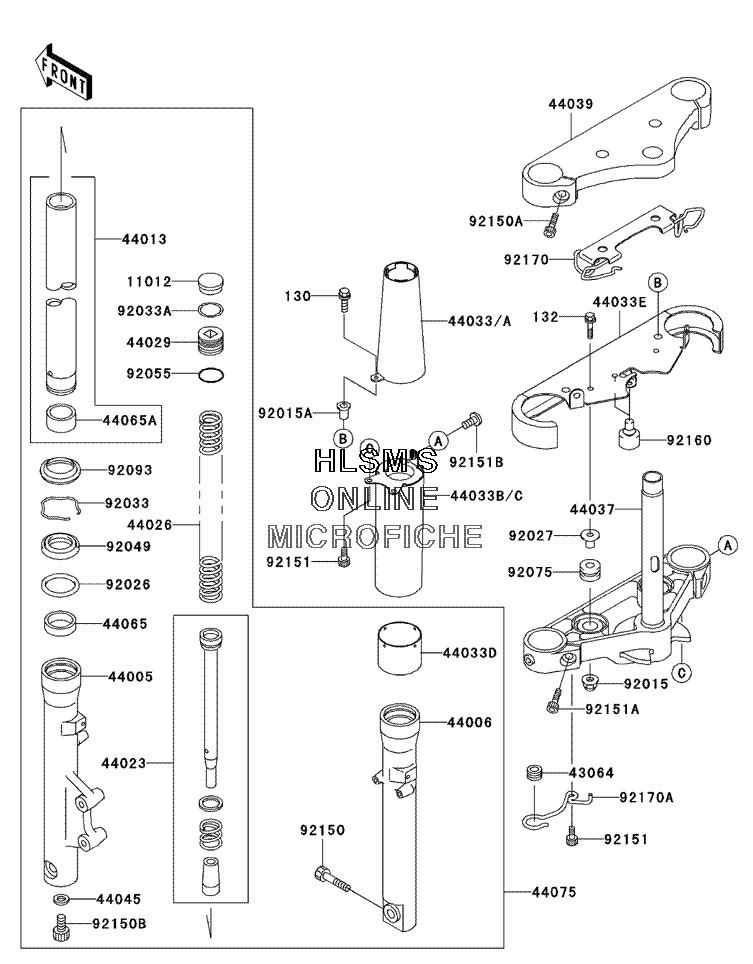

FRONT FORK для Kawasaki Vulcan 1500 Classic - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0516 BOLT, FLANGED
    BOLT, FLANGED
  • 11012
    11012-1618 CAP, FORK TOP
    CAP, FORK TOP
  • 43064
    43064-006 GROMMET, HOSE CLAMP
    GROMMET, HOSE CLAMP
  • 44005
    44005-1366 PIPE, LEFT FORK OUTER
    PIPE, LEFT FORK OUTER
  • 44006
    44006-1365 PIPE, RIGHT FORK OUTER
    PIPE, RIGHT FORK OUTER
  • 44013
    44013-1462 PIPE, FORK INNER
    PIPE, FORK INNER
  • 44023
    44023-1133 CYLINDER, SET, FORK
    CYLINDER, SET, FORK
  • 44026
    44026-1693 SPRING, FRONT FORK
    SPRING, FRONT FORK
  • 44029
    44029-1125 SEAT, FORK SPRING
    SEAT, FORK SPRING
  • 44033
    44033-1215 COVER, FORK, UPPER (LEFT)
    COVER, FORK, UPPER (LEFT)
  • 44033A
    44033-1216 COVER, FORK, UPPER (RIGHT)
    COVER, FORK, UPPER (RIGHT)
  • 44033B
    44033-1221 COVER, FORK, UNDER (LEFT)
    COVER, FORK, UNDER (LEFT)
  • 44033C
    44033-1222 COVER, FORK, UNDER (RIGHT)
    COVER, FORK, UNDER (RIGHT)
  • 44033D
    44033-1223 COVER, FORK
    COVER, FORK
  • 44033E
    44033-1235 COVER, FORK, LOWER
    COVER, FORK, LOWER
  • 44037
    44037-1344 HOLDER, FORK UNDER
    HOLDER, FORK UNDER
  • 44039
    44039-1260 HOLDER, FORK UPPER
    HOLDER, FORK UPPER
  • 44045
    44045-051 GASKET, FORK CYLINDER BOLT
    GASKET, FORK CYLINDER BOLT
  • 44065
    44065-1079 BUSHING, FRONT FORK
    BUSHING, FRONT FORK
  • 44065A
    44065-1087 BUSHING, FRONT FORK, INNER PIPE
    BUSHING, FRONT FORK, INNER PIPE
  • 44075
    44075-1095 DAMPER, SET, FORK
    DAMPER, SET, FORK
  • 92015
    92015-1385 NUT, CAP, 6MM
    NUT, CAP, 6MM
  • 92015A
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92026
    92026-1276 SPACER, FORK OUTER
    SPACER, FORK OUTER
  • 92027
    92027-1847 COLLAR, L=16.1
    COLLAR, L=16.1
  • 92033
    92033-1222 RING, SNAP
    RING, SNAP
  • 92033A
    92033-1223 RING, SNAP, SPRING SEAT
    RING, SNAP, SPRING SEAT
  • 92049
    92049-1363 SEAL, OIL, FORK
    SEAL, OIL, FORK
  • 92055
    92055-1363 O-RING, SPRING SEAT
    O-RING, SPRING SEAT
  • 92075
    92075-1035 DAMPER
    DAMPER
  • 92093
    92093-1268 SEAL, FORK
    SEAL, FORK
  • 92150
    92150-1029 BOLT, SOCKET, 10X40
    BOLT, SOCKET, 10X40
  • 92150A
    92150-1031 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92150B
    92150-1432 BOLT, SOCKET, 8X18
    BOLT, SOCKET, 8X18
  • 92151
    92151-1068 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92151A
    92151-1083 BOLT, SOCKET, 10X25
    BOLT, SOCKET, 10X25
  • 92151B
    92151-1097 BOLT, SOCKET, 5X10
    BOLT, SOCKET, 5X10
  • 92160
    92160-1555 DAMPER
    DAMPER
  • 92170
    92170-1655 CLAMP, CABLE
    CLAMP, CABLE
  • 92170A
    92170-1658 CLAMP, CABLE
    CLAMP, CABLE
  • 132
    132E0630 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
