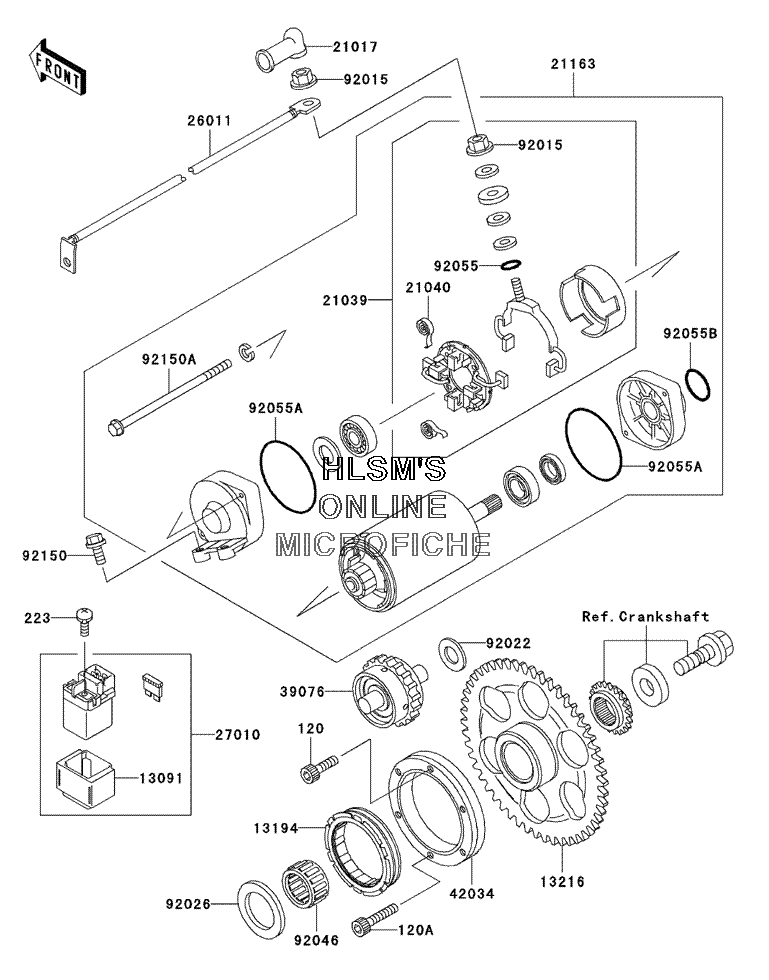

STARTER MOTOR для Kawasaki Vulcan 1500 Classic - 2003 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0620 BOLT, SOCKET
    BOLT, SOCKET
  • 120A
    120S0630 BOLT, SOCKET
    BOLT, SOCKET
  • 223
    223D0510 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 13091
    13091-1883 HOLDER, SWITCH
    HOLDER, SWITCH
  • 13194
    13194-1088 CLUTCH, ONEWAY
    CLUTCH, ONEWAY
  • 13216
    13216-1115 GEAR, COMP, FREE WHEEL
    GEAR, COMP, FREE WHEEL
  • 21017
    21017-017 GROMMET, STARTER TERMINAL
    GROMMET, STARTER TERMINAL
  • 21039
    21039-1060 BRUSH, CARBON
    BRUSH, CARBON
  • 21040
    21040-1055 SPRING, BRUSH
    SPRING, BRUSH
  • 21163
    21163-1271 STARTER, ELECTRIC
    STARTER, ELECTRIC
  • 26011
    26011-1639 WIRE, LEAD, STARTER
    WIRE, LEAD, STARTER
  • 27010
    27010-1347 SWITCH, MAGNETIC
    SWITCH, MAGNETIC
  • 39076
    39076-1057 LIMITER, STARTER IDLE GEAR
    LIMITER, STARTER IDLE GEAR
  • 42034
    42034-1093 COUPLING
    COUPLING
  • 92015
    92015-1476 NUT, STARTER MOTOR
    NUT, STARTER MOTOR
  • 92022
    92022-1852 WASHER, 12X27.5X1.0
    WASHER, 12X27.5X1.0
  • 92026
    92026-1490 SPACER, 31X49.5X1.2
    SPACER, 31X49.5X1.2
  • 92046
    92046-1171 BEARING, NEEDLE, K30X35X20
    BEARING, NEEDLE, K30X35X20
  • 92055
    92055-1370 O-RING, 4.5X2.0
    O-RING, 4.5X2.0
  • 92055A
    92055-1381 O-RING, STARTER MOTOR
    O-RING, STARTER MOTOR
  • 92055B
    92055-1393 O-RING, 37MM
    O-RING, 37MM
  • 92150
    92150-1779 BOLT, 6X25
    BOLT, 6X25
  • 92150A
    92150-1913 BOLT, STARTER MOTOR
    BOLT, STARTER MOTOR
