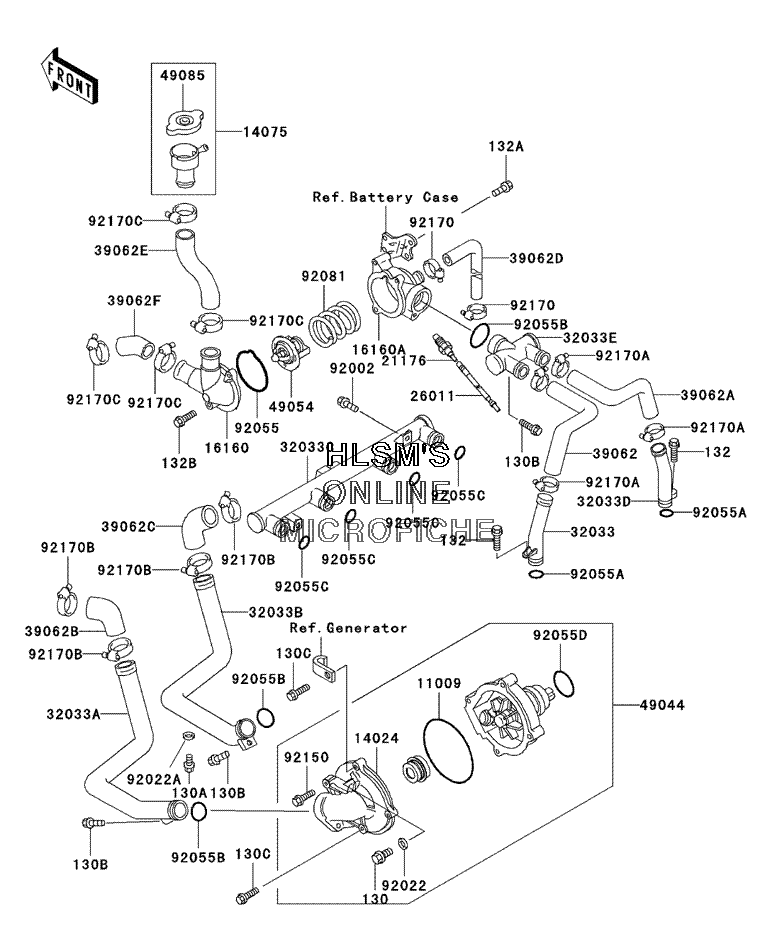

WATER PUMP для Kawasaki Voyager XII - 2001 года выпуска

  • №
    Артикул
    Название
  • 130
    130C0610 BOLT, FLANGED, 6X10 (BLACK)
    BOLT, FLANGED, 6X10 (BLACK)
  • 130A
    130N0610 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 130B
    130N0612 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 11009
    11009-1621 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 14024
    14024-1348 COVER, WATER PUMP
    COVER, WATER PUMP
  • 14075
    14075-1083 CAP, ASSY., RADIATOR
    CAP, ASSY., RADIATOR
  • 16160
    16160-1103 BODY, THERMOSTAT, UPPER
    BODY, THERMOSTAT, UPPER
  • 16160A
    16160-1104 BODY, THERMOSTAT, LOWER
    BODY, THERMOSTAT, LOWER
  • 21176
    21176-1054 SENSOR, WATER
    SENSOR, WATER
  • 26011
    26011-1364 WIRE, LEAD, SENSOR
    WIRE, LEAD, SENSOR
  • 32033
    32033-1933 PIPE, HEAD (LEFT)
    PIPE, HEAD (LEFT)
  • 32033A
    32033-1934 PIPE, HOSE, PUMP
    PIPE, HOSE, PUMP
  • 32033B
    32033-1935 PIPE, PUMP, HOSE
    PIPE, PUMP, HOSE
  • 32033C
    32033-1936 PIPE, CYLINDER
    PIPE, CYLINDER
  • 32033D
    32033-1968 PIPE, HEAD (RIGHT)
    PIPE, HEAD (RIGHT)
  • 32033E
    32033-1990 PIPE, THERMOSTAT
    PIPE, THERMOSTAT
  • 39062
    39062-1149 HOSE, COOLING (LEFT)
    HOSE, COOLING (LEFT)
  • 39062A
    39062-1150 HOSE, COOLING (RIGHT)
    HOSE, COOLING (RIGHT)
  • 39062B
    39062-1151 HOSE, COOLING, RADIATOR, PIPE
    HOSE, COOLING, RADIATOR, PIPE
  • 39062C
    39062-1152 HOSE, COOLING, PIPE, PIPE
    HOSE, COOLING, PIPE, PIPE
  • 39062D
    39062-1153 HOSE, COOLING, BY, PASS
    HOSE, COOLING, BY, PASS
  • 39062E
    39062-1154 HOSE, COOLING, THERMO, CAP
    HOSE, COOLING, THERMO, CAP
  • 39062F
    39062-1174 HOSE, COOLING, THERMO, RADIATOR
    HOSE, COOLING, THERMO, RADIATOR
  • 49044
    49044-1082 PUMP, WATER
    PUMP, WATER
  • 49054
    49054-1001 THERMOSTAT
    THERMOSTAT
  • 49085
    49085-1066 CAP, ASSY., PRESSURE
    CAP, ASSY., PRESSURE
  • 92002
    92002-1350 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 92022
    92022-1976 WASHER, 6MM
    WASHER, 6MM
  • 92022A
    92022-304 WASHER, 6.2X11X1
    WASHER, 6.2X11X1
  • 92055
    92055-1324 O-RING, THERMOSTAT
    O-RING, THERMOSTAT
  • 92055A
    92055-1325 O-RING, 18.8X2.4
    O-RING, 18.8X2.4
  • 92055B
    92055-1328 O-RING, 27.6X3.2
    O-RING, 27.6X3.2
  • 92055C
    92055-1350 O-RING, 18.54X2.6
    O-RING, 18.54X2.6
  • 92055D
    92055-1424 O-RING, 33.2X2.4
    O-RING, 33.2X2.4
  • 92081
    92081-1104 SPRING, THERMOSTAT
    SPRING, THERMOSTAT
  • 92150
    92150-1379 BOLT, 6X22
    BOLT, 6X22
  • 92170
    92170-1032 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
  • 92170A
    92170-1034 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
  • 92170B
    92170-1036 CLAMP
    CLAMP
  • 92170C
    92170-1284 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
  • 130C
    130N0645 BOLT, FLANGED
    BOLT, FLANGED
  • 132
    132E0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132J0614 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132B
    132J0620 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
