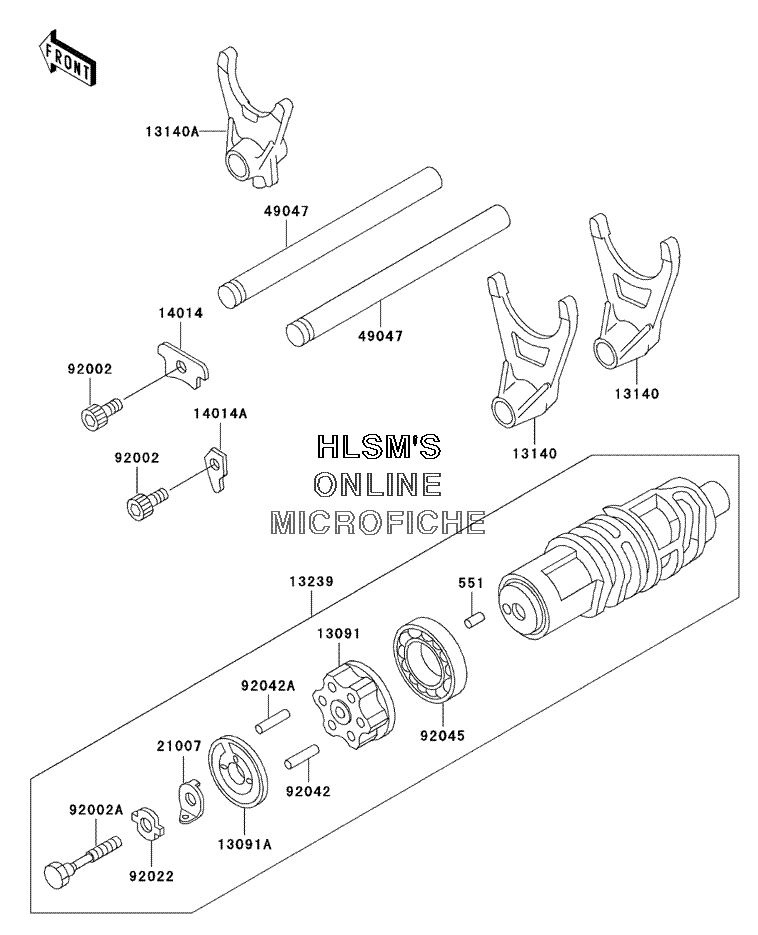

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki Voyager XII - 2001 года выпуска`
-
№АртикулНазвание
-
551551A0408 PIN, DOWEL, 4X8PIN, DOWEL, 4X8
-
1309113091-1409 HOLDERHOLDER
-
13091A13091-1442 HOLDER, CHANGE DRUM PINHOLDER, CHANGE DRUM PIN
-
1314013140-1146 FORK, SHIFTFORK, SHIFT
-
13140A13140-1147 FORK, SHIFTFORK, SHIFT
-
1323913239-1129 DRUM, ASSY., CHANGEDRUM, ASSY., CHANGE
-
1401414014-1073 PLATE, POSITIONPLATE, POSITION
-
14014A14014-1074 PLATE, POSITIONPLATE, POSITION
-
2100721007-1192 ROTOR, TOP SWITCHROTOR, TOP SWITCH
-
4904749047-1055 ROD, SHIFTROD, SHIFT
-
9200292002-1592 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92002A92002-1873 BOLT, 6X45BOLT, 6X45
-
9202292022-1824 WASHERWASHER
-
9204292042-014 PIN, DOWEL, 4X15.8PIN, DOWEL, 4X15.8
-
92042A92042-020 PIN, DOWEL, 4X17.8PIN, DOWEL, 4X17.8
-
9204592045-1045 BEARING, BALL, 16005 (NTN)BEARING, BALL, 16005 (NTN)
