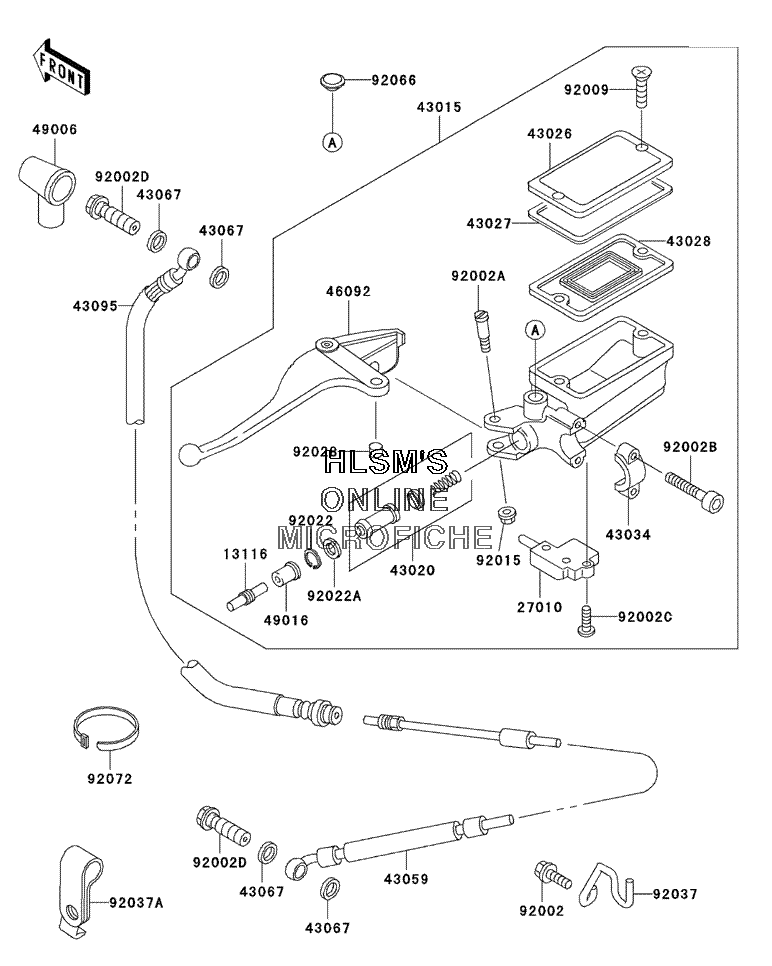

CLUTCH MASTER CYLINDER для Kawasaki Voyager XII - 2001 года выпуска

  • №
    Артикул
    Название
  • 13116
    13116-1110 ROD, PUSH, MASTER CYLINDER
    ROD, PUSH, MASTER CYLINDER
  • 27010
    27010-1406 SWITCH, CLUTCH
    SWITCH, CLUTCH
  • 43015
    43015-1507 CYLINDER, ASSY., MASTER, CLUTCH
    CYLINDER, ASSY., MASTER, CLUTCH
  • 43020
    43020-1055 PISTON, COMP, BRAKE, CLUTCH
    PISTON, COMP, BRAKE, CLUTCH
  • 43026
    43026-1076 CAP, BRAKE
    CAP, BRAKE
  • 43027
    43027-1055 PLATE, DIAPHRAGM
    PLATE, DIAPHRAGM
  • 43028
    43028-1058 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43034
    43034-1054 HOLDER, BRAKE, MASTER CYLINDER
    HOLDER, BRAKE, MASTER CYLINDER
  • 43059
    43059-1330 HOSE, BRAKE, CLUTCH
    HOSE, BRAKE, CLUTCH
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43095
    43095-1060 HOSE, BRAKE, CLUTCH
    HOSE, BRAKE, CLUTCH
  • 46092
    46092-1130 LEVER, GRIP, CLUTCH
    LEVER, GRIP, CLUTCH
  • 49006
    49006-1040 BOOT, DUST
    BOOT, DUST
  • 49016
    49016-1044 COVER, SEAL, MASTER CYLINDER
    COVER, SEAL, MASTER CYLINDER
  • 92002
    92002-1133 BOLT, 6X14
    BOLT, 6X14
  • 92002A
    92002-1322 BOLT, LEVER SET (BLACK)
    BOLT, LEVER SET (BLACK)
  • 92002B
    92002-1324 BOLT, SOCKET, 6X20 (BLACK)
    BOLT, SOCKET, 6X20 (BLACK)
  • 92002C
    92002-1325 SCREW, 4X16
    SCREW, 4X16
  • 92002D
    92002-1888 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92009
    92009-1458 SCREW, 4MM
    SCREW, 4MM
  • 92015
    92015-1233 NUT, FLANGED, 6MM (BLACK)
    NUT, FLANGED, 6MM (BLACK)
  • 92022
    92022-1605 CIRCLIP
    CIRCLIP
  • 92022A
    92022-1606 WASHER, PISTON
    WASHER, PISTON
  • 92028
    92028-1310 BUSHING, MASTER CYLINDER
    BUSHING, MASTER CYLINDER
  • 92037
    92037-1789 CLAMP, HOSE
    CLAMP, HOSE
  • 92037A
    92037-1944 CLAMP, HOSE
    CLAMP, HOSE
  • 92066
    92066-1077 PLUG, 9.5X8, POLYETHYLENE
    PLUG, 9.5X8, POLYETHYLENE
  • 92072
    92072-1195 BAND, L=202
    BAND, L=202
