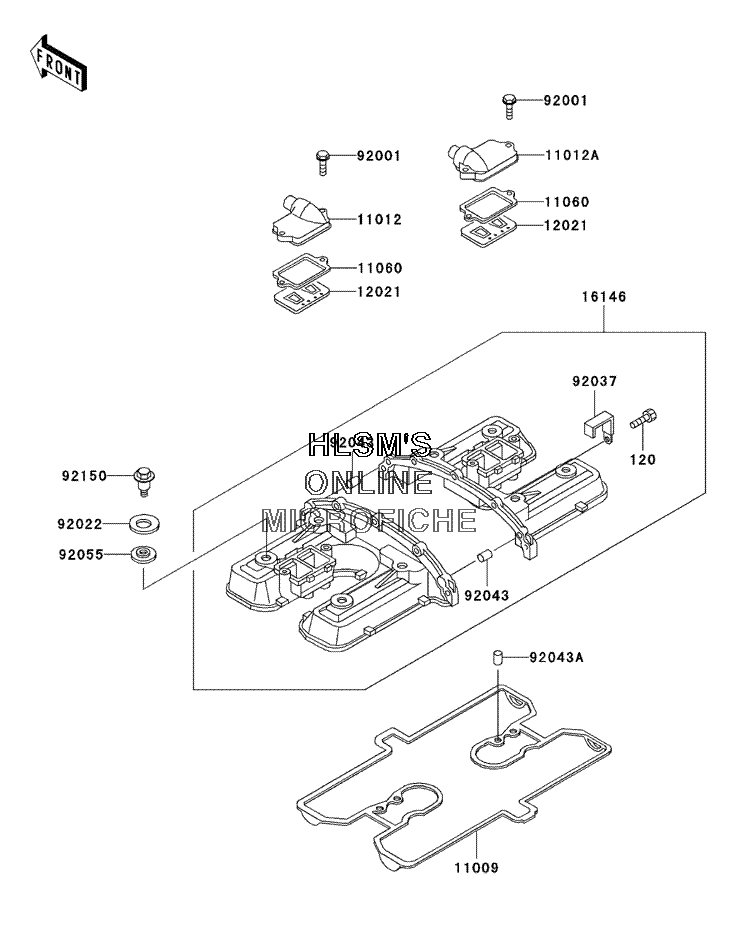

CYLINDER HEAD COVER для Kawasaki Voyager XII - 2001 года выпуска

  • №
    Артикул
    Название
  • 120
    120P0625 BOLT, SOCKET, 6X25
    BOLT, SOCKET, 6X25
  • 11009
    11009-1559 GASKET, CYLINDER HEAD COVER
    GASKET, CYLINDER HEAD COVER
  • 11012
    11012-1487 CAP, REED VALVE (LEFT)
    CAP, REED VALVE (LEFT)
  • 11012A
    11012-1488 CAP, REED VALVE (RIGHT)
    CAP, REED VALVE (RIGHT)
  • 11060
    11060-1096 GASKET, REED VALVE
    GASKET, REED VALVE
  • 12021
    12021-1119 VALVE, ASSY., REED
    VALVE, ASSY., REED
  • 16146
    16146-1089 COVER, ASSY., CYLINDER HEAD
    COVER, ASSY., CYLINDER HEAD
  • 92001
    92001-1352 BOLT, FLANGED, 6X22
    BOLT, FLANGED, 6X22
  • 92022
    92022-1637 WASHER, HEAD COVER BOLT
    WASHER, HEAD COVER BOLT
  • 92037
    92037-1764 CLAMP
    CLAMP
  • 92043
    92043-1262 PIN, 4.2X6X12
    PIN, 4.2X6X12
  • 92043A
    92043-1263 PIN, 6.2X8X14
    PIN, 6.2X8X14
  • 92055
    92055-1225 O-RING, HEAD COVER BOLT
    O-RING, HEAD COVER BOLT
  • 92150
    92150-1447 BOLT, HEAD COVER
    BOLT, HEAD COVER
