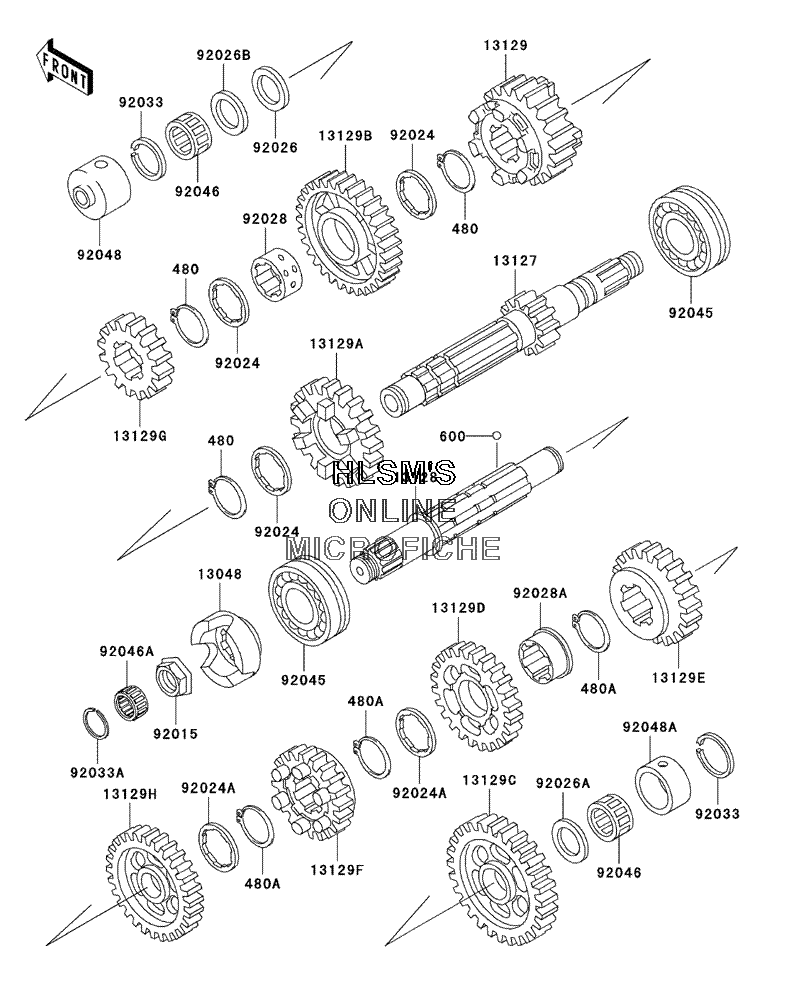

TRANSMISSION для Kawasaki Voyager XII - 2001 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2800 CIRCLIP, TYPE, C, 28MM
    CIRCLIP, TYPE, C, 28MM
  • 480A
    480J2900 CIRCLIP
    CIRCLIP
  • 600
    600A0500 BALL, STEEL, 5/32"
    BALL, STEEL, 5/32"
  • 13048
    13048-1066 CAM, DAMPER
    CAM, DAMPER
  • 13127
    13127-1133 SHAFT, TRANSMISSION INPUT (15 TEETH)
    SHAFT, TRANSMISSION INPUT (15 TEETH)
  • 13128
    13128-1130 SHAFT, TRANSMISSION OUTPUT
    SHAFT, TRANSMISSION OUTPUT
  • 13129
    13129-1765 GEAR, INPUT 3RD (24 TEETH)
    GEAR, INPUT 3RD (24 TEETH)
  • 13129A
    13129-1766 GEAR, INPUT 4TH (28 TEETH)
    GEAR, INPUT 4TH (28 TEETH)
  • 13129B
    13129-1767 GEAR, INPUT TOP (31 TEETH)
    GEAR, INPUT TOP (31 TEETH)
  • 13129C
    13129-1768 GEAR, OUTERPUT LOW (41 TEETH)
    GEAR, OUTERPUT LOW (41 TEETH)
  • 13129D
    13129-1770 GEAR, OUTERPUT 3RD (32 TEETH)
    GEAR, OUTERPUT 3RD (32 TEETH)
  • 13129E
    13129-1771 GEAR, OUTERPUT 4TH (29 TEETH)
    GEAR, OUTERPUT 4TH (29 TEETH)
  • 13129F
    13129-1772 GEAR, OUTERPUT TOP (26 TEETH)
    GEAR, OUTERPUT TOP (26 TEETH)
  • 13129G
    13129-1836 GEAR, INPUT 2ND (20 TEETH)
    GEAR, INPUT 2ND (20 TEETH)
  • 13129H
    13129-1837 GEAR, OUTERPUT 2ND (36 TEETH)
    GEAR, OUTERPUT 2ND (36 TEETH)
  • 92015
    92015-1543 NUT
    NUT
  • 92024
    92024-042 WASHER, TOOTHED, 26X35.5X1.5
    WASHER, TOOTHED, 26X35.5X1.5
  • 92024A
    92024-043 WASHER, TOOTHED, 30.3X40X1.5
    WASHER, TOOTHED, 30.3X40X1.5
  • 92026
    92026-1020 SPACER, 22X35.5X1.0
    SPACER, 22X35.5X1.0
  • 92026A
    92026-1225 SPACER, 22X35.5X2.4
    SPACER, 22X35.5X2.4
  • 92026B
    92026-1226 SPACER, 22X35.5X1.8
    SPACER, 22X35.5X1.8
  • 92028
    92028-1124 BUSHING, TOP GEAR
    BUSHING, TOP GEAR
  • 92028A
    92028-1403 BUSHING
    BUSHING
  • 92033
    92033-025 RING, SNAP, 20X25.5X1.2
    RING, SNAP, 20X25.5X1.2
  • 92033A
    92033-1208 RING, SNAP
    RING, SNAP
  • 92045
    92045-1197 BEARING, BALL
    BEARING, BALL
  • 92046
    92046-031 BEARING, NEEDLE, FWF, 223014
    BEARING, NEEDLE, FWF, 223014
  • 92046A
    92046-1154 BEARING, NEEDLE, K182420V1
    BEARING, NEEDLE, K182420V1
  • 92048
    92048-1052 RACE, INPUT SHAFT
    RACE, INPUT SHAFT
  • 92048A
    92048-1053 RACE, 30X38X15
    RACE, 30X38X15
