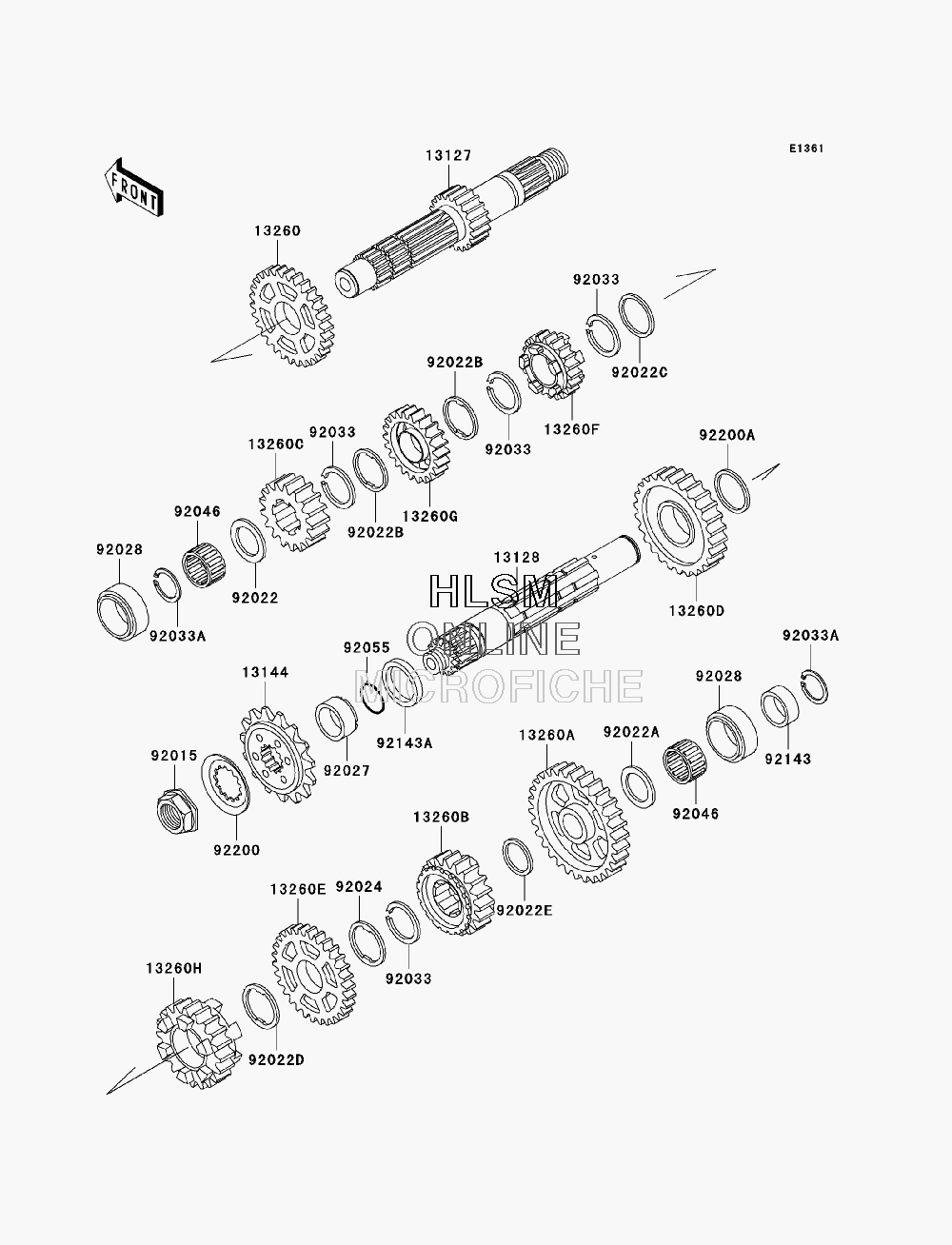

TRANSMISSION для Kawasaki KLR650 - 2006 года выпуска
-
№АртикулНазвание
-
1312713127-1147 SHAFT-TRANSMISSION INPUT,15TSHAFT-TRANSMISSION INPUT,15T
-
1312813128-1203 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-1253 SPROCKET-OUTPUT,15TSPROCKET-OUTPUT,15T
-
1326013260-1326 GEAR,INPUT TOP,24TGEAR,INPUT TOP,24T
-
13260A13260-1327 GEAR,OUTPUT LOW,34TGEAR,OUTPUT LOW,34T
-
13260B13260-1331 GEAR,OUTPUT TOP,19TGEAR,OUTPUT TOP,19T
-
13260C13260-1464 GEAR,INPUT 2ND,18TGEAR,INPUT 2ND,18T
-
13260D13260-1465 GEAR,OUTPUT 2ND,26TGEAR,OUTPUT 2ND,26T
-
13260E13260-1467 GEAR,OUTPUT 3RD,25TGEAR,OUTPUT 3RD,25T
-
13260F13260-1518 GEAR,INPUT 3RD,22TGEAR,INPUT 3RD,22T
-
13260G13260-1519 GEAR,INPUT 4TH,22TGEAR,INPUT 4TH,22T
-
13260H13260-1520 GEAR,OUTPUT 4TH,21TGEAR,OUTPUT 4TH,21T
-
9201592015-1963 NUT,20MMNUT,20MM
-
9202292022-112 WASHER,20.5X30X1,STEELWASHER,20.5X30X1,STEEL
-
92022A92022-1479 WASHER,20.3X29X0.5WASHER,20.3X29X0.5
-
92022B92022-1482 WASHER,TOOTHED,25.3X29.5X0.5WASHER,TOOTHED,25.3X29.5X0.5
-
92022C92022-159 WASHER,25.3X30X0.5WASHER,25.3X30X0.5
-
92022D92022-225 WASHER,25.3X32X0.5WASHER,25.3X32X0.5
-
92022E92022-252 WASHER,20.5X25.5X0.5WASHER,20.5X25.5X0.5
-
9202492024-038 WASHER,TOOTHED,22.5X31X0.5WASHER,TOOTHED,22.5X31X0.5
-
9202792027-1800 COLLAR,25X32X15.3COLLAR,25X32X15.3
-
9202892028-131 BUSHING,26X35X14BUSHING,26X35X14
-
9203392033-026 RING-SNAP,24MMRING-SNAP,24MM
-
92033A92033-029 RING-SNAP,18MMRING-SNAP,18MM
-
9204692046-1170 BEARING-NEEDLE,KT202614BEARING-NEEDLE,KT202614
-
9205592055-1293 RING-O,21.5X1.5RING-O,21.5X1.5
-
9214392143-1624 COLLAR,20X25X9.5COLLAR,20X25X9.5
-
92143A92143-1721 COLLAR,25X32X3.0COLLAR,25X32X3.0
-
9220092200-1065 WASHERWASHER
-
92200A92200-1170 WASHER,2ND GEARWASHER,2ND GEAR
