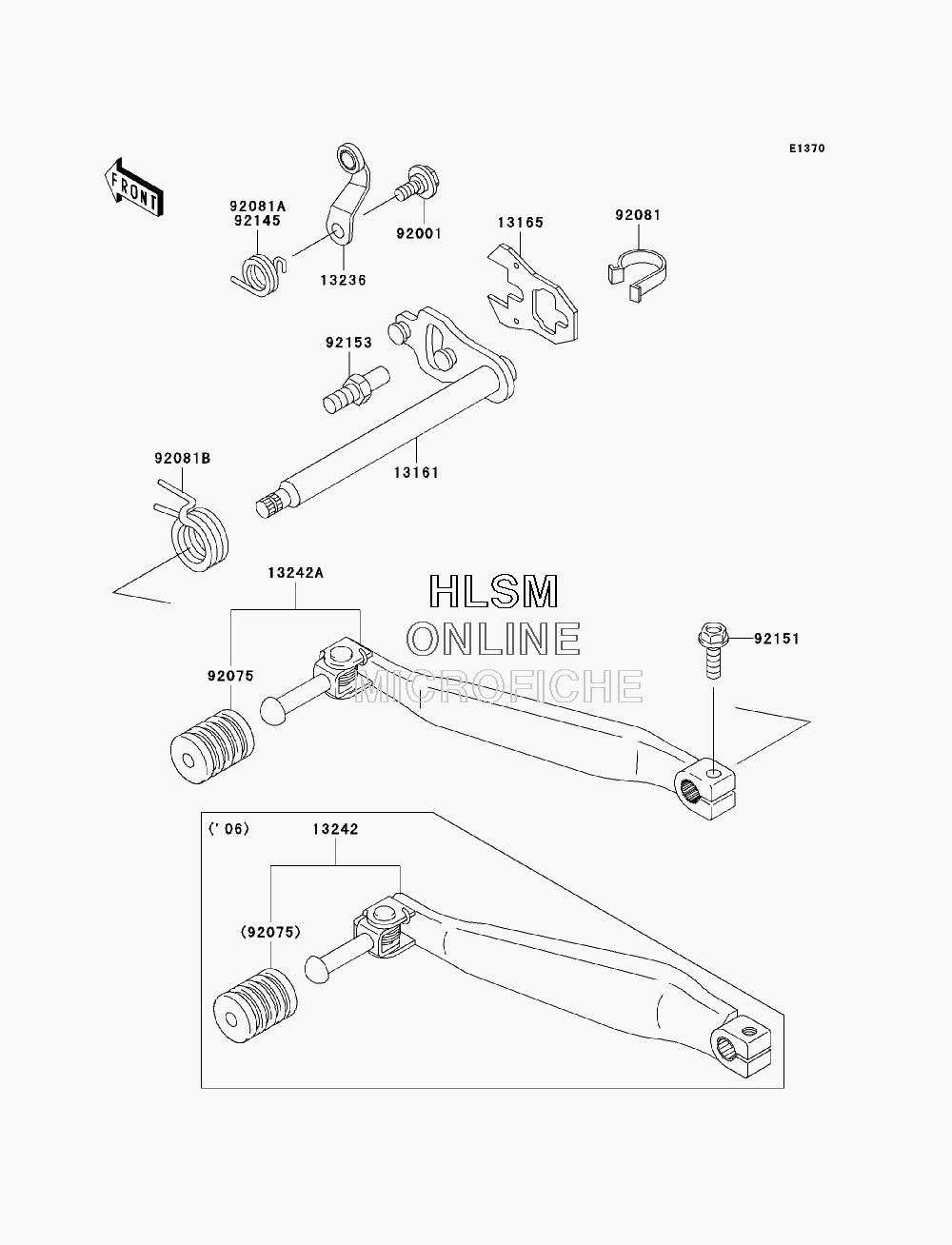

GEAR CHANGE MECHANISM для Kawasaki KLR650 - 2006 года выпуска`
-
№АртикулНазвание
-
1316113161-1104 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1316513165-1120 PAWLPAWL
-
1323613236-1101 LEVER-COMPLEVER-COMP
-
1324213242-0011 LEVER-ASSY-CHANGE,PEDALLEVER-ASSY-CHANGE,PEDAL
-
9200192001-1715 BOLT,FLANGED,6X14BOLT,FLANGED,6X14
-
9207592075-1944 DAMPER,CHANGE PEDALDAMPER,CHANGE PEDAL
-
9208192081-1493 SPRING,CHANGE LEVERSPRING,CHANGE LEVER
-
92081A92081-1496 SPRINGSPRING
-
92081B92081-1750 SPRING,CHANGE PEDAL RETURNSPRING,CHANGE PEDAL RETURN
-
9215192151-1450 BOLT,6X20BOLT,6X20
-
9215392153-0720 BOLT,8X15.5BOLT,8X15.5
