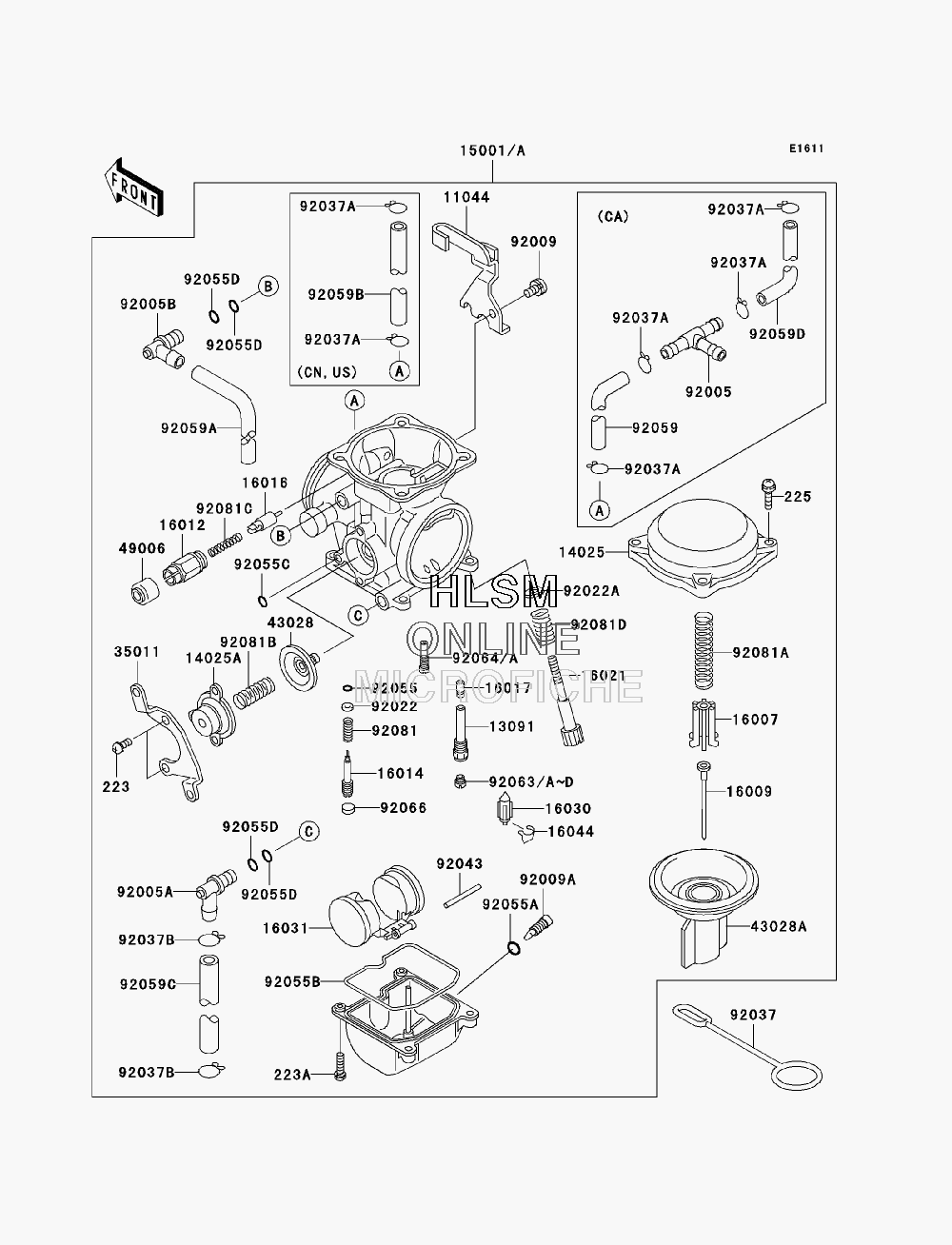

CARBURETOR для Kawasaki KLR650 - 2006 года выпуска

  • №
    Артикул
    Название
  • 11044
    11044-1353 BRACKET,THROTTLE CABLE
    BRACKET,THROTTLE CABLE
  • 13091
    13091-1425 HOLDER,NEEDLE JET
    HOLDER,NEEDLE JET
  • 14025
    14025-1890 COVER,MIXING CHAMBER
    COVER,MIXING CHAMBER
  • 14025A
    14025-1903 COVER,AIR CUT VALVE
    COVER,AIR CUT VALVE
  • 15001
    15001-1327 CARBURETOR-ASSY (EXCEPT CALIF.)
    CARBURETOR-ASSY (EXCEPT CALIF.)
  • 15001A
    15001-1368 CARBURETOR-ASSY (CALIF. ONLY)
    CARBURETOR-ASSY (CALIF. ONLY)
  • 16007
    16007-1113 SEAT-SPRING,DIAPHRAGM VALVE
    SEAT-SPRING,DIAPHRAGM VALVE
  • 16009
    16009-1344 NEEDLE-JET,N31R
    NEEDLE-JET,N31R
  • 16012
    16012-1055 CAP-STARTER PLUNGER
    CAP-STARTER PLUNGER
  • 16014
    16014-1053 SCREW-PILOT AIR
    SCREW-PILOT AIR
  • 16016
    16016-1057 PLUNGER
    PLUNGER
  • 16017
    16017-1254 JET-NEEDLE,#6
    JET-NEEDLE,#6
  • 16021
    16021-1109 SCREW-THROTTLE STOP
    SCREW-THROTTLE STOP
  • 16030
    16030-1057 VALVE-FLOAT
    VALVE-FLOAT
  • 16031
    16031-1056 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP,FLOAT VALVE
    CLAMP,FLOAT VALVE
  • 35011
    35011-1232 STAY,AIR CUT VALVE
    STAY,AIR CUT VALVE
  • 43028
    43028-1053 DIAPHRAGM,5.9MM,AIR CUT VALVE
    DIAPHRAGM,5.9MM,AIR CUT VALVE
  • 43028A
    43028-1062 DIAPHRAGM,VALVE
    DIAPHRAGM,VALVE
  • 49006
    49006-1165 BOOT,STARTER PLUNGER
    BOOT,STARTER PLUNGER
  • 92005
    92005-1112 FITTING,FUEL,T-TYPE (CALIF. ONLY)
    FITTING,FUEL,T-TYPE (CALIF. ONLY)
  • 92005A
    92005-1120 FITTING,L-TYPE
    FITTING,L-TYPE
  • 92005B
    92005-1144 FITTING,L-TYPE
    FITTING,L-TYPE
  • 92009
    92009-1365 SCREW,5X10
    SCREW,5X10
  • 92009A
    92009-1551 SCREW,DRAIN,6X0.75
    SCREW,DRAIN,6X0.75
  • 92022
    92022-1003 WASHER,PLAIN
    WASHER,PLAIN
  • 92022A
    92022-1587 WASHER,THROTTLE STOP SCREW
    WASHER,THROTTLE STOP SCREW
  • 92037
    92037-134 CLAMP,OVERFLOW TUBE
    CLAMP,OVERFLOW TUBE
  • 92037A
    92037-1477 CLAMP,TUBE (EXCEPT CALIF.)
    CLAMP,TUBE (EXCEPT CALIF.)
  • 92037A
    92037-1477 CLAMP,TUBE (CALIF. ONLY)
    CLAMP,TUBE (CALIF. ONLY)
  • 92037B
    92037-1531 CLAMP,TUBE
    CLAMP,TUBE
  • 92043
    92043-1207 PIN,FLOAT
    PIN,FLOAT
  • 92055
    92055-1002 RING-O,PILOT ADJUST
    RING-O,PILOT ADJUST
  • 92055A
    92055-1053 RING-O
    RING-O
  • 92055B
    92055-1222 RING-O,FLOAT CHAMBER
    RING-O,FLOAT CHAMBER
  • 92055C
    92055-1245 RING-O
    RING-O
  • 92055D
    92055-1246 RING-O
    RING-O
  • 92059
    92059-1713 TUBE,5X9X120 (CALIF. ONLY)
    TUBE,5X9X120 (CALIF. ONLY)
  • 92059A
    92059-1727 TUBE,6.5X9.5X430
    TUBE,6.5X9.5X430
  • 92059B
    92059-1836 TUBE,5X9X220 (EXCEPT CALIF.)
    TUBE,5X9X220 (EXCEPT CALIF.)
  • 92059C
    92059-1837 TUBE,6.5X11.5X170
    TUBE,6.5X11.5X170
  • 92059D
    92059-1839 TUBE,5X9X100 (CALIF. ONLY)
    TUBE,5X9X100 (CALIF. ONLY)
  • 92063
    92063-1016 JET-MAIN,#142 (OPTION)
    JET-MAIN,#142 (OPTION)
  • 92063A
    92063-1017 JET-MAIN,#145 (OPTION)
    JET-MAIN,#145 (OPTION)
  • 92063B
    92063-1324 JET-MAIN,#148
    JET-MAIN,#148
  • 92063C
    92063-1330 JET-MAIN,#150 (OPTION)
    JET-MAIN,#150 (OPTION)
  • 92063D
    92063-1331 JET-MAIN,#152 (OPTION)
    JET-MAIN,#152 (OPTION)
  • 92064
    92064-1050 JET-PILOT,#38 (OPTION)
    JET-PILOT,#38 (OPTION)
  • 92064A
    92064-1108 JET-PILOT,#40
    JET-PILOT,#40
  • 223
    223C0410 SCREW-PAN-WS-CROS,4X10
    SCREW-PAN-WS-CROS,4X10
  • 223A
    223C0416 SCREW-PAN-WS-CROS,4X16
    SCREW-PAN-WS-CROS,4X16
  • 225
    225C0418 SCREW-PAN-WSP-CROS,4X18
    SCREW-PAN-WSP-CROS,4X18
  • 92066
    92066-1051 PLUG,PILOT AIR SCREW,6.9X2
    PLUG,PILOT AIR SCREW,6.9X2
  • 92081
    92081-1002 SPRING,PILOT ADJUST SCREW
    SPRING,PILOT ADJUST SCREW
  • 92081A
    92081-1718 SPRING,DIAPHRAGM VALVE
    SPRING,DIAPHRAGM VALVE
  • 92081B
    92081-1719 SPRING,AIR CUT VALVE
    SPRING,AIR CUT VALVE
  • 92081C
    92081-1720 SPRING,PLUNGER
    SPRING,PLUNGER
  • 92081D
    92081-1721 SPRING,THROTTLE STOP SCREW
    SPRING,THROTTLE STOP SCREW
