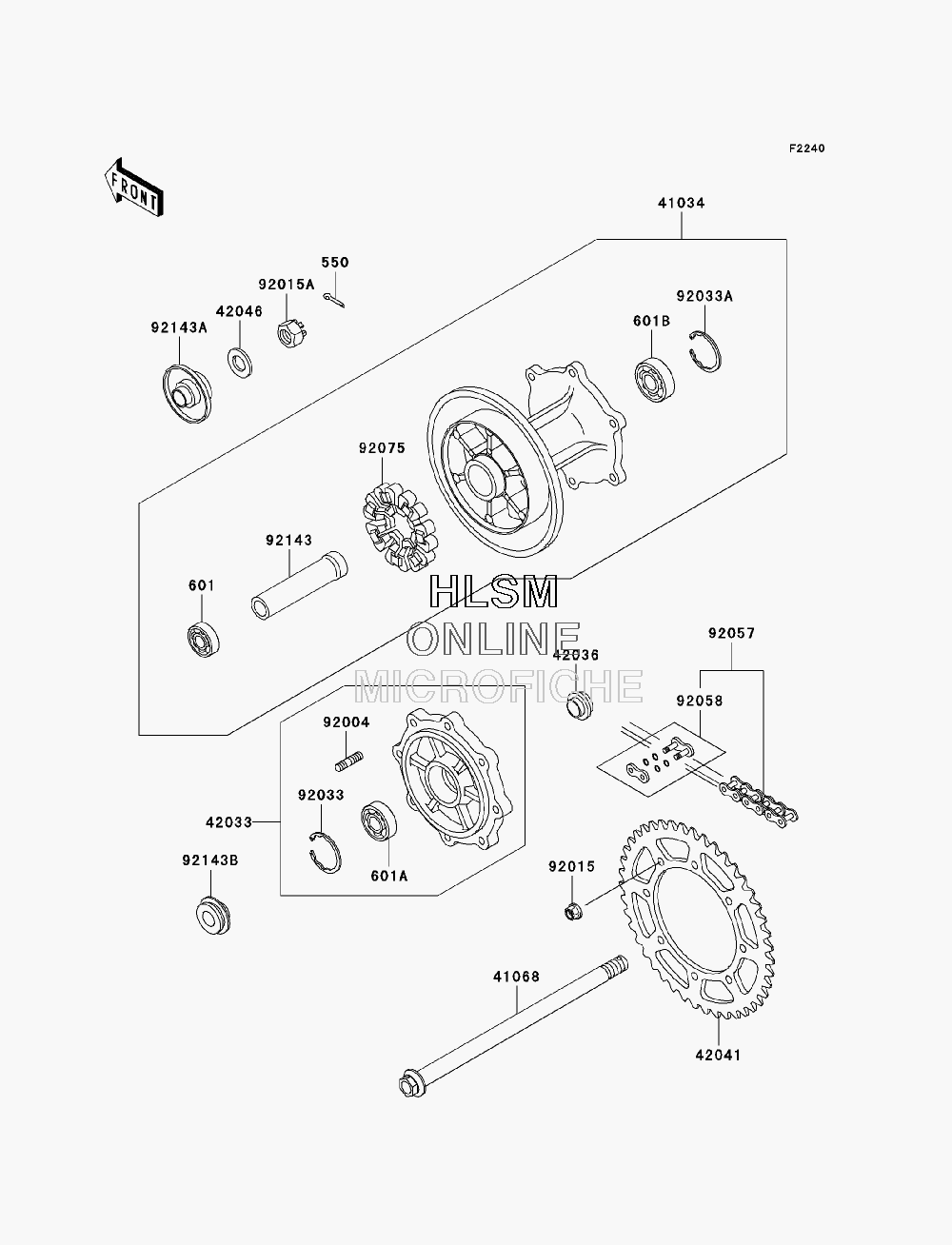

REAR HUB для Kawasaki KLR650 - 2006 года выпуска

  • №
    Артикул
    Название
  • 550
    550D4035 PIN-COTTER,4.0X35
    PIN-COTTER,4.0X35
  • 601
    601B6003G BEARING-BALL,#6003G
    BEARING-BALL,#6003G
  • 601A
    601B6004UG BEARING-BALL,#6004UG
    BEARING-BALL,#6004UG
  • 601B
    601B6204UG BEARING-BALL,#6204UG
    BEARING-BALL,#6204UG
  • 41034
    41034-1154 DRUM-ASSY, REAR BRAKE
    DRUM-ASSY, REAR BRAKE
  • 41068
    41068-1237 AXLE, REAR
    AXLE, REAR
  • 42033
    42033-1112 COUPLING-ASSY, REAR HUB
    COUPLING-ASSY, REAR HUB
  • 42036
    42036-1206 SLEEVE, REAR AXLE,L=16
    SLEEVE, REAR AXLE,L=16
  • 42041
    42041-1260 SPROCKET-HUB,43T
    SPROCKET-HUB,43T
  • 42046
    42046-009 WASHER,17.3X32X3.2
    WASHER,17.3X32X3.2
  • 92004
    92004-1150 STUD,8X16
    STUD,8X16
  • 92015
    92015-1432 NUT,8MM
    NUT,8MM
  • 92015A
    92015-1947 NUT,CASTLE,16MM
    NUT,CASTLE,16MM
  • 92033
    92033-1041 RING-SNAP,42MM
    RING-SNAP,42MM
  • 92033A
    92033-1042 RING-SNAP,47MM
    RING-SNAP,47MM
  • 92057
    92057-0019 CHAIN,DRIVE,EK520SR-O2X106L
    CHAIN,DRIVE,EK520SR-O2X106L
  • 92058
    92058-1102 JOINT-CHAIN,DRIVE
    JOINT-CHAIN,DRIVE
  • 92075
    92075-1068 DAMPER,SHOCK, REAR HUB
    DAMPER,SHOCK, REAR HUB
  • 92143
    92143-1060 COLLAR, REAR BRAKE DRUM,L=113
    COLLAR, REAR BRAKE DRUM,L=113
  • 92143A
    92143-1061 COLLAR, REAR AXLE,L=30
    COLLAR, REAR AXLE,L=30
  • 92143B
    92143-1062 COLLAR, REAR AXLE,L=17
    COLLAR, REAR AXLE,L=17
