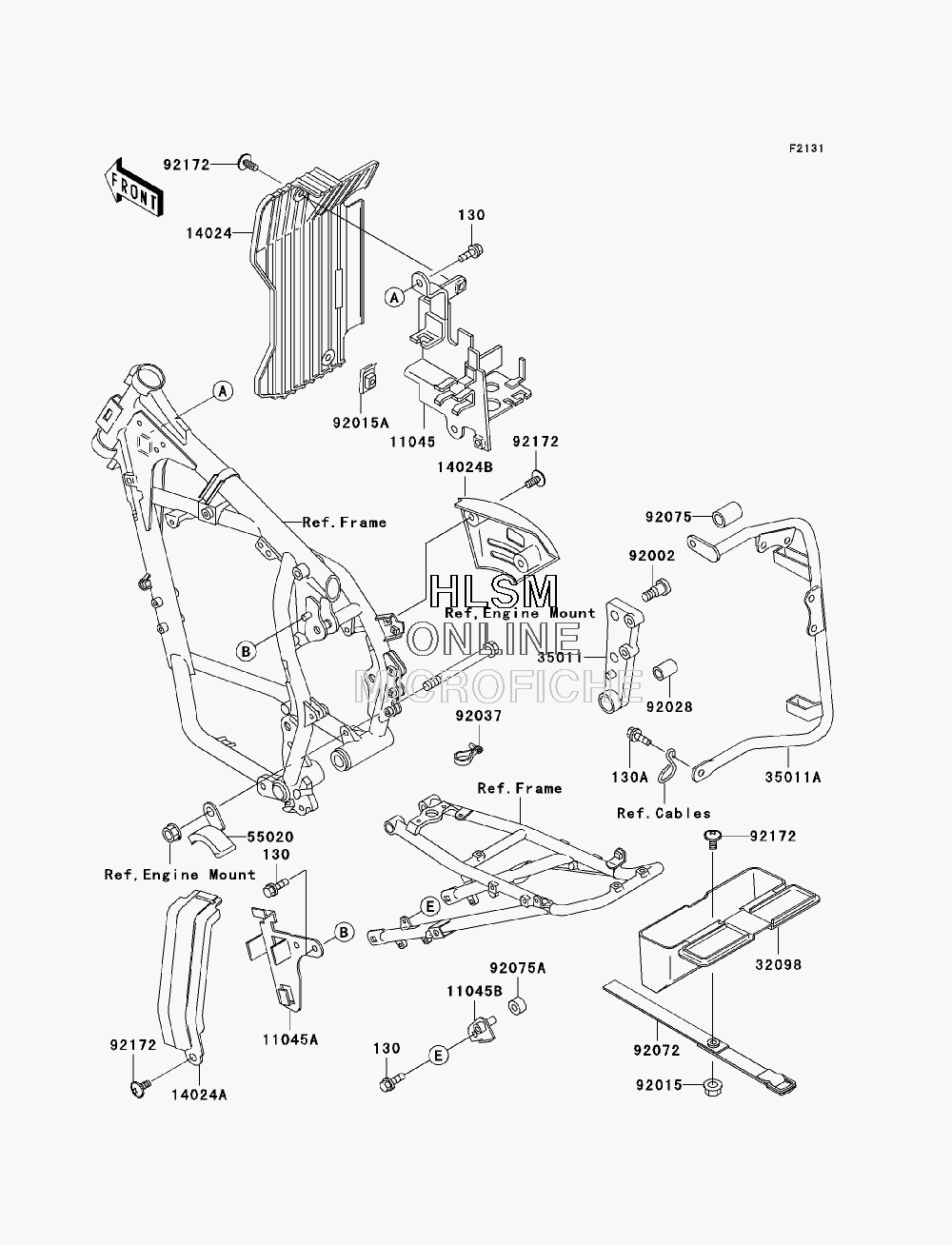

FRAME FITTING(S) для Kawasaki KLR650 - 2006 года выпуска`
-
№АртикулНазвание
-
130130J0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
130A130J0614 BOLT-FLANGED,6X14BOLT-FLANGED,6X14
-
1104511045-1358 BRACKET,ELECTRIC, RIGHT HANDBRACKET,ELECTRIC, RIGHT HAND
-
11045A11045-1359 BRACKET,ELECTRIC, LEFT HANDBRACKET,ELECTRIC, LEFT HAND
-
11045B11045-1360 BRACKETBRACKET
-
1402414024-1372 COVER, FRONT RESERVOIRCOVER, FRONT RESERVOIR
-
14024A14024-1373 COVER,SIDE STAND SWITCHCOVER,SIDE STAND SWITCH
-
14024B14024-1470 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
3209832098-1074-6Z CASE-TOOL,F.BLACKCASE-TOOL,F.BLACK
-
3501135011-1327 STAYSTAY
-
35011A35011-1370 STAY,HORN & RESERVOIR TANKSTAY,HORN & RESERVOIR TANK
-
5502055020-1266 GUARD,CHAINGUARD,CHAIN
-
9200292002-1598 BOLT,SOCKET,8X23.5BOLT,SOCKET,8X23.5
-
9201592015-1233 NUT,FLANGED,6MM,BLACKNUT,FLANGED,6MM,BLACK
-
92015A92015-1602 NUT,6MMNUT,6MM
-
9202892028-1259 BUSHINGBUSHING
-
9203792037-1903 CLAMP,SPEED,L=80.5CLAMP,SPEED,L=80.5
-
9207292072-1219 BAND,TOOL CASEBAND,TOOL CASE
-
9207592075-1941 DAMPERDAMPER
-
92075A92075-243 DAMPERDAMPER
-
9217292172-0004 SCREW,6X14SCREW,6X14
