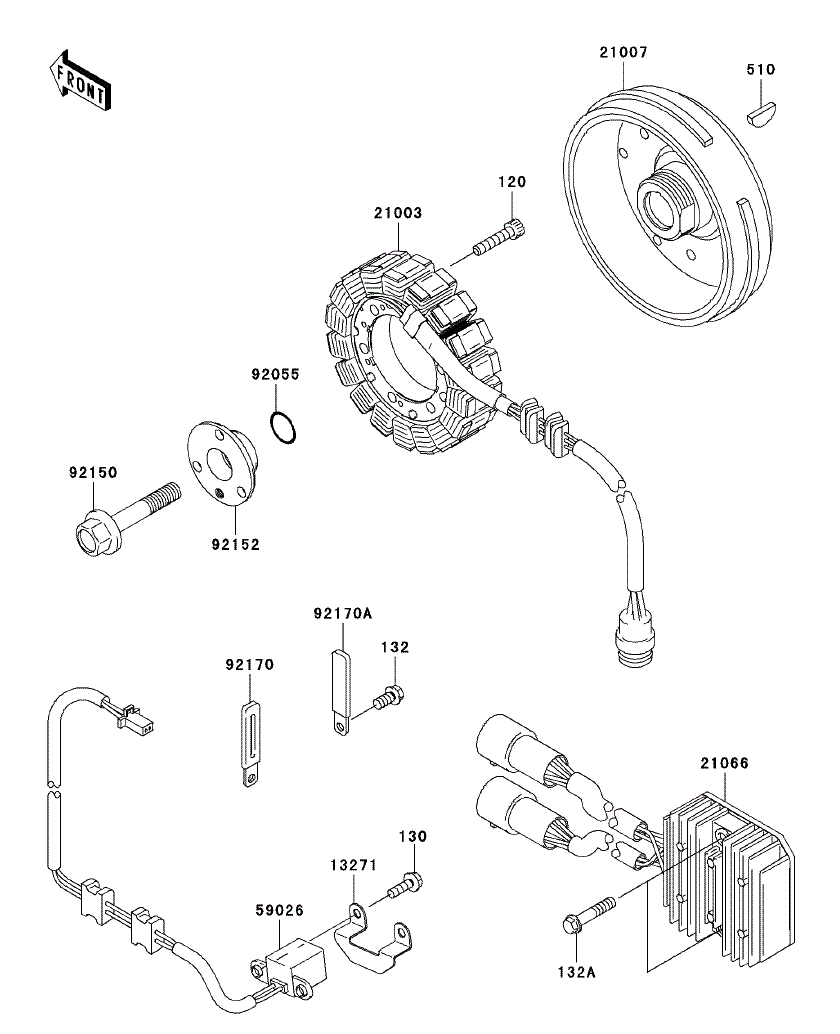

GENERATOR для Kawasaki KFX700 (SILVER) (KS700C6F) - 2006 года выпуска`
-
№АртикулНазвание
-
120120P0628 BOLT-SOCKET, 6X28BOLT-SOCKET, 6X28
-
130130G0516 BOLT-FLANGED, 5X16BOLT-FLANGED, 5X16
-
132132Y0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132Y0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
510510A4200 KEY-WOODRUFFKEY-WOODRUFF
-
1327113271-1369 PLATEPLATE
-
2100321003-0003 STATORSTATOR
-
2100721007-1367 ROTORROTOR
-
2106621066-1112 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
5902659026-1159 COIL-PULSINGCOIL-PULSING
-
9205592055-1215 RING-O, 19.8X2.2RING-O, 19.8X2.2
-
9215092150-1987 BOLT, 12X65BOLT, 12X65
-
9215292152-1467 COLLAR, 20X51X17COLLAR, 20X51X17
-
9217092170-1514 CLAMPCLAMP
-
92170A92170-1925 CLAMPCLAMP
