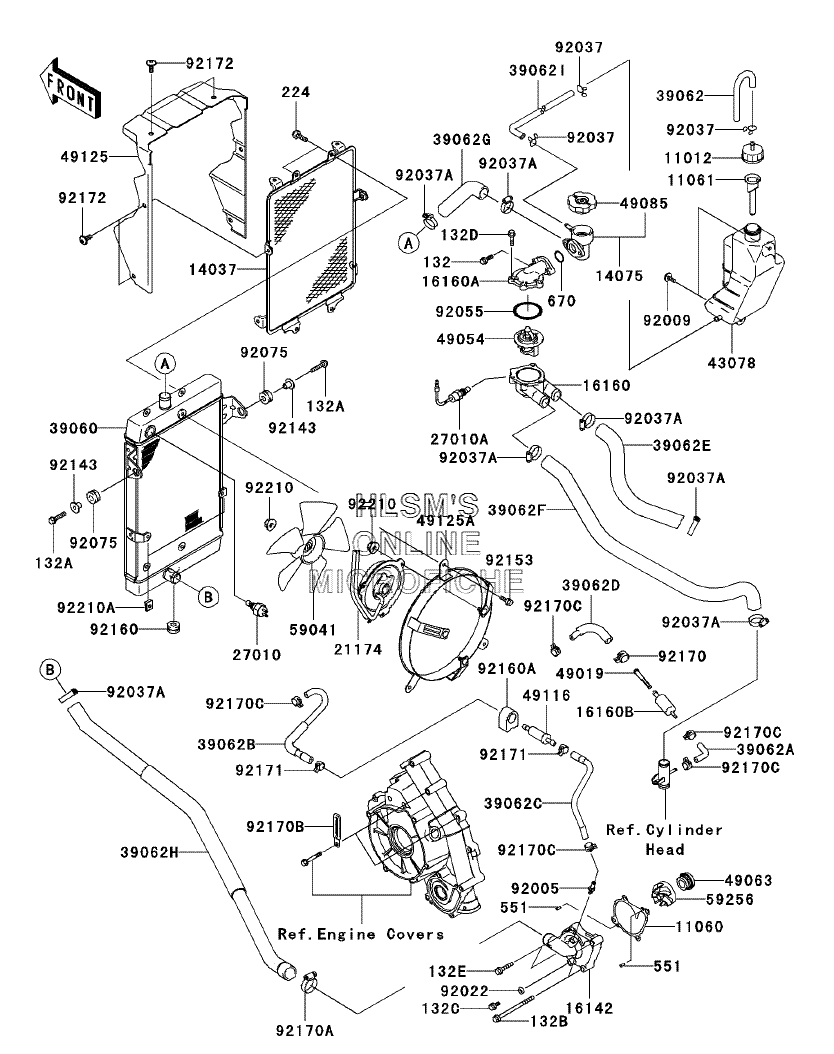

RADIATOR для Kawasaki KFX700 (SILVER) (KS700C6F) - 2006 года выпуска
-
№АртикулНазвание
-
1101211012-1854 CAPCAP
-
1106011060-1964 GASKET, WATER PUMPGASKET, WATER PUMP
-
1106111061-0043 GASKETGASKET
-
1403714037-0017 SCREENSCREEN
-
1407514075-1115 CAP-ASSY, PRESSURECAP-ASSY, PRESSURE
-
1614216142-0002 COVER-PUMP, WATERCOVER-PUMP, WATER
-
1616016160-1112 BODY, THERMOSTAT (LOWER)BODY, THERMOSTAT (LOWER)
-
16160A16160-1113 BODY, THERMOSTAT (UPPER)BODY, THERMOSTAT (UPPER)
-
16160B16160-1359 BODYBODY
-
2117421174-0001 MOTOR-ELECTRICMOTOR-ELECTRIC
-
2701027010-1202 SWITCH, FANSWITCH, FAN
-
27010A27010-1346 SWITCH, SENSOR WATERSWITCH, SENSOR WATER
-
3906039060-0006 RADIATORRADIATOR
-
3906239062-0002 HOSE-COOLING, BREATHERHOSE-COOLING, BREATHER
-
39062A39062-1816 HOSE-COOLING, HEAD-FILTERHOSE-COOLING, HEAD-FILTER
-
39062B39062-1817 HOSE-COOLING, CARB-VALVEHOSE-COOLING, CARB-VALVE
-
39062C39062-1818 HOSE-COOLING, VALVE-WATER PUMPHOSE-COOLING, VALVE-WATER PUMP
-
39062D39062-1858 HOSE-COOLING, FILTER-CARBHOSE-COOLING, FILTER-CARB
-
39062E39062-1920 HOSE-COOLING, FRONT HEAD-THERMOHOSE-COOLING, FRONT HEAD-THERMO
-
39062F39062-1921 HOSE-COOLING, REAR HEAD-THERMOHOSE-COOLING, REAR HEAD-THERMO
-
39062G39062-1922 HOSE-COOLING, THERMO-RADIATORHOSE-COOLING, THERMO-RADIATOR
-
39062H39062-1923 HOSE-COOLING, RAD-WATER PUMPHOSE-COOLING, RAD-WATER PUMP
-
39062I39062-1924 HOSE-COOLING, RESERVOIR-THERMOHOSE-COOLING, RESERVOIR-THERMO
-
4307843078-0004 RESERVOIR, TANKRESERVOIR, TANK
-
4901949019-1068 FILTER-WATERFILTER-WATER
-
4905449054-1055 THERMOSTATTHERMOSTAT
-
4906349063-1055 SEAL-MECHANICAL, WATERSEAL-MECHANICAL, WATER
-
4908549085-1067 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
4911649116-1190 VALVE-ASSYVALVE-ASSY
-
4912549125-0003 SHROUDSHROUD
-
49125A49125-0007 SHROUDSHROUD
-
5904159041-0001 FANFAN
-
5925659256-1069 IMPELLERIMPELLER
-
9200592005-1337 FITTING, BLEED PIPEFITTING, BLEED PIPE
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1589 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9205592055-1279 RING-O, 44.7X2.4RING-O, 44.7X2.4
-
9207592075-209 DAMPERDAMPER
-
132132H0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
132A132H0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
132B132J0690 BOLT-FLANGED-SMALL, 6X90BOLT-FLANGED-SMALL, 6X90
-
132C132Y0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132D132Y0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132E132Y0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
224224C0612 SCREW-PAN-WP-CROS, 6X12SCREW-PAN-WP-CROS, 6X12
-
551551A0408 PIN-DOWEL, 4X8PIN-DOWEL, 4X8
-
670670B2020 O RING, 20MMO RING, 20MM
-
9214392143-1353 COLLARCOLLAR
-
9215392153-0456 BOLTBOLT
-
9216092160-1007 DAMPERDAMPER
-
92160A92160-1451 DAMPER, VALVEDAMPER, VALVE
-
9217092170-1491 CLAMPCLAMP
-
92170A92170-1497 CLAMPCLAMP
-
92170B92170-1514 CLAMPCLAMP
-
92170C92170-2042 CLAMPCLAMP
-
9217192171-0515 CLAMPCLAMP
-
9217292172-0005 SCREW, 6X10SCREW, 6X10
-
9221092210-0085 NUTNUT
-
92210A92210-0086 NUTNUT
