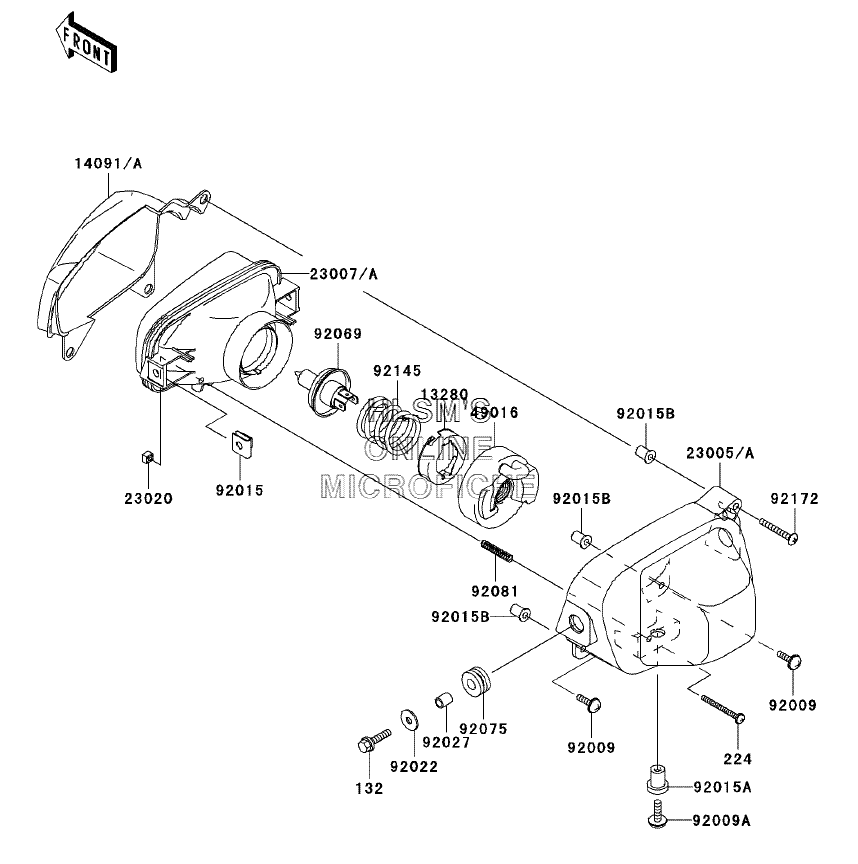

HEADLIGHT(S) для Kawasaki KFX700 (SILVER) (KS700C6F) - 2006 года выпуска
-
№АртикулНазвание
-
132132H0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
224224D0445 SCREW-PAN-WP-CROS, 4X45SCREW-PAN-WP-CROS, 4X45
-
1328013280-1198 HOLDER, BULB SETTINGHOLDER, BULB SETTING
-
1409114091-0061-6Z COVER, HEAD LAMP GRILL (LEFT) (BLACK)COVER, HEAD LAMP GRILL (LEFT) (BLACK)
-
14091A14091-0062-6Z COVER, HEAD LAMP GRILL (RIGHT/BLACK)COVER, HEAD LAMP GRILL (RIGHT/BLACK)
-
2300523005-1180 BODY-COMP-HEAD LAMP (LEFT)BODY-COMP-HEAD LAMP (LEFT)
-
23005A23005-1181 BODY-COMP-HEAD LAMP (RIGHT)BODY-COMP-HEAD LAMP (RIGHT)
-
2300723007-1389 LENS-COMP, HEAD LAMP (LEFT)LENS-COMP, HEAD LAMP (LEFT)
-
23007A23007-1390 LENS-COMP, HEAD LAMP (RIGHT)LENS-COMP, HEAD LAMP (RIGHT)
-
2302023020-018 NUT, 4MM, FOCUS ADJUSTNUT, 4MM, FOCUS ADJUST
-
4901649016-1213 COVER-SEAL, HEAD LAMPCOVER-SEAL, HEAD LAMP
-
9200992009-1654 SCREW, 5X16 (BLACK)SCREW, 5X16 (BLACK)
-
92009A92009-1664 SCREW, 6X22SCREW, 6X22
-
9201592015-1094 NUT, 6MMNUT, 6MM
-
92015A92015-1692 NUT, RUBBER, 6MMNUT, RUBBER, 6MM
-
92015B92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202292022-125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9202792027-162 COLLAR, 6.8X10X12COLLAR, 6.8X10X12
-
9206992069-1114 BULB, 12V 45/45W, T15BULB, 12V 45/45W, T15
-
9207592075-1690 DAMPERDAMPER
-
9208192081-1896 SPRING, FOCUS ADJUSTSPRING, FOCUS ADJUST
-
9214592145-1346 SPRING, BULB SETTINGSPRING, BULB SETTING
-
9217292172-0063 SCREW, 5X40SCREW, 5X40
