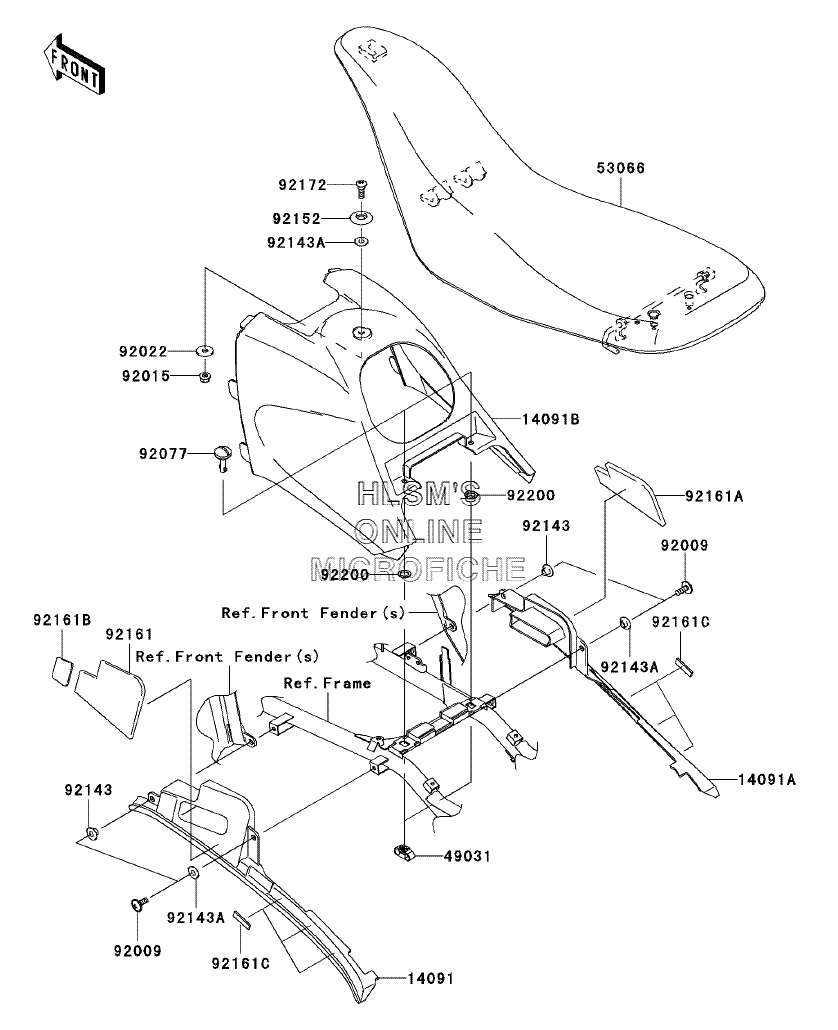

SEAT для Kawasaki KFX700 (SILVER) (KS700C6F) - 2006 года выпуска
-
№АртикулНазвание
-
1409114091-0089-6Z COVER, SIDE (LEFT) (F.BLACK)COVER, SIDE (LEFT) (F.BLACK)
-
14091A14091-0090-6Z COVER, SIDE (RIGHT) (F.BLACK)COVER, SIDE (RIGHT) (F.BLACK)
-
14091B14091-0482-824 COVER, AIR CLEANER (G.SILVER)COVER, AIR CLEANER (G.SILVER)
-
4903149031-1060 LATCHLATCH
-
5306653066-0114-MA SEAT-ASSY (BLACK)SEAT-ASSY (BLACK)
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9207792077-1129 KNOBKNOB
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9215292152-1346 COLLARCOLLAR
-
9216192161-0059 DAMPER, SIDE COVER (LEFT)DAMPER, SIDE COVER (LEFT)
-
92161A92161-0060 DAMPER, SIDE COVER (RIGHT)DAMPER, SIDE COVER (RIGHT)
-
92161B92161-0061 DAMPERDAMPER
-
92161C92161-0090 DAMPERDAMPER
-
9217292172-0062 SCREW, 6X19.5SCREW, 6X19.5
-
9220092200-1578 WASHERWASHER
