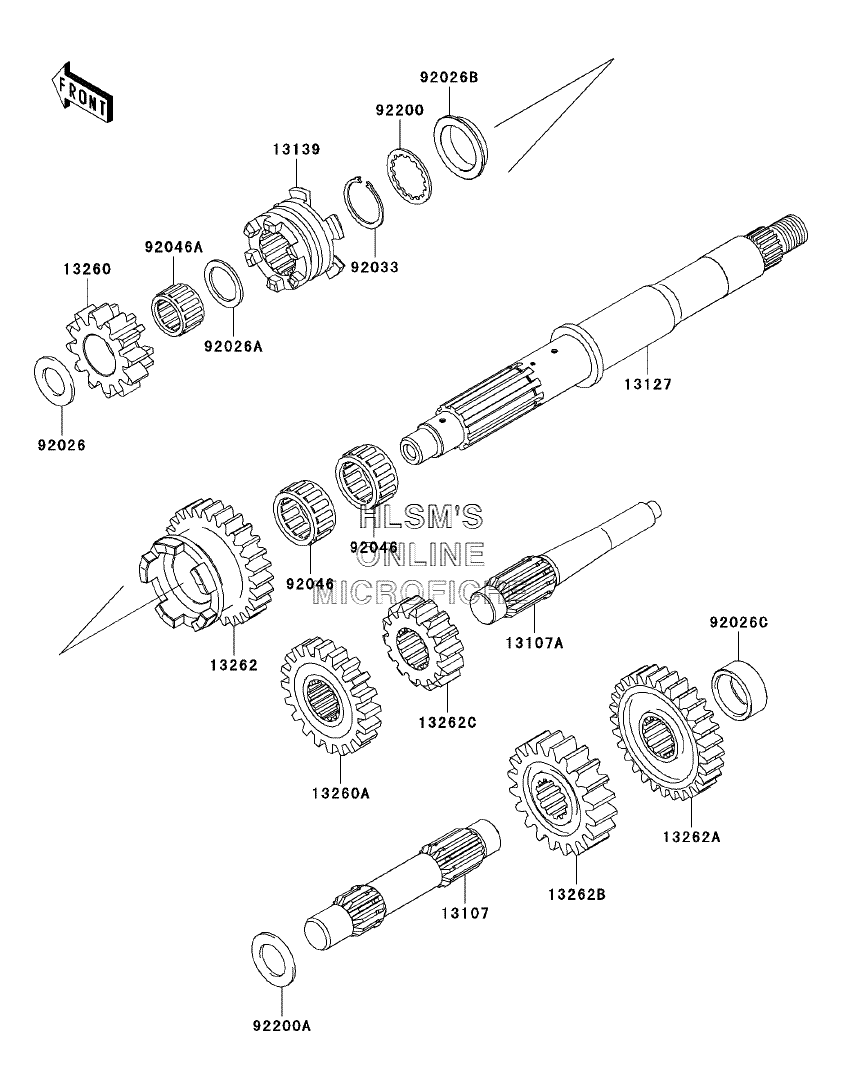

TRANSMISSION для Kawasaki KFX700 (SILVER) (KS700C6F) - 2006 года выпуска
-
№АртикулНазвание
-
1310713107-1436 SHAFT, COUNTERSHAFT, COUNTER
-
13107A13107-1437 SHAFT, REVERSE, IDLESHAFT, REVERSE, IDLE
-
1312713127-1282 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1313913139-0003 SHIFTERSHIFTER
-
1326013260-1868 GEAR, INPUT REVERSE (12 TEETH)GEAR, INPUT REVERSE (12 TEETH)
-
13260A13260-1873 GEAR, DRIVEN REVERSE (16 TEETH)GEAR, DRIVEN REVERSE (16 TEETH)
-
1326213262-0002 GEAR, INPUT HIGH (27 TEETH)GEAR, INPUT HIGH (27 TEETH)
-
13262A13262-0015 GEAR, DRIVEN HIGH (29 TEETH)GEAR, DRIVEN HIGH (29 TEETH)
-
13262B13262-1052 GEAR, OUTPUT DRIVE (20 TEETH)GEAR, OUTPUT DRIVE (20 TEETH)
-
13262C13262-1053 GEAR, OUTPUT REVERSE (14 TEETH)GEAR, OUTPUT REVERSE (14 TEETH)
-
9202692026-1415 SPACER, 17.3X30X2.0SPACER, 17.3X30X2.0
-
92026A92026-1568 SPACER, 21.2X29X1.6SPACER, 21.2X29X1.6
-
92026B92026-1629 SPACER, 28X39X8SPACER, 28X39X8
-
92026C92026-1630 SPACER, 25X32X13SPACER, 25X32X13
-
9203392033-1037 RING-SNAP, 25.9X30.6X1.2RING-SNAP, 25.9X30.6X1.2
-
9204692046-1278 BEARING-NEEDLEBEARING-NEEDLE
-
92046A92046-1279 BEARING-NEEDLE, REVERSE GEARBEARING-NEEDLE, REVERSE GEAR
-
9220092200-1240 WASHER, 28.5X34.0X1.5WASHER, 28.5X34.0X1.5
-
92200A92200-1351 WASHER, 20.3X33X2.0WASHER, 20.3X33X2.0
