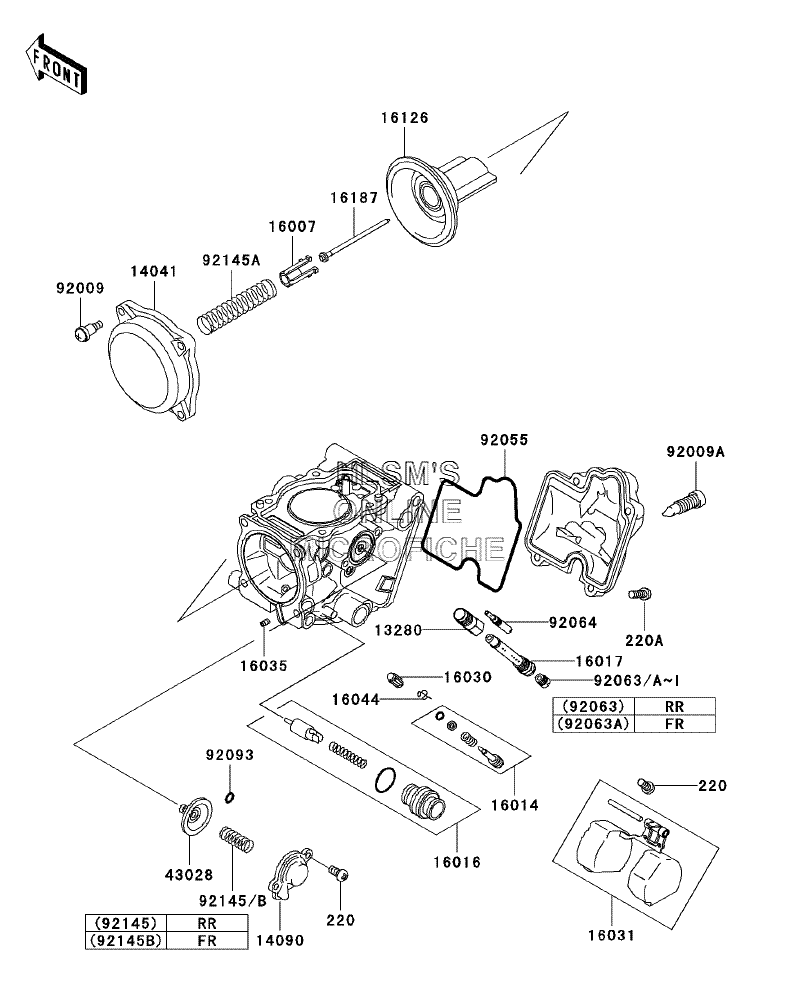

CARBURETOR PARTS для Kawasaki KFX700 (SILVER) (KS700C6F) - 2006 года выпуска
-
№АртикулНазвание
-
220220D0408 SCREW-PAN-CROS, 4X8SCREW-PAN-CROS, 4X8
-
1328013280-1096 HOLDER, JETHOLDER, JET
-
1404114041-1090 CAP-CHAMBER, MIXINGCAP-CHAMBER, MIXING
-
1409014090-1984 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1600716007-1120 SEAT-SPRING, THROTTLE VALVESEAT-SPRING, THROTTLE VALVE
-
1601416014-1105 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1117 PLUNGERPLUNGER
-
1601716017-1441 JET-NEEDLEJET-NEEDLE
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1097 FLOATFLOAT
-
1603516035-1055 JET-AIR, LEAKJET-AIR, LEAK
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1226 VALVE, VACUUMVALVE, VACUUM
-
1618716187-0021 NEEDLE-JET, NBZHNEEDLE-JET, NBZH
-
4302843028-1085 DIAPHRAGM, AIR CUT VALVEDIAPHRAGM, AIR CUT VALVE
-
9200992009-1549 SCREW, 4X4.4SCREW, 4X4.4
-
92009A92009-1551 SCREW, DRAIN, 6X0.75SCREW, DRAIN, 6X0.75
-
9205592055-1589 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
9206392063-1013 JET-MAIN, #140JET-MAIN, #140
-
92063A92063-1014 JET-MAIN, #135JET-MAIN, #135
-
92063B92063-1015 JET-MAIN, #138 (OPT)JET-MAIN, #138 (OPT)
-
92063C92063-1016 JET-MAIN, #142 (OPT)JET-MAIN, #142 (OPT)
-
92063D92063-1017 JET-MAIN, #145 (OPT)JET-MAIN, #145 (OPT)
-
92063E92063-1069 JET-MAIN, #125 (OPT)JET-MAIN, #125 (OPT)
-
92063F92063-1072 JET-MAIN, #120 (OPT)JET-MAIN, #120 (OPT)
-
92063G92063-1074 JET-MAIN, #128 (OPT)JET-MAIN, #128 (OPT)
-
92063H92063-1075 JET-MAIN, #130 (OPT)JET-MAIN, #130 (OPT)
-
92063I92063-1076 JET-MAIN, #132 (OPT)JET-MAIN, #132 (OPT)
-
9206492064-0005 JET-PILOT, #40JET-PILOT, #40
-
9209392093-1046 SEAL, "U"RINGSEAL, "U"RING
-
9214592145-0097 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
92145A92145-1227 SPRING, VACUUM VALVESPRING, VACUUM VALVE
-
92145B92145-1450 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
220A220D0414 SCREW-PAN-CROS, 4X14SCREW-PAN-CROS, 4X14
