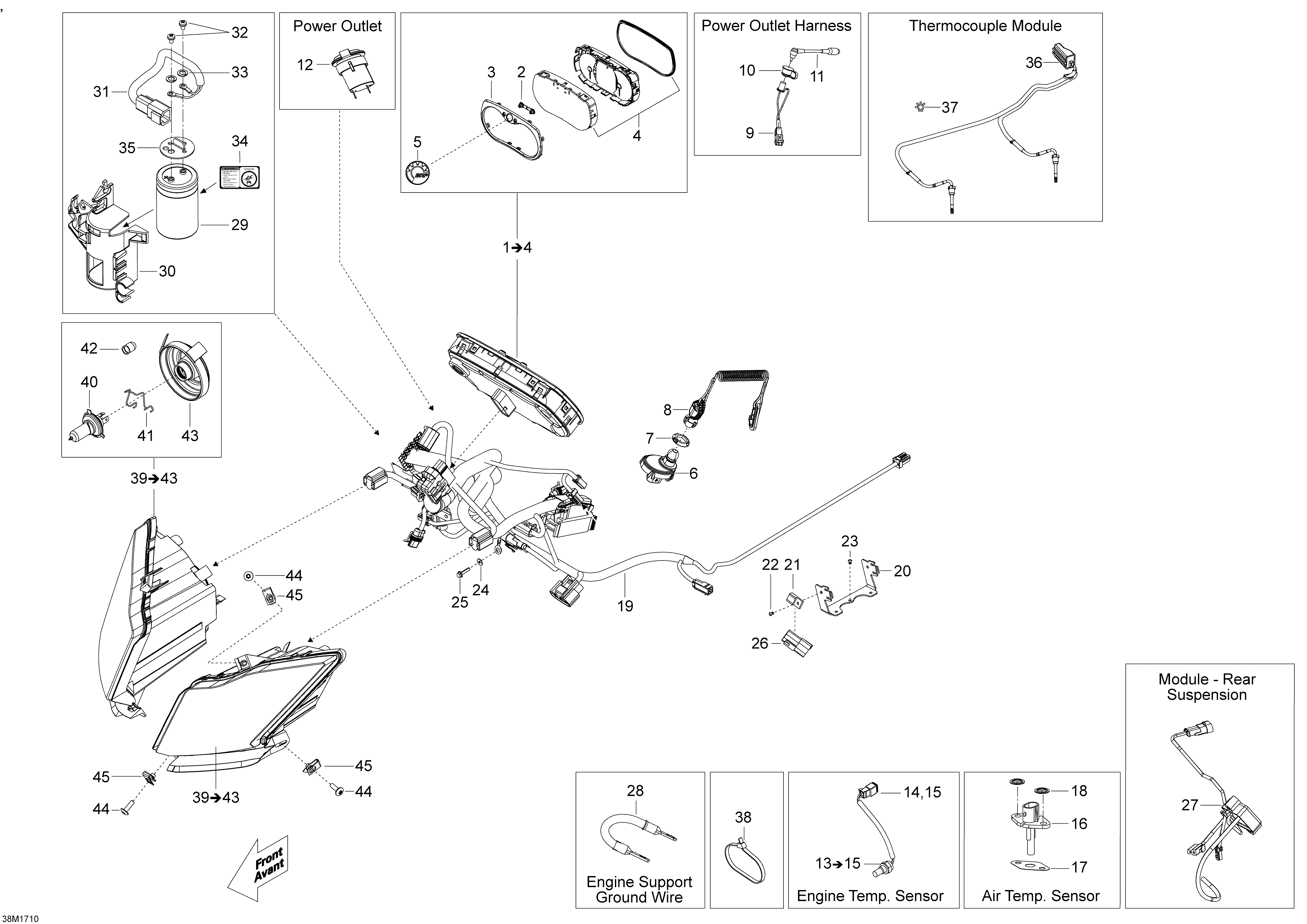

10- Electrical System для BRP Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME - 2017
-
№АртикулНазвание
-
1515177910 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
6515178225 DESS SwitchDESS Switch
-
7278002963 Safety NutSafety Nut
-
8515178038 KeyKey
-
9515177837 Visor Harness. Model LE, SEVisor Harness. Model LE, SE
-
10572103300 Cap. Model LE, SECap. Model LE, SE
-
11515175851 Extension. Model LE, SEExtension. Model LE, SE
-
12710001248 Outlet DCOutlet DC
-
13515177813 Temperature Sensor. Includes 13 To 15Temperature Sensor. Includes 13 To 15
-
14515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
15278000632 Female TerminalFemale Terminal
-
16515176366 Air Temperature SensorAir Temperature Sensor
-
17508000769 SealSeal
-
18389804300 Push NutPush Nut
-
19515178129 Main Harness. Model 600HO E-TECMain Harness. Model 600HO E-TEC
-
19515178130 Main Harness. Model 800R E-TECMain Harness. Model 800R E-TEC
-
20515177925 Fusebox SupportFusebox Support
-
21270000141 ClipClip
-
22293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
23390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
24234141601 Lock Washer 4 mmLock Washer 4 mm
-
25250000741 Screw-Torx Button Head M4 X 8Screw-Torx Button Head M4 X 8
-
26710004904 Connector PlugConnector Plug
-
27515177125 Compressor Module. Model SECompressor Module. Model SE
-
28515177289 Ground WireGround Wire
-
29515177272 CapacitorCapacitor
-
30515176607 Capacitor SupportCapacitor Support
-
31515176605 Capacitor HarnessCapacitor Harness
-
32250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
33250200026 Lock washerLock washer
-
34516006206 Capacitor DecalCapacitor Decal
-
35515177193 CapCap
-
36415129998 Dual Thermocouple Module. Model 800R E-TECDual Thermocouple Module. Model 800R E-TEC
-
37514055100 Tab Lock. Model 800R E-TECTab Lock. Model 800R E-TEC
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
38293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
39517304194 RH Headlamp Ass'y. Includes 39 To 43RH Headlamp Ass'y. Includes 39 To 43
-
39517304195 LH Headlamp Ass'y. Includes 39 To 43LH Headlamp Ass'y. Includes 39 To 43
-
40515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
42515176498 CapCap
-
43515176499 CoverCover
-
44250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
45250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
46293740059 VelcroVelcro
