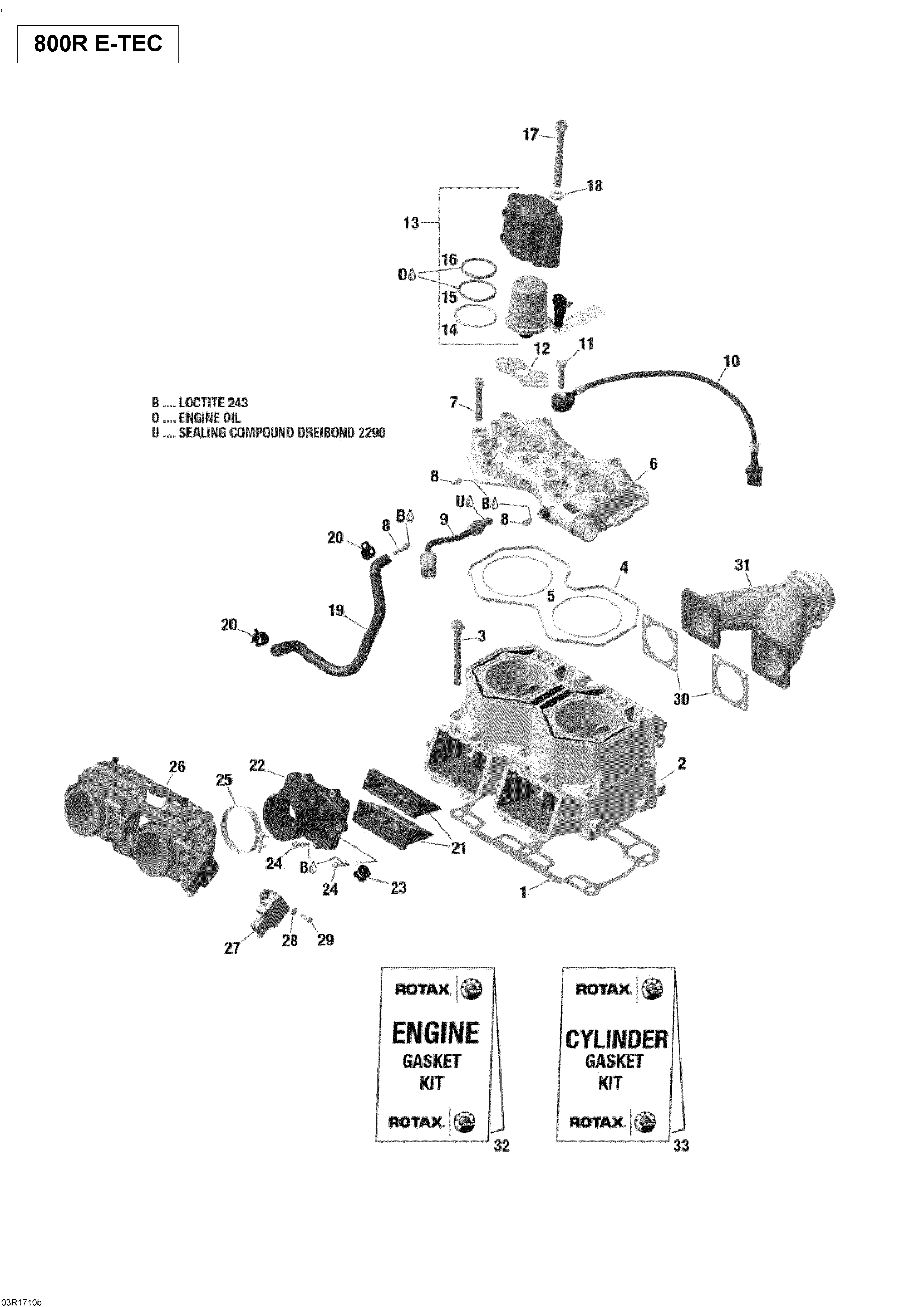

01- Cylinder And Cylinder Head - 800R E-TEC для BRP Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME - 2017
-
№АртикулНазвание
-
1420430080 Double Gasket 0.5 mm. Included In Gasket KitDouble Gasket 0.5 mm. Included In Gasket Kit
-
1420430081 Double Gasket 0.6 mm. Included In Gasket KitDouble Gasket 0.6 mm. Included In Gasket Kit
-
1420430082 Double Gasket 0.7 mm. Included In Gasket KitDouble Gasket 0.7 mm. Included In Gasket Kit
-
1420430083 Double Gasket 0.8 mm. Included In Gasket KitDouble Gasket 0.8 mm. Included In Gasket Kit
-
1420430084 Double Gasket 0.9 mm. Included In Gasket KitDouble Gasket 0.9 mm. Included In Gasket Kit
-
2420413041 CylinderCylinder
-
3420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
4420430040 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
5420931410 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
6420623304 Head Cylinder CoverHead Cylinder Cover
-
7420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
8420924724 Hose NippleHose Nipple
-
9515177813 Temperature Sensor. Includes 9a to 9cTemperature Sensor. Includes 9a to 9c
-
10270000484 Noise SensorNoise Sensor
-
11420940492 Hex. Screw M8 x 35Hex. Screw M8 x 35
-
12420430930 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
13512061054 Fuel Injector. Includes 13 To 16Fuel Injector. Includes 13 To 16
-
14415129497 Crush RingCrush Ring
-
15415129498 O-RingO-Ring
-
16415129499 O-RingO-Ring
-
17420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
18420927410 Flat Washer M10Flat Washer M10
-
19420460867 Molded HoseMolded Hose
-
20420853511 ClampClamp
-
21420924798 Reed Valve Ass'yReed Valve Ass'y
-
22420867333 Intake SocketIntake Socket
-
23420851250 ClampClamp
-
24420841550 Tapping Screw M5 X 22Tapping Screw M5 X 22
-
25420851815 ClampClamp
-
26420889202 Throttle BodyThrottle Body
-
27420866120 Position SensorPosition Sensor
-
28234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
29208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
30420430482 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
31420673373 Exhaust ManifoldExhaust Manifold
-
32420893500 Gasket Set, EngineGasket Set, Engine
-
33420893505 Gasket Set, CylinderGasket Set, Cylinder
