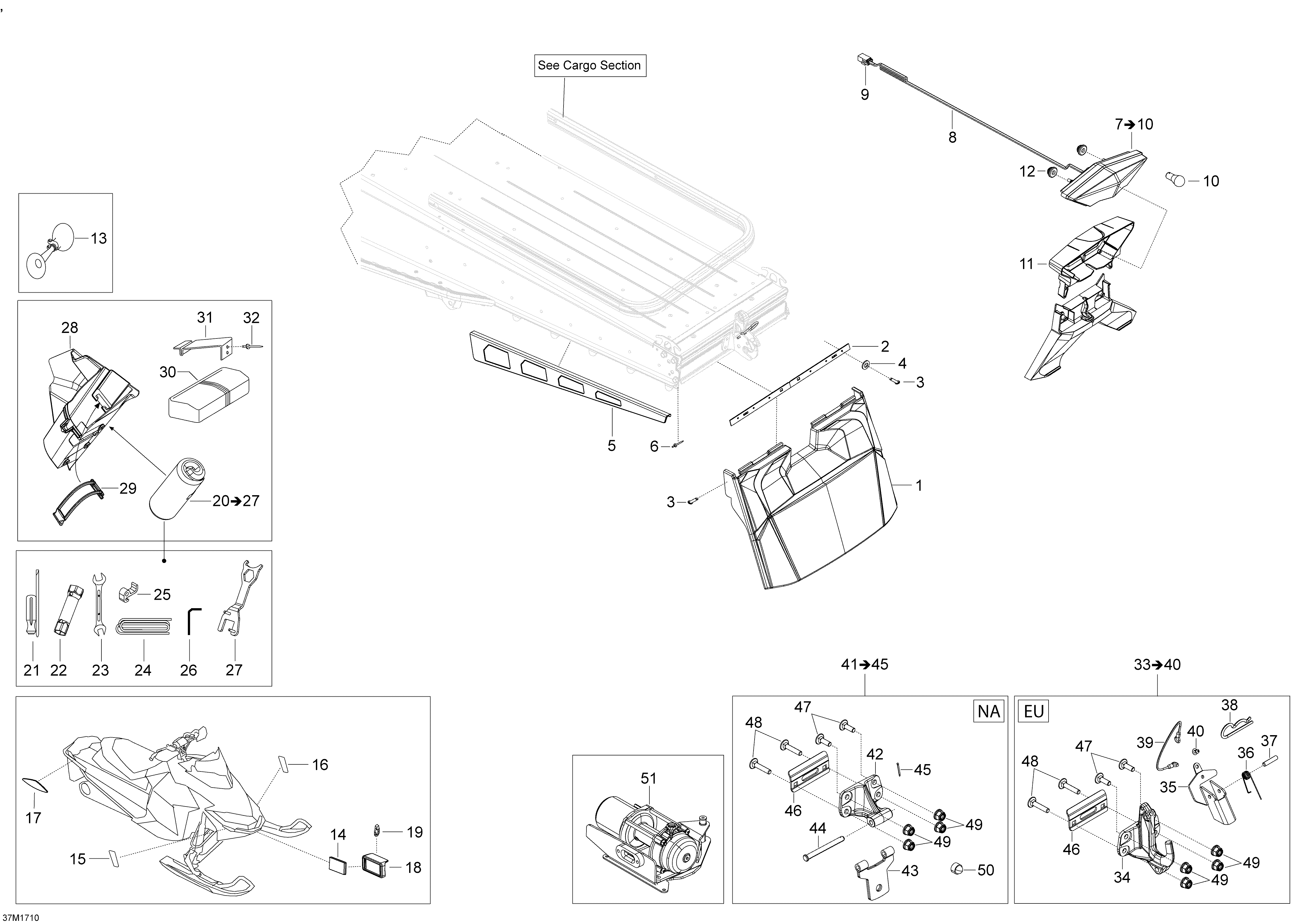

09- Utilities для BRP Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME - 2017

  • №
    Артикул
    Название
  • 1
    520001410 Snow Guard. Model Europe
    Snow Guard. Model Europe
  • 1
    520001406 Snow Guard. Model North America
    Snow Guard. Model North America
  • 2
    520001021 Plate
    Plate
  • 3
    250000676 Forming Screw M5 x 16
    Forming Screw M5 x 16
  • 4
    250200025 Washer M5
    Washer M5
  • 5
    520000693 RH Protector
    RH Protector
  • 5
    520000694 LH Protector
    LH Protector
  • 6
    293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT
    Rivet Hucklok 4,8 mm HKLP-R6-5GAT
  • 7
    520000848 Rear Light. Includes 7 To 10
    Rear Light. Includes 7 To 10
  • 8
    520000849 Rear Wiring Harness
    Rear Wiring Harness
  • 9
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 10
    520000758 Bulb
    Bulb
  • 11
    511000764 Rear Light Cover
    Rear Light Cover
  • 12
    705003666 Rubber Grommet
    Rubber Grommet
  • 13
    549011291 Horn. Model Europe
    Horn. Model Europe
  • 14
    21118 Reflector (Bright). Model Europe
    Reflector (Bright). Model Europe
  • 15
    520001600 Yellow RH Reflector. Model LE, Extreme
    Yellow RH Reflector. Model LE, Extreme
  • 16
    520001601 Yellow LH Reflector. Model LE, Extreme
    Yellow LH Reflector. Model LE, Extreme
  • 17
    705002423 Amber Lateral Reflector. Model Europe
    Amber Lateral Reflector. Model Europe
  • 17
    705003412 Red Lateral Reflector. Model North America
    Red Lateral Reflector. Model North America
  • 18
    520000871 Reflector Support. Model Europe
    Reflector Support. Model Europe
  • 19
    27120 Tie Rap. Model Europe
    Tie Rap. Model Europe
  • 20
    520001593 Tools Kit. Includes 20 To 27
    Tools Kit. Includes 20 To 27
  • 21
    529000004 Screw Driver
    Screw Driver
  • 22
    529000046 Set Key, 16/21 mm
    Set Key, 16/21 mm
  • 23
    529000002 Fork Wrench, 10/13 mm
    Fork Wrench, 10/13 mm
  • 24
    412500200 Starter Rope, Meter
    Starter Rope, Meter
  • 25
    529000060 Starter Grip
    Starter Grip
  • 26
    520001142 Spacing Tool
    Spacing Tool
  • 27
    520001499 Wrench
    Wrench
  • 28
    520000894 Tool Kit Rack. Model LE, SE
    Tool Kit Rack. Model LE, SE
  • 29
    520000528 Latch. Model LE, SE
    Latch. Model LE, SE
  • 30
    708200043 Tool Box. Model Extreme
    Tool Box. Model Extreme
  • 31
    5346728 Tool Kit Rack. Model Extreme
    Tool Kit Rack. Model Extreme
  • 32
    36108 Rivet. Model Extreme
    Rivet. Model Extreme
  • 33
    520001475 Hitch Ass'y. Model Europe. Includes 33 To 40
    Hitch Ass'y. Model Europe. Includes 33 To 40
  • 37
    41012 Pin
    Pin
  • 38
    41029 Hair pin
    Hair pin
  • 40
    390909100 Avex Rivet
    Avex Rivet
  • 41
    520001398 Hitch Ass'y. Model North America. Includes 41 To 45
    Hitch Ass'y. Model North America. Includes 41 To 45
  • 44
    560309200 Pin-Retainer
    Pin-Retainer
  • 45
    41031 Cotter Pin
    Cotter Pin
  • 46
    520000727 Plate
    Plate
  • 47
    207782544 Carriage Bolt, M8 X 25
    Carriage Bolt, M8 X 25
  • 48
    207784044 Bolt Carriage M8 X 40
    Bolt Carriage M8 X 40
  • 49
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 50
    28056 Cover. Model North America
    Cover. Model North America
  • 51
    619400069 Winch Kit. Model SE
    Winch Kit. Model SE
  • 52
    705011222 Amber Reflector. Model SE
    Amber Reflector. Model SE
  • 53
    520001744 LH Reflector Mount. Model SE
    LH Reflector Mount. Model SE
  • 53
    520001746 RH Reflector Mount. Model SE
    RH Reflector Mount. Model SE
  • 54
    205082044 Socket Head Screw M8 X 20. Model SE
    Socket Head Screw M8 X 20. Model SE
  • 55
    233281414 Hex. Flanged Elastic Nut M8. Model SE
    Hex. Flanged Elastic Nut M8. Model SE
  • 56
    28056 Cover. Model SE
    Cover. Model SE
  • 57
    233251494 Elastic Flanged Nut M5. Model SE
    Elastic Flanged Nut M5. Model SE
