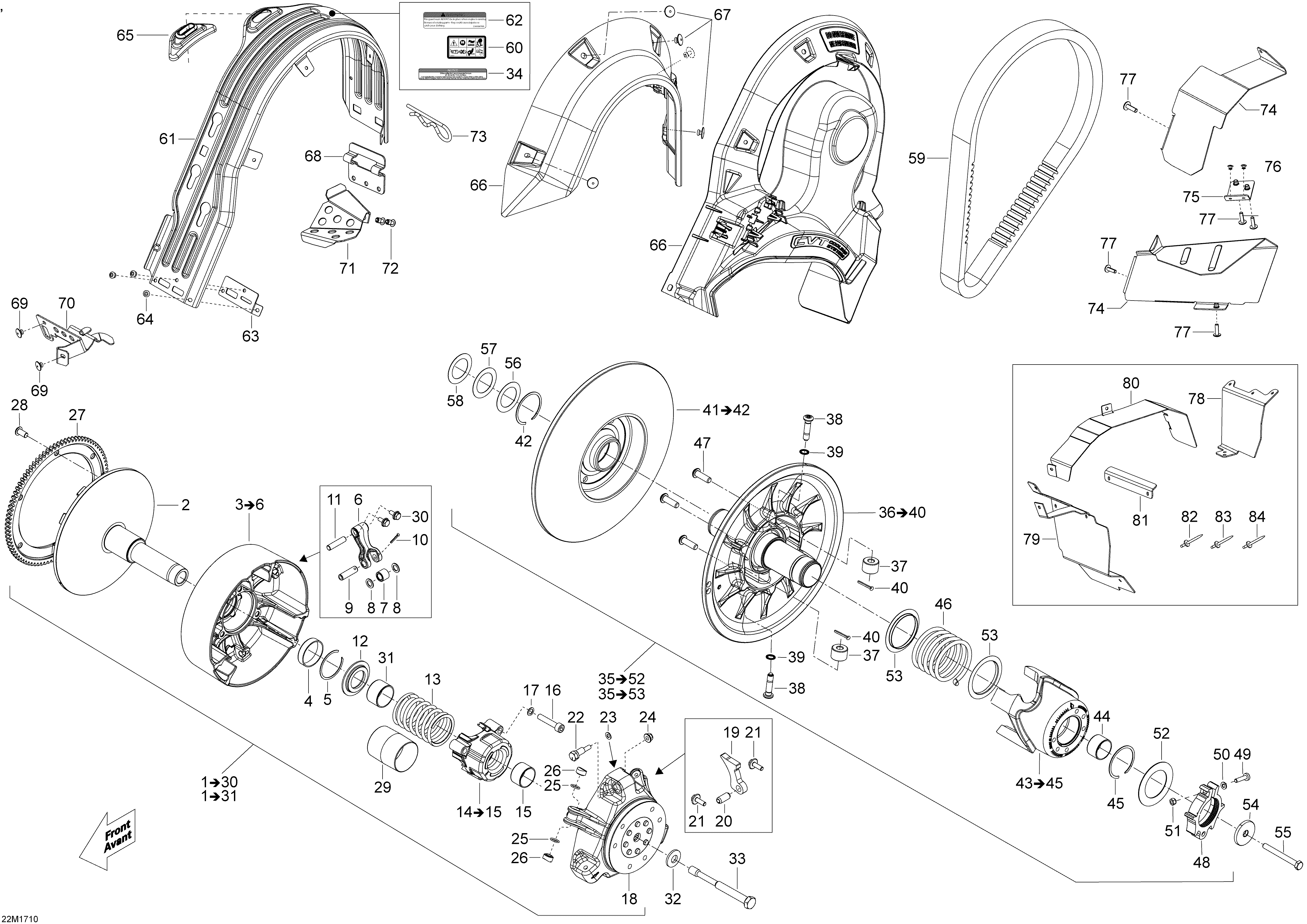

05- Pulley System для BRP Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME - 2017

№

Артикул

Название
2

417222937 Fixed Flange Ass'y. Model 600HO E-TEC

Fixed Flange Ass'y. Model 600HO E-TEC
2

417223232 Fixed Flange Ass'y. Model 800R E-TEC

Fixed Flange Ass'y. Model 800R E-TEC
3

417222181 Sliding Flange Ass'y. Model 600HO E-TEC. Includes 3 To 5

Sliding Flange Ass'y. Model 600HO E-TEC. Includes 3 To 5
3

417223444 Sliding Flange Ass'y. Model 800R E-TEC. Includes 3 To 5

Sliding Flange Ass'y. Model 800R E-TEC. Includes 3 To 5
4

417222758 Bushing. Model 600HO E-TEC

Bushing. Model 600HO E-TEC
4

417223086 Bushing. Model 800R E-TEC

Bushing. Model 800R E-TEC
5

293370037 Circlip. Model 600HO E-TEC

Circlip. Model 600HO E-TEC
5

293370071 Circlip. Model 800R E-TEC

Circlip. Model 800R E-TEC
6

417222671 Lever

Lever
7

417222947 Roller

Roller
8

417004302 Stopper Washer

Stopper Washer
9

417222594 Pin

Pin
10

250400060 Cotter Pin

Cotter Pin
11

417223164 Lever Axle

Lever Axle
12

417222312 Spring Seat

Spring Seat
13

414993000 Tra Spring. Model 600HO E-TEC

Tra Spring. Model 600HO E-TEC
13

414742100 Spring Yellow/Green. Model 800R E-TEC, Europe

Spring Yellow/Green. Model 800R E-TEC, Europe
13

415034900 Spring, Violet/blue. Model 800R E-TEC, North America

Spring, Violet/blue. Model 800R E-TEC, North America
14

417007500 Spring Cover Ass'y. Model 600HO E-TEC. Includes 14 To 15

Spring Cover Ass'y. Model 600HO E-TEC. Includes 14 To 15
14

417222759 Spring Cover Ass'y. Model 800R E-TEC. Includes 14 To 15

Spring Cover Ass'y. Model 800R E-TEC. Includes 14 To 15
15

417009204 Bushing

Bushing
16

205084044 Socket Head Screw M8 X 40

Socket Head Screw M8 X 40
17

250200009 Lock Washer 8 mm

Lock Washer 8 mm
18

417223669 Governor Cup Ass'y. Model 600HO E-TEC

Governor Cup Ass'y. Model 600HO E-TEC
18

417223666 Governor Cup Ass'y. Model 800R E-TEC

Governor Cup Ass'y. Model 800R E-TEC
19

417222444 Ramp 600. Model 600HO E-TEC

Ramp 600. Model 600HO E-TEC
19

417222508 Ramp 413. Model 800R E-TEC, Europe

Ramp 413. Model 800R E-TEC, Europe
19

861805513 Ramp Kit 450. Model 800R E-TEC, North America

Ramp Kit 450. Model 800R E-TEC, North America
20

250400050 Spring Pin M10 X 22

Spring Pin M10 X 22
21

250000418 Flanged Hex. Screw M6 X 18, Scotch Grip

Flanged Hex. Screw M6 X 18, Scotch Grip
22

417223501 Calibration Screw

Calibration Screw
23

417005600 Washer

Washer
24

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
25

732401030 O-Ring

O-Ring
26

417223271 Slider Shoe

Slider Shoe
27

417223738 Ring Gear. Model 600HO E-TEC

Ring Gear. Model 600HO E-TEC
27

417223739 Ring Gear. Model 800R E-TEC

Ring Gear. Model 800R E-TEC
28

250000533 Hex. Flange Screw M8 X 16

Hex. Flange Screw M8 X 16
29

417009205 Guard

Guard
30

250000412 Flanged Hex. Screw M6 X 12, Scotch Grip. Model 600HO E-TEC

Flanged Hex. Screw M6 X 12, Scotch Grip. Model 600HO E-TEC
30

250000416 Serrated Hex. Flange Bolt M6. Model 800R E-TEC

Serrated Hex. Flange Bolt M6. Model 800R E-TEC
31

417223471 Bushing. Model 800R E-TEC

Bushing. Model 800R E-TEC
32

250200144 Conical Spring Washer M14

Conical Spring Washer M14
33

417120000 Drive Pulley Bolt. Model 600HO E-TEC

Drive Pulley Bolt. Model 600HO E-TEC
33

417300409 TRA 7 Bolt (M14 X 153.5 mm). Model 800R E-TEC

TRA 7 Bolt (M14 X 153.5 mm). Model 800R E-TEC
34

516005503 Decal, English

Decal, English
36

417127466 Fixed Flange Ass'y. Model 600HO E-TEC. Includes 36 To 40

Fixed Flange Ass'y. Model 600HO E-TEC. Includes 36 To 40
36

417127433 Fixed Flange Ass'y. Model 800R E-TEC. Includes 36 To 40

Fixed Flange Ass'y. Model 800R E-TEC. Includes 36 To 40
37

417127189 Roller

Roller
38

417127294 Pivot Stud

Pivot Stud
39

250200009 Lock Washer 8 mm

Lock Washer 8 mm
40

250400063 Spring Pin M3 X 30

Spring Pin M3 X 30
41

417127366 Slider Flange Ass'y. Includes 41 To 42

Slider Flange Ass'y. Includes 41 To 42
42

293370049 Circlip

Circlip
43

417127411 Cam Ass'y. Includes 43 To 45

Cam Ass'y. Includes 43 To 45
44

417127318 Bushing

Bushing
45

293370049 Circlip. Includes 38 to 43

Circlip. Includes 38 to 43
46

417127243 Spring, White. Model 600HO E-TEC

Spring, White. Model 600HO E-TEC
46

417127039 Black Spring. Model 800R E-TEC

Black Spring. Model 800R E-TEC
47

250000757 Screw-Torx Button Head M8 X 25 S.Gr

Screw-Torx Button Head M8 X 25 S.Gr
48

415129604 Calibration Ass'y

Calibration Ass'y
49

205052544 Socket Screw M5 X 25

Socket Screw M5 X 25
50

234051410 Flat Washer M5

Flat Washer M5
51

232551414 Elastic Stop Nut M5. Includes 44 to 45

Elastic Stop Nut M5. Includes 44 to 45
52

417127155 Washer. Includes 46 to 47

Washer. Includes 46 to 47
53

417127116 Swivel Abutment. Model 800R E-TEC

Swivel Abutment. Model 800R E-TEC
54

517302322 Strength Washer

Strength Washer
55

207287544 Hex. Cap Screw M8 X 75

Hex. Cap Screw M8 X 75
56

417300252 Spacer. (Adjustment Part, Use If Needed)

Spacer. (Adjustment Part, Use If Needed)
57

417300265 Spacer. (Adjustment Part, Use If Needed)

Spacer. (Adjustment Part, Use If Needed)
58

504112000 Shim. (Adjustment Part, Use If Needed)

Shim. (Adjustment Part, Use If Needed)
59

417300383 Drive Belt. Model 600HO E-TEC

Drive Belt. Model 600HO E-TEC
59

417300391 Belt. Model 800R E-TEC

Belt. Model 800R E-TEC
60

516003919 Warning Decal. Model Europe

Warning Decal. Model Europe
61

417300357 Belt Guard

Belt Guard
62

516006900 Security Label, Belt Guard

Security Label, Belt Guard
63

417300380 Reinforcement

Reinforcement
64

390909200 Avex Rivet

Avex Rivet
65

417300381 Guide

Guide
66

417300356 Side Protector. Model 600HO E-TEC

Side Protector. Model 600HO E-TEC
66

417300441 CVT Air Duct. Model 800R E-TEC

CVT Air Duct. Model 800R E-TEC
67

293150103 Black Pop Rivet 3/16''

Black Pop Rivet 3/16''
68

417300363 Belt Guard Bracket

Belt Guard Bracket
69

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''
70

417300364 Belt Guard Bracket

Belt Guard Bracket
71

518325626 Brake Hose Cover

Brake Hose Cover
72

293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT

Rivet Hucklok 4,8 mm HKLP-R6-5GAT
73

114045200 Hair Pin

Hair Pin
74

417300468 Air Duct. Model 600HO E-TEC

Air Duct. Model 600HO E-TEC
74

417300461 Air Duct. Model 800R E-TEC

Air Duct. Model 800R E-TEC
75

417300497 Air Duct Bracket. Model 800R E-TEC

Air Duct Bracket. Model 800R E-TEC
76

293150102 Rivet 3/16''. Model 800R E-TEC

Rivet 3/16''. Model 800R E-TEC
77

250000722 Torx Screw M6 X 20. Model 600HO E-TEC

Torx Screw M6 X 20. Model 600HO E-TEC
77

250000722 Torx Screw M6 X 20. Model 800R E-TEC

Torx Screw M6 X 20. Model 800R E-TEC
78

417300518 CVT Air Duct Extreme. Model North America

CVT Air Duct Extreme. Model North America
79

417300519 CVT Air Duct Extreme. Model North America

CVT Air Duct Extreme. Model North America
80

417300520 CVT Air Duct Extreme. Model North America

CVT Air Duct Extreme. Model North America
81

417300521 CVT Air Duct Extreme. Model North America

CVT Air Duct Extreme. Model North America
82

390909100 Avex Rivet. Model North America

Avex Rivet. Model North America
83

390909200 Avex Rivet. Model North America

Avex Rivet. Model North America
84

293150103 Black Pop Rivet 3/16''. Model North America

Black Pop Rivet 3/16''. Model North America
